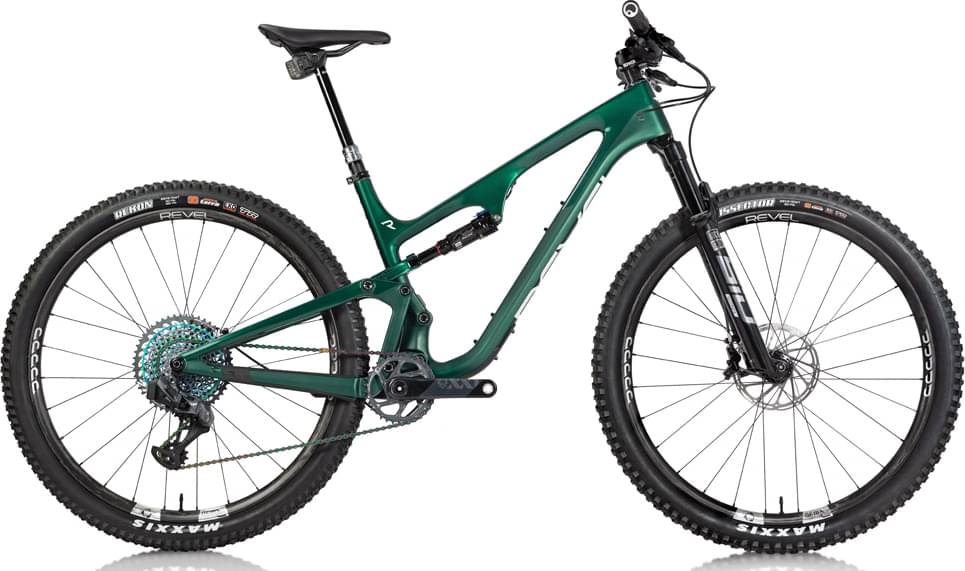

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 115mm -
Fork RockShox SID
-
Groupset GX Eagle -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox SID Luxe Select 120mm (*upgrade available)
Rear Shock
RockShox SID Luxe Select (*upgrade available)
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM GX Eagle 10-52
Crank
SRAM GX Eagle alloy DUB 170mm
Bottom Bracket
Threaded (73mm English threaded)
Chain
SRAM GX Eagle
Wheels
Rims
Crank Bros Synthesis Alloy XCT I9 1/1 29 (*upgrades available)
Tires
Maxxis Dissector 29? x 2.4? EXO Front, Maxxis Rekon 29? x 2.4? EXO Rear
Brakes
Brakes
SRAM Level TL
Disk Rotors
SRAM Centerline 180mm front / 160mm rear
Cockpit
Stem
Truvativ Descendant 35 x 40mm
Handlebar
Truvativ Descendant Alloy 35 x 800mm
Grips
Lizard Skins Charger Evo Grip Black
Headset
CaneCreek 40-series IS42/IS52
Seat
Saddle
WTB Volt CroMo Black
Seatpost
Crank Brothers Highline 7 31.6 x 125, 150 or 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 713 mm | 737 mm | 761 mm | 790 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 108 mm | 108 mm | 108 mm | 108 mm |
| Stack | 607 mm | 616 mm | 626 mm | 636 mm |
| Reach | 437 mm | 460 mm | 480 mm | 505 mm |
| Top Tube Length | 601 mm | 623 mm | 646 mm | 674 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 373 mm | 403 mm | 439 mm | 457 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 95 mm | 105 mm | 116 mm | 127 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1153 mm | 1177 mm | 1201 mm | 1230 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Ranger – GX Eagle completes the Revel Ranger model. 26 bikes variations carry this model name so far. Take a sneak peek at all Revel Ranger bikes models from 2022, by clicking here.
Model range prices
Revel Ranger – GX Eagle 2022 is the most economical model, with a starting price of 5799$. Revel Ranger – XX1 Eagle AXS 2022 on the other hand costs 10999$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Revel Ranger – GX Eagle price was 5799$. Comparing this to the average Crosscountry bike price, we see that the price is 204.41% higher.
Ranger – GX Eagle components
Fork
The Ranger – GX Eagle comes factory-installed with the RockShox SID fork. This has a travel range of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Revel Ranger – GX Eagle bike has the RockShox SID Luxe Select (*upgrade available) model installed, and has a travel of 115mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The Ranger – GX Eagle 2022 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ranger – GX Eagle comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Revel Ranger – GX Eagle bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Revel model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
