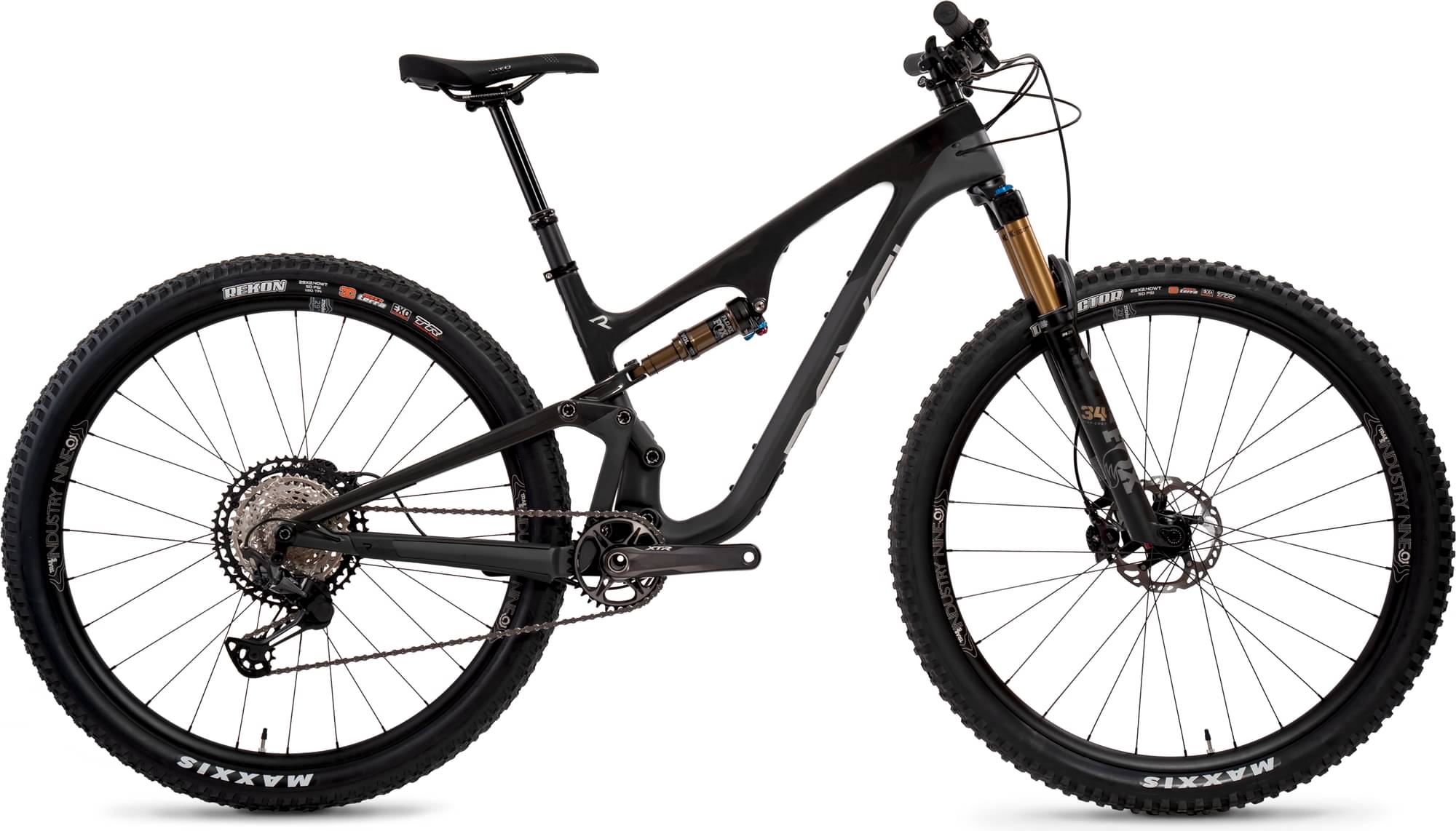

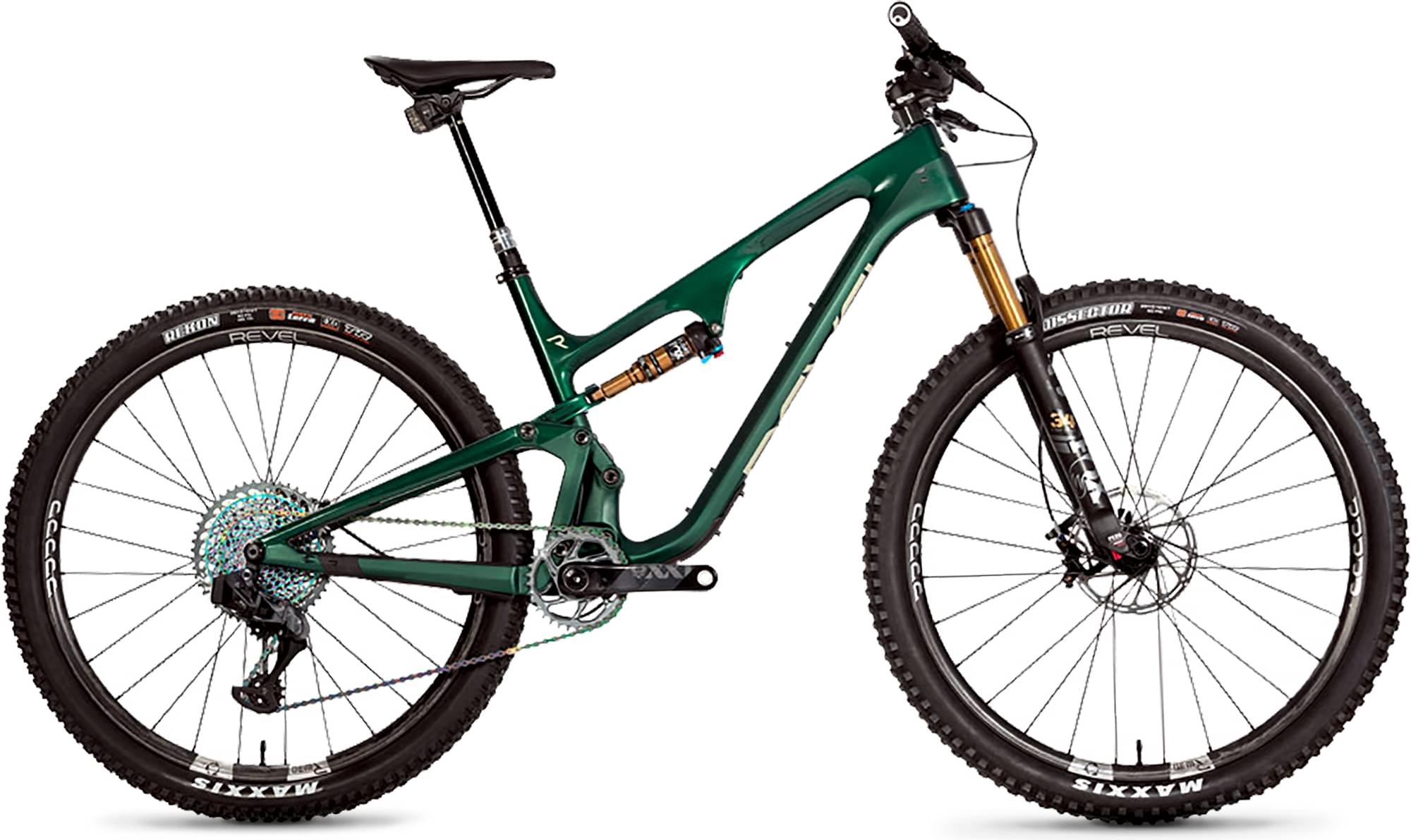

Revel Ranger v1 XX1 Eagle AXS 2023
2023 Mountain
Estimate price |
10,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 115mm -
Fork RockShox SID Ultimate
-
Groupset XX1 Eagle AXS, SRAM -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
167cm - 177cm
LG
175cm - 188cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel Ranger 29? 115mm Travel
Suspension Fork
RockShox SID Ultimate 120mm
Rear Shock
RockShox SID Luxe Ultimate
Drivetrain
Rear Derailleur
SRAM XX1 AXS Eagle
Shift Levers
SRAM AXS Controller
Cassette
SRAM XX1 Eagle 10-52
Crank
SRAM XX1 Eagle AXS Carbon DUB 170mm 32t
Bottom Bracket
SRAM DUB BSA
Chain
SRAM XX1 Eagle
Wheels
Rims
Revel RW30 28H Rims, Industry Nine 1/1 Hubs, (*upgrade available)
Tires
Maxxis Dissector 29? x 2.4? EXO Front, Maxxis Rekon 29? x 2.4? EXO Rear
Brakes
Brakes
SRAM G2 Ultimate
Cockpit
Stem
RaceFace Turbine R 35 x 40mm
Handlebar
RaceFace NEXT R 35, 800mm x 20mm Rise
Grips
Lizard Skins Charger Evo Grip Black
Headset
Cane Creek 40-series
Seat
Saddle
WTB Volt CroMo Black
Seatpost
Rockshox Reverb Stealth AXS, SM (31.6mm x 125mm), MD (31.6mm x 150mm), LG/XL (31.6mm x 170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 713 mm | 737 mm | 761 mm | 790 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 108 mm | 108 mm | 108 mm | 108 mm |
| Stack | 607 mm | 616 mm | 626 mm | 636 mm |
| Reach | 437 mm | 460 mm | 480 mm | 505 mm |
| Top Tube Length | 601 mm | 623 mm | 646 mm | 674 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 373 mm | 403 mm | 439 mm | 457 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 95 mm | 105 mm | 116 mm | 127 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1153 mm | 1177 mm | 1201 mm | 1230 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 706 mm | 706 mm | 706 mm | 707 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 167 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 200 cm |
About this model
Ranger v1 XX1 Eagle AXS is part of the Revel Ranger model. There are 26 bikes that carry this model name. You can easily view all of the Revel Ranger bikes models from 2023, here.
Model range prices
Revel Ranger v1 GX Eagle 2023 is the most economical model, with a starting price of 5499$. Revel Ranger XX Eagle Transmission 2023 on the other hand costs 10999$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Revel released this model in 2023, its price was 10499$. If we compare this with the average Crosscountry bike cost we notice that the price is 451.13% more expensive.
Ranger v1 XX1 Eagle AXS components
Fork
This bike has the RockShox SID Ultimate fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Revel Ranger v1 XX1 Eagle AXS bike has the RockShox SID Luxe Ultimate model installed, and has a travel of 115mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the Ranger v1 XX1 Eagle AXS bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Revel Ranger v1 XX1 Eagle AXS has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 154 cm – 200 cm (5.05 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
Revel Ranger v1 XX1 Eagle AXS comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
