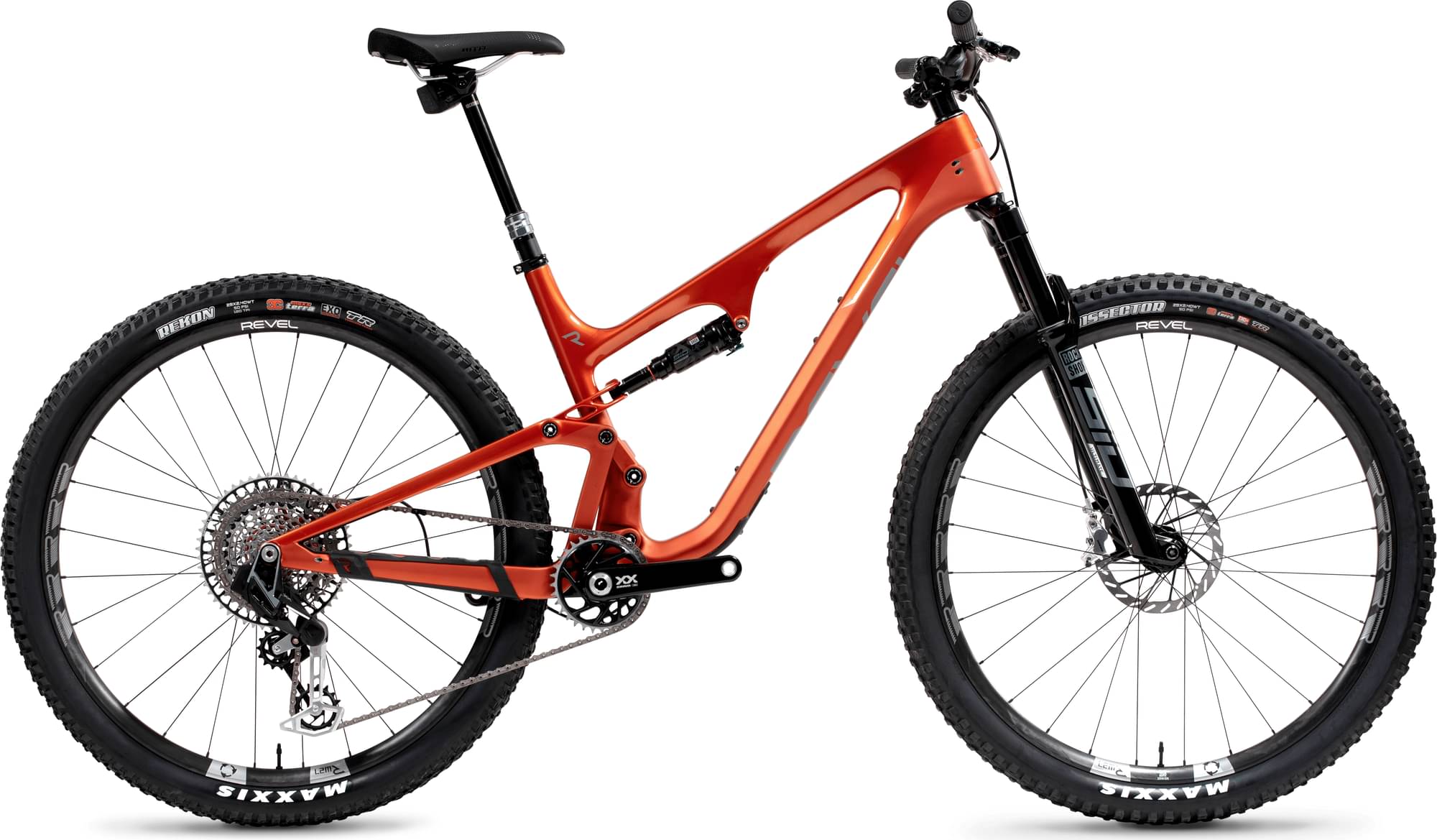

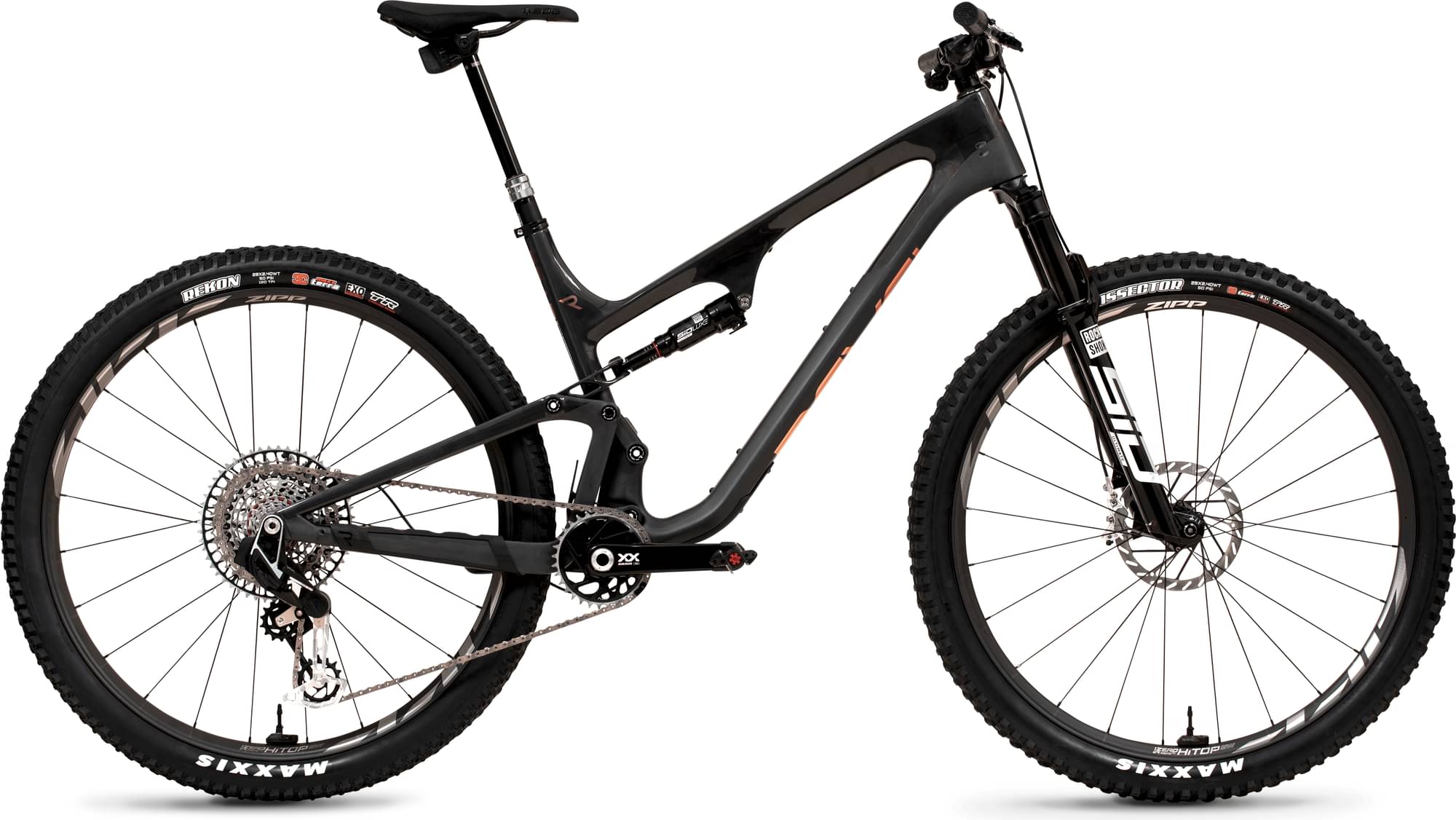

Revel Ranger X0 Eagle Transmission 2023
2023 Mountain
Estimate price |
7,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 115mm -
Fork RockShox SID Ultimate
-
Groupset X0, SRAM -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
167cm - 177cm
LG
175cm - 188cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revel Ranger 29? 115mm Travel
Suspension Fork
RockShox SID Ultimate 120mm
Rear Shock
RockShox SID Luxe Ultimate
Drivetrain
Rear Derailleur
SRAM X0 ET
Shift Levers
SRAM AXS Shifter Pod Ultimate
Cassette
SRAM X0 ET T-Type
Crank
SRAM X0 Eagle T-Type 170mm 32t
Bottom Bracket
SRAM DUB BSA Wide
Chain
SRAM X0 ET T-Type
Wheels
Rims
Industry Nine Trail S, 1/1 Hubs, (*upgrade available)
Tires
Maxxis Dissector 29? x 2.4? EXO Front, Maxxis Rekon 29? x 2.4? EXO Rear
Brakes
Brakes
SRAM Level Silver Stealth
Cockpit
Stem
RaceFace Turbine R 35 x 40mm
Handlebar
RaceFace NEXT R 35, 800mm x 20mm Rise
Grips
Lizard Skins Charger Evo Grip Black
Headset
Cane Creek 40-series
Seat
Saddle
SDG Bel-Air Lux-Alloy
Seatpost
Crank Brothers Highline 7, SM (31.6mm x 125mm), MD (31.6mm x 150mm), LG/XL (31.6mm x 170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.34 mm | 1.3 mm | 1.26 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 713 mm | 737 mm | 761 mm | 790 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 108 mm | 108 mm | 108 mm | 108 mm |
| Stack | 607 mm | 616 mm | 626 mm | 636 mm |
| Reach | 437 mm | 460 mm | 480 mm | 505 mm |
| Top Tube Length | 601 mm | 623 mm | 646 mm | 674 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 373 mm | 403 mm | 439 mm | 457 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 95 mm | 105 mm | 116 mm | 127 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1153 mm | 1177 mm | 1201 mm | 1230 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 706 mm | 706 mm | 706 mm | 707 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 167 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 177 cm | 188 cm | 200 cm |
Model Overview
Ranger X0 Eagle Transmission completes the Revel Ranger model. Revel released 26 bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Revel Ranger v1 GX Eagle 2023 is the most affordable bike of this model and has a price of 5499$. On the other hand, Revel Ranger XX Eagle Transmission 2023, is the most expensive and costs 10999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 7999$. In conclusion, this bike price is 319.9% more expensive than the price of the average Crosscountry bike.
Overview of components
Fork
The Ranger X0 Eagle Transmission comes factory-installed with the RockShox SID Ultimate fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Ranger X0 Eagle Transmission has a rear shock with a travel of 115mm. The model RockShox SID Luxe Ultimate is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Ranger X0 Eagle Transmission model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Revel Ranger X0 Eagle Transmission has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Revel Ranger X0 Eagle Transmission bike has 4 sizes, in the range of 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Revel model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
