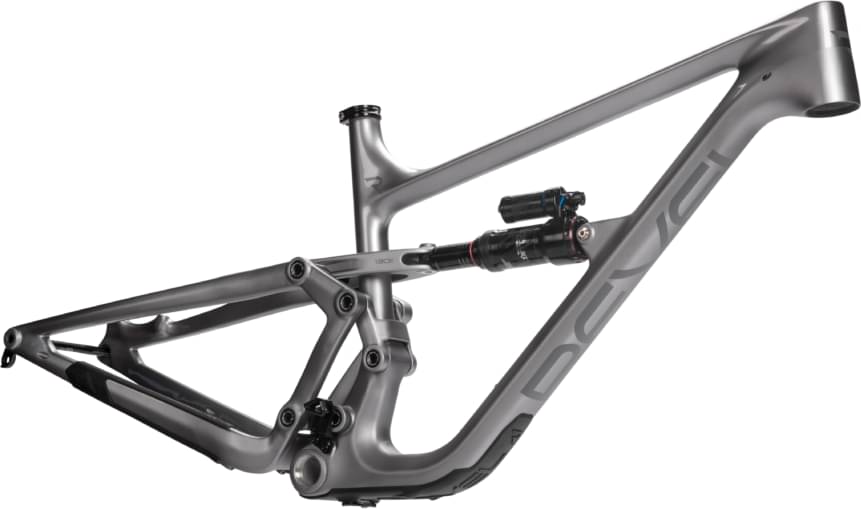

Revel Rascal – Frame and Fork 2022
2022 Mountain
Estimate price |
3,999$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 130mm -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Bottom Bracket
Threaded (73mm English threaded)
Chain Guide
Custom Revel guide included
Brakes
Brakes
180mm post mount / 203mm max
Seat
Seatpost
31.6mm (use our size guide to choose the best dropper height!)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.37 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 752 mm | 772 mm | 790 mm | 817 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 602 mm | 612 mm | 620 mm | 630 mm |
| Reach | 426 mm | 446 mm | 466 mm | 491 mm |
| Top Tube Length | 590 mm | 612 mm | 635 mm | 662 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 385 mm | 415 mm | 445 mm | 475 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 96 mm | 107 mm | 116 mm | 127 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1184 mm | 1204 mm | 1222 mm | 1249 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Rascal – Frame and Fork belongs to the Revel Rascal model. 28 frames variations carry this model name so far. You can easily view all of the Revel Rascal frames models from 2022, here.
Model range prices
The most economical model, the Revel Rascal – Frame 2022 has a starting price of 3499$. Revel Rascal – Frame and Fork 2022 on the other hand is the most expensive at 3999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail frames
If you want to purchase a solid Trail frame, it is important to know that the average cost is 1736$. However, even though the average price of a Trail frame is lower, you might still be able to get a top-quality frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
At the moment of the release date, Revel Rascal – Frame and Fork price was 3999$. Comparing the average cost of a Trail frame to this one, you will see that Rascal – Frame and Fork price is 130.36% higher.
Rascal – Frame and Fork components
Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Rascal – Frame and Fork comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Revel Rascal – Frame and Fork frame has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the Rascal – Frame and Fork. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
