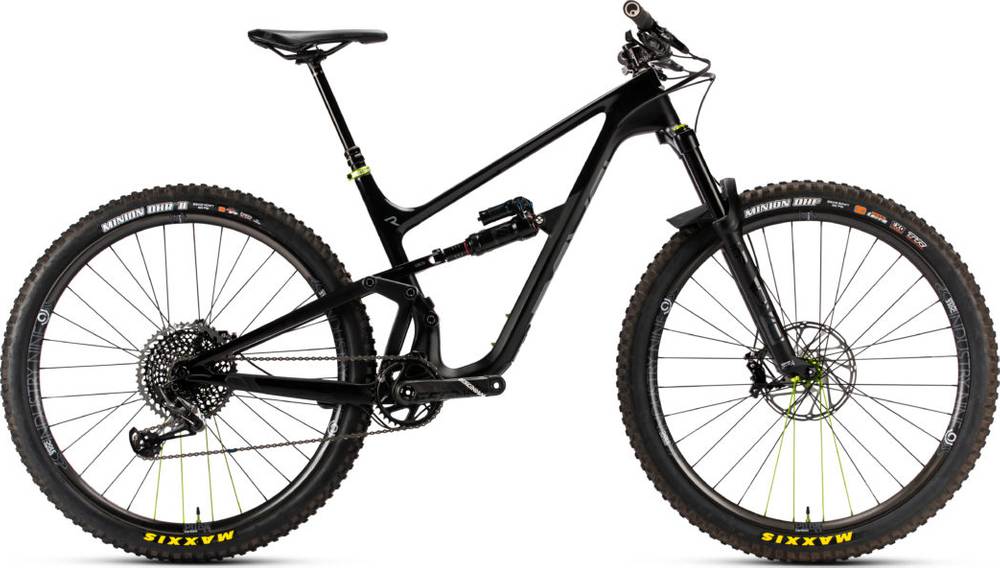

Revel Rascal – X01 Eagle 2019
2019 Mountain
Estimate price |
6,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Pike Ultimate
-
Groupset X01 Eagle, Truvativ Descendant Carbon -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Pike Ultimate RCT3 140mm (Options available at checkout)
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM X01 Eagle
Cassette
SRAM X01 Eagle
Crank
SRAM Descendant Carbon DUB 170mm or 175mm 32t
Bottom Bracket
Threaded (73mm English threaded)
Chain
SRAM X01 Eagle
Chain Guide
Custom Revel guide included
Wheels
Rims
Industry 9 Enduro EN305 29? alloy Wheelset (Options available at checkout)
Tires
Maxxis Minion DHF 29? x 2.5? EXO Front, Maxxis DHR 29? x 2.4? EXO+ Rear (Options available at checkout)
Brakes
Brakes
SRAM Guide RSC
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
Truvativ Descendant 31.8mm x 40mm
Handlebar
ENVE M6 Carbon 31.8mm x 780mm
Grips
Ergon GE1 Black
Headset
CaneCreek 40-series IS42/IS52
Seat
Saddle
Ergon SMA3 Standard Black
Seatpost
Rockshox Reverb Stealth 1x 31.6 x 150mm or 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.37 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 752 mm | 772 mm | 790 mm | 817 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 602 mm | 612 mm | 620 mm | 630 mm |
| Reach | 426 mm | 446 mm | 466 mm | 491 mm |
| Top Tube Length | 590 mm | 612 mm | 635 mm | 662 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 385 mm | 415 mm | 445 mm | 475 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 96 mm | 107 mm | 116 mm | 127 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1184 mm | 1204 mm | 1222 mm | 1249 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Rascal – X01 Eagle completes the Revel Rascal model. There are 28 bikes that carry this model name. You can easily view all of the Revel Rascal bikes models from 2019, here.
Model range prices
Revel Rascal – GX Eagle 2019 is the cheapest bike model and costs 4999$. Revel Rascal – XX1 Eagle AXS ENVE 2019 is the most expensive one and costs 9999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Revel Rascal – X01 Eagle price was 6999$. If we compare this with the average Trail bike cost we notice that the price is 153.4% higher.
Overview of components
Fork
This bike has the RockShox Pike Ultimate fork installed. The fork’s travel is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The Rascal – X01 Eagle 2019 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Rascal – X01 Eagle comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Revel Rascal – X01 Eagle comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
