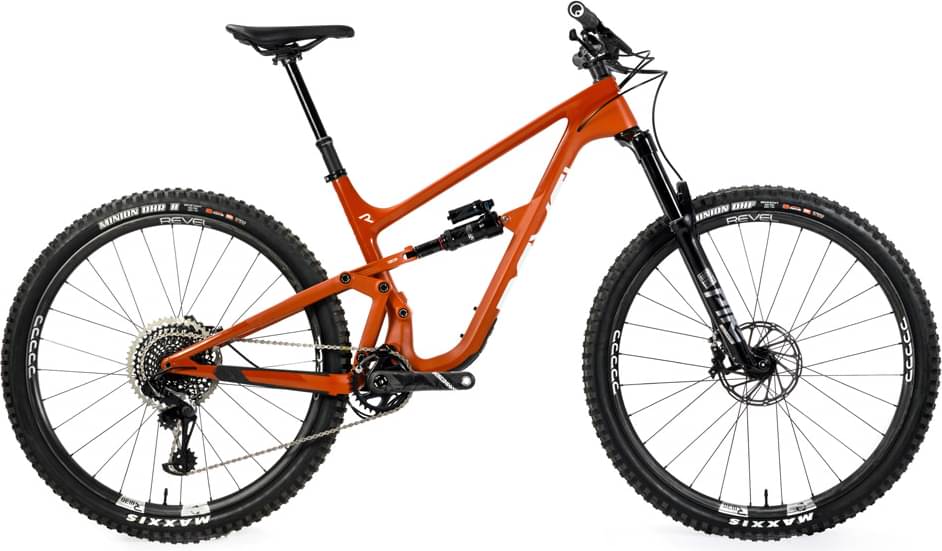

Revel Rascal – XX1 Eagle AXS 2022
2022 Mountain
Estimate price |
10,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Pike Ultimate
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Pike Ultimate RCT3 140mm (*upgrade available)
Rear Shock
RockShox Super Deluxe Ultimate (*upgrade available)
Drivetrain
Rear Derailleur
SRAM XX1 AXS Eagle
Shift Levers
SRAM AXS Controller
Cassette
SRAM XX1 Eagle 10-52
Crank
SRAM XX1 AXS Eagle Carbon DUB 170mm
Bottom Bracket
Threaded (73mm English threaded)
Chain
SRAM XX1 Eagle
Chain Guide
Custom Revel guide included
Wheels
Rims
RW30 Industry 9 Hydra carbon Wheelset
Tires
Maxxis Minion DHF 29? x 2.5? EXO Front, Maxxis Aggressor 29? x 2.3? EXO Rear
Brakes
Brakes
SRAM G2 Ultimate Rainbow
Disk Rotors
SRAM Centerline 180mm front & rear
Cockpit
Stem
RaceFace Turbine R 35 x 40mm
Handlebar
RaceFace NEXT R 35 x 780mm 20mm rise
Grips
Lizard Skins Charger Evo Grip Black
Headset
CaneCreek 40-series IS42/IS52
Seat
Saddle
WTB Volt CroMo Black
Seatpost
Rockshox Reverb Stealth AXS 31.6 x 125, 150 or 170mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.37 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 752 mm | 772 mm | 790 mm | 817 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 602 mm | 612 mm | 620 mm | 630 mm |
| Reach | 426 mm | 446 mm | 466 mm | 491 mm |
| Top Tube Length | 590 mm | 612 mm | 635 mm | 662 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 385 mm | 415 mm | 445 mm | 475 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 96 mm | 107 mm | 116 mm | 127 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1184 mm | 1204 mm | 1222 mm | 1249 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Rascal – XX1 Eagle AXS is a Revel Rascal model. Revel launched 28 bikes of this model so far. Take a sneak peek at all Revel Rascal bikes models from 2022, by clicking here.
Model range prices
Revel Rascal – GX Eagle 2022 is the cheapest bike model and costs 5899$. Revel Rascal – XX1 Eagle AXS 2022 is the most expensive one and costs 10999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Revel Rascal – XX1 Eagle AXS price was 10999$. If we compare this with the average Trail bike cost we notice that the price is 298.23% higher.
Rascal – XX1 Eagle AXS components
Fork
The fork installed on this bike is the RockShox Pike Ultimate model. The travel on this model is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Revel Rascal – XX1 Eagle AXS bike has the RockShox Super Deluxe Ultimate (*upgrade available) model installed, and has a travel of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the Rascal – XX1 Eagle AXS model has 29″ carbon wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Rascal – XX1 Eagle AXS comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
