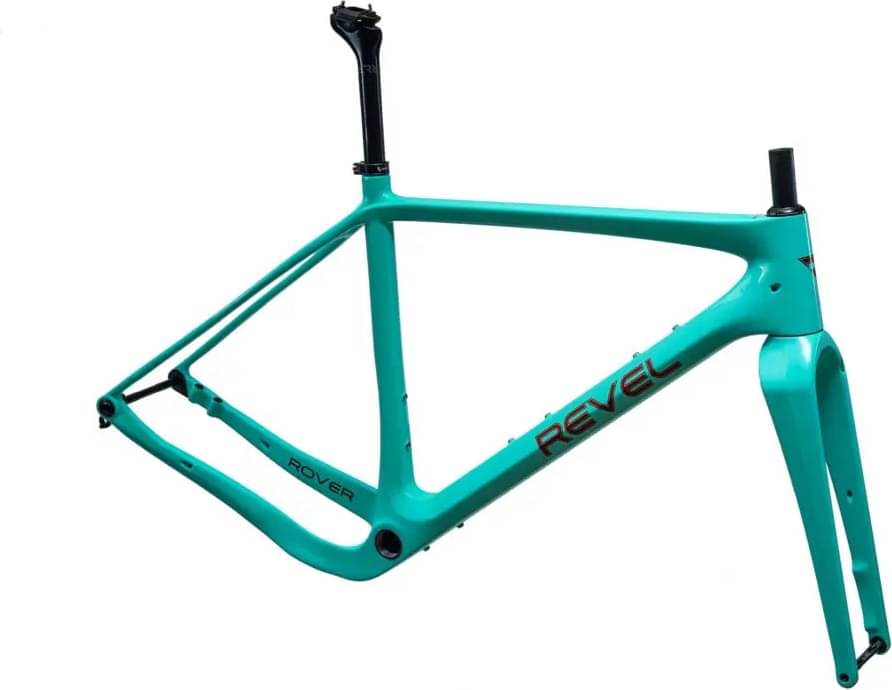

Revel Rover – Frame and Fork 2022
2022 Road
Estimate price |
2,400$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Bottom Bracket
BSA 68mm English Threaded
Brakes
Brakes
140mm mount / 160mm max
Cockpit
Headset
IS42 Upper / IS52 Lower
Seat
Seatpost
* Seatpost pictured NOT included
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.38 mm | 1.4 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 288 mm | 288 mm | 288 mm | 288 mm | 288 mm |
| Front Center | 606 mm | 624 mm | 639 mm | 654 mm | 672 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Stack | 534 mm | 559 mm | 579 mm | 599 mm | 624 mm |
| Reach | 396 mm | 406 mm | 414 mm | 422 mm | 432 mm |
| Top Tube Length | 539 mm | 556 mm | 569 mm | 582 mm | 599 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 450 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 110 mm | 136 mm | 157 mm | 178 mm | 205 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1015 mm | 1033 mm | 1048 mm | 1063 mm | 1081 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
Rover – Frame and Fork belongs to the Revel Rover model. Revel released 16 frames variations of this model so far. Take a sneak peek at all Revel Rover frames models from 2022, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel frames
Our math shows that the average cost of a dependable Gravel frame is 1505$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
This frame was released in 2022 and its price was 2400$. Doing a quick comparison, we notice that Rover – Frame and Fork price is 59.47% higher than the average cost of a Gravel frame.
Overview of components
Fork material
The fork on this frame is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Brakes
For your safety, it is important to have quality breaks on your bike. Revel Rover – Frame and Fork has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
