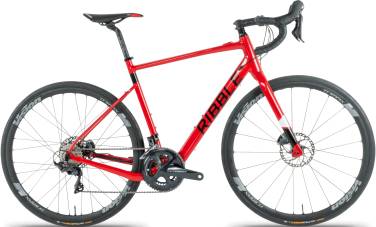

Ribble CGR AL e – Shimano Ultegra 2020
2020 E-bike
Estimate price |
3,669$
Weight | 13.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 Heat Treated, Seamless Weld Aluminium.
Suspension Fork
CGR Carbon Disc, Tapered.
Drivetrain
Rear Derailleur
Ultegra R8000 Med Cage.
Shift Levers
Ultegra R8020 11 Speed Hydraulic.
Cassette
Ultegra R8000 11-32T
Crank
Ultegra R8000 34-50T .
Bottom Bracket
Shimano Press Fit BB71 86.5x41.
Chain
Shimano HG701 11 Speed.
Wheels
Rims
Mavic Aksium Elite Evo UST EBM.
Tires
Schwalbe G-One Allround, 700x40c, Tan Wall.
Brakes
Brakes
Ultegra R8070 Hydraulic Disc.
Disk Rotors
Ultegra R8000 Braze On.
Cockpit
Stem
Level 1 6061 Alloy, Black.
Handlebar
Level 1 6061 Alloy, Black.
Headset
Level 52, 42-52mm.
Seat
Saddle
Prologo Kappa RS, Black.
Seatpost
Level 1 6061 Alloy, Black.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.5 mm | 1.55 mm | 1.59 mm | 1.57 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 595 mm | 605 mm | 611 mm | 616 mm | 630 mm |
| Rake | 51 mm | 50 mm | 51 mm | 51 mm | 49 mm |
| Trail | 69 mm | 67 mm | 63 mm | 60 mm | 62 mm |
| Stack | 558 mm | 570 mm | 591 mm | 612 mm | 622 mm |
| Reach | 367 mm | 379 mm | 382 mm | 385 mm | 397 mm |
| Top Tube Length | 522 mm | 542 mm | 557 mm | 572 mm | 592 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 150 mm | 170 mm | 190 mm | 200 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1023 mm | 1033 mm | 1038 mm | 1043 mm | 1057 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
Model Overview
CGR AL e – Shimano Ultegra belongs to the Ribble E Cgr model. Ribble launched 33 e-bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Ribble CGR AL e – Shimano Tiagra 2020 is the most economical model, with a starting price of 2426$. Ribble CGR AL e – Shimano Ultegra 2020 on the other hand costs 3397$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel e-bikes
According to our math, the average price for a trustworthy Gravel e-bike is 3642$. However, even though the average price of a Gravel e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2020 and its price was 3397$. Comparing this to the average Gravel e-bike price, we see that the price is 7.21% lower.
Gravel e-bikes average weight
On a deeper look, we notice that the average weight of a Gravel e-bike is 13.58 kg (29.94 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Ribble CGR AL e – Shimano Ultegra it’s weighing 13.1 kg (28.88 lbs). At this weight, is slightly lighter than average. To sum up, it’s 3.66% lighter than the average weight of Gravel e-bikes.
Overview of components
Fork material
The fork on this e-bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on CGR AL e – Shimano Ultegra are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
CGR AL e – Shimano Ultegra comes in 5 sizes, that range from 162 cm – 194 cm (5.31 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
