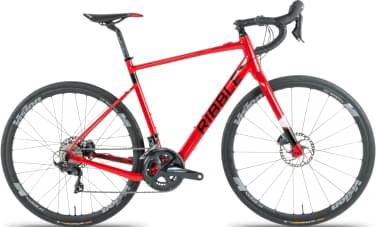

Ribble CGR AL e – Shimano Ultegra 2021
2021 E-bike
Estimate price |
4,006$
Weight | 13.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Panasonic 36V/250Wh, 18650GA-10S/2P. -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminium, Heat-Treated, Seamless Welds.
Suspension Fork
CGR AL e Disc, Carbon Monocoque, Tapered Steerer.
Drivetrain
Rear Derailleur
Shimano Ultegra R8000 Med Cage.
Shift Levers
Shimano Ultegra R8020 11 Speed Hydraulic.
Cassette
Shimano Ultegra R8000 11-32T
Crank
Shimano Ultegra R8000 34-50T .
Bottom Bracket
Shimano Press Fit BB71 86.5x41.
Chain
Shimano HG701 11 Speed.
Wheels
Rims
Mavic Ksyrium S Disc UST, 700c,12x100F/12x148R.
Tires
Continental Ultra Sport III Wire Bead,700x28c, Black.
Brakes
Brakes
Shimano Ultegra R8070 Hydraulic Disc.
Disk Rotors
Shimano Ultegra R8000 Braze On.
Cockpit
Stem
LEVEL 1 6061 Alloy, Black.
Handlebar
LEVEL 1 6061 Alloy, Black.
Headset
LEVEL 52, 42-52mm.
Seat
Saddle
Prologo Kappa RS, Black.
Seatpost
LEVEL 1 6061 Alloy, 27.2mm, 350mm,Black.
Motor & Battery
Motor
MAHLE Ebikemotion X35 M1 250W.
Battery
Panasonic 36V/250Wh, 18650GA-10S/2P.
Charger
Supplied With UK or US Power Cable.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.5 mm | 1.55 mm | 1.59 mm | 1.57 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 595 mm | 605 mm | 611 mm | 616 mm | 630 mm |
| Rake | 51 mm | 50 mm | 51 mm | 51 mm | 49 mm |
| Trail | 69 mm | 67 mm | 63 mm | 60 mm | 62 mm |
| Stack | 558 mm | 570 mm | 591 mm | 612 mm | 622 mm |
| Reach | 367 mm | 379 mm | 382 mm | 385 mm | 397 mm |
| Top Tube Length | 522 mm | 542 mm | 557 mm | 572 mm | 592 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 150 mm | 170 mm | 190 mm | 200 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1023 mm | 1033 mm | 1038 mm | 1043 mm | 1057 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
Model Overview
CGR AL e – Shimano Ultegra is part of the Ribble E Cgr model. There are 33 e-bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Ribble CGR AL e – Shimano Tiagra 2021 is the most economical model, with a starting price of 2967$. Ribble CGR AL e – Shimano Ultegra 2021 on the other hand costs 3709$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel e-bikes
Our math shows that the average cost of a dependable Gravel e-bike is 3642$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2021 for 3709$. In conclusion, this e-bike price is 1.84% higher than the price of the average Gravel e-bike.
Average weight for Gravel e-bikes
Gravel e-bikes have an average weight of 13.58 kg (29.94 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly lighter than average, CGR AL e – Shimano Ultegra has a weight of 13.1 kg (28.88 lbs). In short, the average Gravel e-bike weight is 3.66% higher than this one.
CGR AL e – Shimano Ultegra components
Fork material
The fork is made out of carbon, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the CGR AL e – Shimano Ultegra model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The CGR AL e – Shimano Ultegra has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
CGR AL e – Shimano Ultegra comes in 5 sizes, that range from 162 cm – 194 cm (5.31 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
