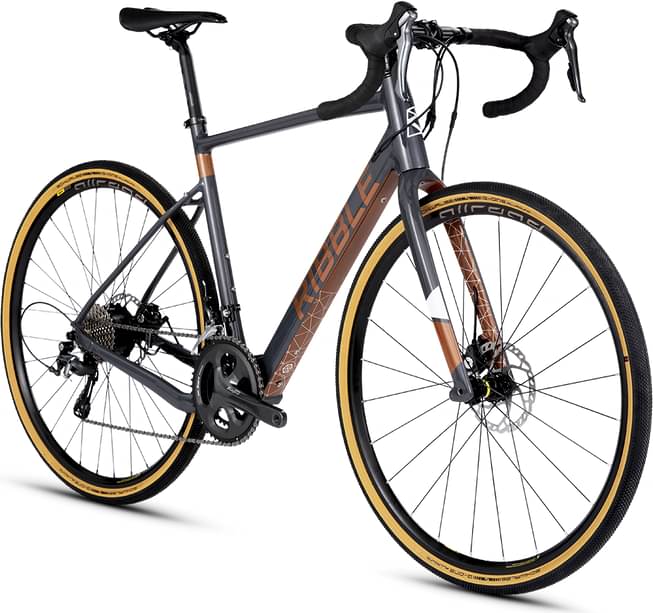

Ribble CGR AL e – Sport, Shimano Tiagra 2023
2023 E-bike
Estimate price |
3,612$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Panasonic I250 18650GA-10S/2P, 250Wh. -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminium, Heat-Treated, Seamless Welds.
Suspension Fork
CGR AL e Disc, Full Carbon, Tapered Steerer.
Drivetrain
Rear Derailleur
Shimano Tiagra 4700 Medium Cage.
Front Derailleur
Shimano Tiagra 4700 Braze-On.
Shift Levers
Shimano Tiagra 4700 STI's 10-Speed.
Cassette
Shimano GRX HG500 10-Speed Hyperglide.
Crank
FSA Omega MegaExo 19mm, 50-34T.
Bottom Bracket
FSA Pressfit BB386Evo Road.
Chain
Shimano Deore HG54 10-Speed Super Narrow.
Wheels
Rims
Mavic Allroad Disc Alloy, 12x100F/12x142R.
Tires
Schwalbe G-One Allround TR, 700x40c, Tan Wall.
Brakes
Brakes
Tektro MD510 Flat Mount Mechanical Disc.
Cockpit
Stem
LEVEL 6061 Alloy, Black.
Handlebar
LEVEL 6061 Alloy, Black.
Headset
LEVEL 52, 42-52mm, Tapered, Black.
Seat
Saddle
Prologo Kappa RS, Black.
Seatpost
LEVEL 1 6061 Alloy, 27.2mm.
Motor & Battery
Motor
MAHLE SmartBike Systems X35+, M1, 250W.
Battery
Panasonic I250 18650GA-10S/2P, 250Wh.
Charger
Supplied with UK Power Cable.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.5 mm | 1.55 mm | 1.59 mm | 1.57 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 595 mm | 605 mm | 611 mm | 616 mm | 630 mm |
| Rake | 51 mm | 50 mm | 51 mm | 51 mm | 49 mm |
| Trail | 69 mm | 67 mm | 63 mm | 60 mm | 62 mm |
| Stack | 558 mm | 570 mm | 591 mm | 612 mm | 622 mm |
| Reach | 367 mm | 379 mm | 382 mm | 385 mm | 397 mm |
| Top Tube Length | 522 mm | 542 mm | 557 mm | 572 mm | 592 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 150 mm | 170 mm | 190 mm | 200 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1023 mm | 1033 mm | 1038 mm | 1043 mm | 1057 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
About this model
CGR AL e – Sport, Shimano Tiagra is a Ribble E Cgr model. Ribble released 33 e-bikes variations of this model so far. Take a sneak peek at all Ribble E Cgr e-bikes models from 2023, by clicking here.
Model range prices
Ribble CGR AL e – Sport, Shimano Tiagra 2023 is the cheapest e-bike model and costs 3283$. Ribble CGR AL e – Enthusiast, Shimano 105 2023 is the most expensive one and costs 3770$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel e-bikes
If you want to purchase a solid Gravel e-bike, it is important to know that the average cost is 3642$. However, this doesn’t mean that if you spend less money on a Gravel e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 3283$. If we compare this with the average Gravel e-bike cost we notice that the price is 10.94% smaller.
CGR AL e – Sport, Shimano Tiagra components
Fork material
CGR AL e – Sport, Shimano Tiagra has a carbon fork, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the CGR AL e – Sport, Shimano Tiagra e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The CGR AL e – Sport, Shimano Tiagra has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
CGR AL e – Sport, Shimano Tiagra comes in 5 sizes, that range from 162 cm – 194 cm (5.31 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
