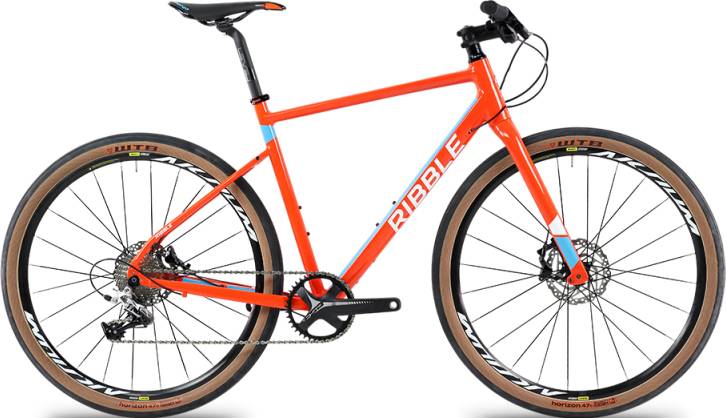

Ribble CGR AL – Flat Bar, Sram Apex 1x 2020
2020 Road
Estimate price |
1,630$
Weight | 9.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Apex 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 Heat-Treated, Seamless Weld, Aluminium.
Suspension Fork
CGR Carbon Disc,Full Carbon Fibre Monocoque.
Drivetrain
Rear Derailleur
SRAM Apex 1 Long Cage.
Front Derailleur
NA
Shift Levers
SRAM Apex 1 Flat Bar.
Cassette
SRAM PG-1130 11-42T.
Crank
SRAM Apex 1 GXP 42T.
Bottom Bracket
SRAM GXP Team BSA 68mm.
Chain
SRAM PC-1110 with Powerlock.
Wheels
Rims
Mavic Aksium Disc,12x100mm Front,12x142mm Rear.
Tires
Schwalbe G-One Allround 700x40c, Tan Wall.
Brakes
Brakes
Rever Hydraulic Disc
Disk Rotors
SRAM Centreline CL 160mm.
Cockpit
Stem
Level 1 6061 Alloy, Black.
Handlebar
Level Urban 6061 Alloy 640mm, Black.
Grips
Level Lock-On, Black.
Seat
Saddle
Prologo Kappa RS, Black.
Seatpost
Level 1 6061 Alloy 27.2mm, 350mm, Black.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.5 mm | 1.55 mm | 1.59 mm | 1.57 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 595 mm | 605 mm | 611 mm | 616 mm | 630 mm |
| Rake | 51 mm | 50 mm | 51 mm | 51 mm | 49 mm |
| Trail | 69 mm | 67 mm | 63 mm | 60 mm | 62 mm |
| Stack | 558 mm | 570 mm | 591 mm | 612 mm | 622 mm |
| Reach | 367 mm | 379 mm | 382 mm | 385 mm | 397 mm |
| Top Tube Length | 522 mm | 542 mm | 557 mm | 572 mm | 592 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 150 mm | 170 mm | 190 mm | 200 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1023 mm | 1033 mm | 1038 mm | 1043 mm | 1057 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
Model Overview
CGR AL – Flat Bar, Sram Apex 1x is part of the Ribble Cgr model. Ribble launched 130 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Ribble CGR AL – Sport, Shimano Tiagra 2020 has a starting price of 1211$. Ribble CGR Ti, Shimano Ultegra Di2 2020 on the other hand is the most expensive at 5520$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Ribble CGR AL – Flat Bar, Sram Apex 1x price was 1509$. Comparing this to the average Gravel bike price, we see that the price is 63.15% smaller.
Gravel bikes average weight
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 9.9 kg (21.83 lbs), the CGR AL – Flat Bar, Sram Apex 1x model is much heavier than average. In conclusion, the average Gravel bike weighs 21.77% less than CGR AL – Flat Bar, Sram Apex 1x.
Overview of components
Fork material
CGR AL – Flat Bar, Sram Apex 1x has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on CGR AL – Flat Bar, Sram Apex 1x are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 162 cm – 194 cm (5.31 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
