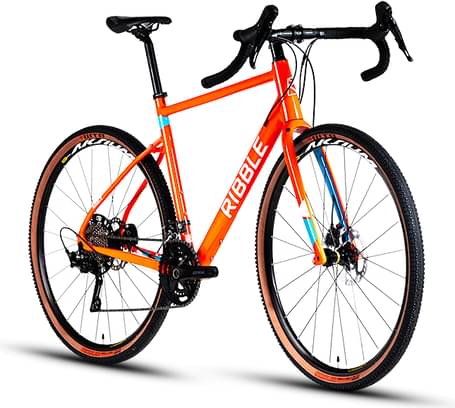

Ribble CGR AL – Gravel, Shimano GRX RX400 2023
2023 Road
Estimate price |
1,605$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 400, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
152cm - 163cm
XS
161cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 Aluminium, Heat Treated, Seamless Welds.
Suspension Fork
CGR AL, Full Carbon, Tapered Steerer.
Drivetrain
Rear Derailleur
Shimano GRX RX400 Medium Cage.
Front Derailleur
Shimano GRX RX400 Braze-On.
Shift Levers
Shimano GRX RX400 10-Speed Hydraulic.
Cassette
Shimano GRX HG500 10-Speed 11-32T.
Crank
Shimano GRX RX600, 2x10, 46-30T.
Bottom Bracket
Shimano BB-R60 Threaded BSA.
Chain
Shimano Deore HG54 10-Speed.
Wheels
Rims
Mavic Aksium 19 DCL, 12x100F/12x142R.
Tires
Schwalbe G-One Allround TLE, 700x40c, Tan Wall.
Brakes
Brakes
Shimano RX400 Flat Mount Hydraulic.
Cockpit
Stem
LEVEL 6061 Alloy, Black.
Handlebar
LEVEL Flared Gravel Alloy, 420/510mm.
Seat
Saddle
Prologo Kappa RS, Unisex, Black.
Seatpost
LEVEL 1 6061 Alloy, 27.2mm.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.52 mm | 1.51 mm | 1.55 mm | 1.59 mm | 1.57 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 580 mm | 595 mm | 605 mm | 611 mm | 616 mm | 630 mm |
| Rake | 46 mm | 51 mm | 42 mm | 51 mm | 51 mm | 49 mm |
| Trail | 78 mm | 69 mm | 76 mm | 63 mm | 60 mm | 62 mm |
| Stack | 537 mm | 555 mm | 567 mm | 588 mm | 609 mm | 619 mm |
| Reach | 355 mm | 364 mm | 376 mm | 379 mm | 382 mm | 394 mm |
| Top Tube Length | 499 mm | 519 mm | 539 mm | 554 mm | 569 mm | 589 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm | 200 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1004 mm | 1020 mm | 1022 mm | 1035 mm | 1040 mm | 1054 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 161 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 163 cm | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
About this model
CGR AL – Gravel, Shimano GRX RX400 is a Ribble Cgr model. Ribble released 130 bikes variations of this model so far. Take a sneak peek at all Ribble Cgr bikes models from 2023, by clicking here.
Model range prices
Ribble CGR AL – Sport, Shimano Tiagra 2023 is the most economical model, with a starting price of 1458$. Ribble CGR Ti – Pro, Shimano Ultegra Di2 2023 on the other hand costs 6081$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1458$. Comparing the average cost of a Gravel bike to this one, you will see that CGR AL – Gravel, Shimano GRX RX400 price is 68.86% smaller.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the CGR AL – Gravel, Shimano GRX RX400 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ribble CGR AL – Gravel, Shimano GRX RX400 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 152 cm – 194 cm (4.99 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
