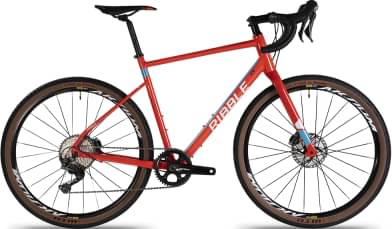

Ribble CGR AL – Gravel – Shimano GRX600 2022
2022 Road
Estimate price |
2,541$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
152cm - 163cm
XS
161cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Alloy, Heat-Treated, Seamless Welds.
Suspension Fork
CGR AL Disc, Full Carbon, Tapered Steerer.
Drivetrain
Rear Derailleur
Shimano GRX RX812 Shadow RD+.
Shift Levers
Shimano GRX RX600 11-Speed Hydraulic.
Cassette
Shimano SLX M7000 11-Speed 11-42T.
Crank
Shimano GRX RX600, 1x11, 40T.
Bottom Bracket
Shimano BB-R60 Threaded BSA.
Chain
KMC X11 11-Speed with MissingLink.
Wheels
Rims
Mavic Aksium 19 DCL, 12x100F/12x142R Thru-Axle.
Tires
Schwalbe G-One Allround TR, 700x40c, Tan Wall.
Brakes
Brakes
Shimano GRX Flat Mount Hydraulic Disc.
Disk Rotors
Shimano RT70 Centre Lock 160mm.
Cockpit
Stem
LEVEL 2 3D-Forged Alloy, Black.
Handlebar
LEVEL Flared Gravel Alloy, Black.
Headset
LEVEL 52, 42-52mm, Tapered, Black.
Seat
Saddle
Prologo Kappa RS, Black/Orange/Black.
Seatpost
LEVEL 1 6061 Alloy 27.2mm, 350mm.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.52 mm | 1.51 mm | 1.55 mm | 1.59 mm | 1.57 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 580 mm | 595 mm | 605 mm | 611 mm | 616 mm | 630 mm |
| Rake | 46 mm | 51 mm | 42 mm | 51 mm | 51 mm | 49 mm |
| Trail | 78 mm | 69 mm | 76 mm | 63 mm | 60 mm | 62 mm |
| Stack | 537 mm | 555 mm | 567 mm | 588 mm | 609 mm | 619 mm |
| Reach | 355 mm | 364 mm | 376 mm | 379 mm | 382 mm | 394 mm |
| Top Tube Length | 499 mm | 519 mm | 539 mm | 554 mm | 569 mm | 589 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm | 200 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1004 mm | 1020 mm | 1022 mm | 1035 mm | 1040 mm | 1054 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 161 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 163 cm | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
About this model
CGR AL – Gravel – Shimano GRX600 is a Ribble Cgr model. There are 130 bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Ribble CGR AL – Flat Bar – SRAM Apex 1x 2022 is the cheapest bike model and costs 1215$. Ribble CGR Ti – Hero, SRAM AXS 2022 is the most expensive one and costs 9730$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2310$. If we compare this with the average Gravel bike cost we notice that the price is 6.58% smaller.
CGR AL – Gravel – Shimano GRX600 components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The wheels on CGR AL – Gravel – Shimano GRX600 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Ribble CGR AL – Gravel – Shimano GRX600 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
CGR AL – Gravel – Shimano GRX600 comes in 6 sizes, that range from 152 cm – 194 cm (4.99 ft – 6.36 ft). In conclusion, finding one for you shouldn’t be a problem.
