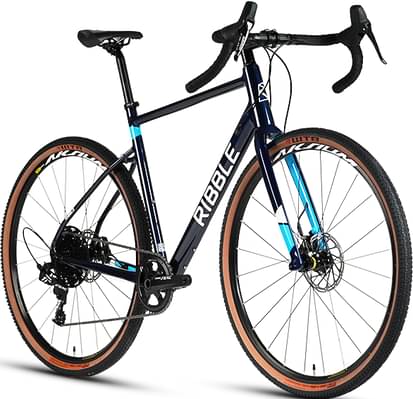

Ribble CGR AL – Gravel, SRAM Apex 1x 2022
2022 Road
Estimate price |
2,006$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Apex, Apex 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
152cm - 163cm
XS
161cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Heat Treated Aluminium.
Suspension Fork
CGR AL, Full Carbon, Tapered Steerer.
Drivetrain
Rear Derailleur
SRAM Apex 1x11 Long Cage.
Shift Levers
SRAM Apex 1 HRD 11-Speed.
Cassette
SRAM PG-1130 11-Speed 11-42T.
Crank
SRAM Apex 1 GXP, 42T X-Sync.
Bottom Bracket
SRAM GXP Team Threaded BSA.
Chain
SRAM PC-1110 11-Speed with Powerlock.
Wheels
Rims
Mavic Aksium 19 DCL, 12x100F/12x142R.
Tires
WTB Riddler TCS Light/Fast, 700x45c, Tan Wall.
Brakes
Brakes
SRAM Apex HRD Flat Mount Hydraulic.
Disk Rotors
Centre Lock 160mm.
Cockpit
Stem
LEVEL 1 6061 Alloy, Black, 31.8mm.
Handlebar
LEVEL Flared Gravel Alloy, 420/510mm.
Seat
Saddle
Selle Italia X3 Boost, Black.
Seatpost
LEVEL 1 6061 Alloy, 27.2mm, 350mm.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.52 mm | 1.51 mm | 1.55 mm | 1.59 mm | 1.57 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 580 mm | 595 mm | 605 mm | 611 mm | 616 mm | 630 mm |
| Rake | 46 mm | 51 mm | 42 mm | 51 mm | 51 mm | 49 mm |
| Trail | 78 mm | 69 mm | 76 mm | 63 mm | 60 mm | 62 mm |
| Stack | 537 mm | 555 mm | 567 mm | 588 mm | 609 mm | 619 mm |
| Reach | 355 mm | 364 mm | 376 mm | 379 mm | 382 mm | 394 mm |
| Top Tube Length | 499 mm | 519 mm | 539 mm | 554 mm | 569 mm | 589 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm | 200 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1004 mm | 1020 mm | 1022 mm | 1035 mm | 1040 mm | 1054 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 161 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 163 cm | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
About this model
CGR AL – Gravel, SRAM Apex 1x is part of the Ribble Cgr model. Ribble launched 130 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Ribble CGR AL – Flat Bar – SRAM Apex 1x 2022 is the most affordable bike of this model and has a price of 1215$. On the other hand, Ribble CGR Ti – Hero, SRAM AXS 2022, is the most expensive and costs 9730$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Ribble released this model in 2022, its price was 1823$. Comparing this to the average Gravel bike price, we see that the price is 35.05% lower.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on CGR AL – Gravel, SRAM Apex 1x are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ribble CGR AL – Gravel, SRAM Apex 1x is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 152 cm – 194 cm (4.99 ft – 6.36 ft). In conclusion, finding one for you shouldn’t be a problem.
