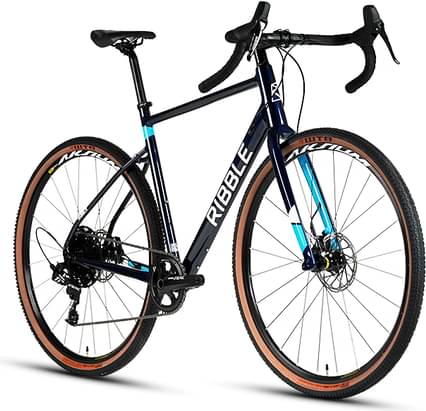

Ribble CGR AL – Gravel, SRAM Apex 1x 2023
2023 Road
Estimate price |
2,006$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Apex -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
152cm - 163cm
XS
161cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Heat Treated Aluminium.
Suspension Fork
CGR AL Full Carbon, Tapered Steerer.
Drivetrain
Rear Derailleur
SRAM Apex 1 Long Cage
Shift Levers
SRAM Apex 1 HRD 11-Speed
Cassette
SRAM PG-1130 11-Speed 11-42T
Crank
SRAM Apex 1 GXP, 42T
Bottom Bracket
SRAM GXP Team Threaded BSA
Chain
SRAM PC-1110 with Powerlock
Wheels
Rims
Mavic Aksium 19 DCL, 12x100F/12x142R Thru-Axle
Tires
WTB Riddler 700x45 or Goodyear Connector Ultimate 700x40c.
Brakes
Brakes
SRAM Apex HRD Flat Mount Hydraulic
Cockpit
Stem
LEVEL 1 6061 Alloy, Black, 31.8mm.
Handlebar
LEVEL Flared Gravel Alloy, 420/510mm.
Seat
Saddle
Selle Italia X3 Boost, Black.
Seatpost
LEVEL 1 6061 Alloy, 27.2mm, 350mm.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.52 mm | 1.51 mm | 1.55 mm | 1.59 mm | 1.57 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 580 mm | 595 mm | 605 mm | 611 mm | 616 mm | 630 mm |
| Rake | 46 mm | 51 mm | 42 mm | 51 mm | 51 mm | 49 mm |
| Trail | 78 mm | 69 mm | 76 mm | 63 mm | 60 mm | 62 mm |
| Stack | 537 mm | 555 mm | 567 mm | 588 mm | 609 mm | 619 mm |
| Reach | 355 mm | 364 mm | 376 mm | 379 mm | 382 mm | 394 mm |
| Top Tube Length | 499 mm | 519 mm | 539 mm | 554 mm | 569 mm | 589 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm | 200 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1004 mm | 1020 mm | 1022 mm | 1035 mm | 1040 mm | 1054 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 161 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 163 cm | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
About this model
CGR AL – Gravel, SRAM Apex 1x is a Ribble Cgr model. Ribble released 130 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Ribble CGR AL – Sport, Shimano Tiagra 2023 is the most affordable bike of this model and has a price of 1458$. On the other hand, Ribble CGR Ti – Pro, Shimano Ultegra Di2 2023, is the most expensive and costs 6081$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 1823$. Comparing the average cost of a Gravel bike to this one, you will see that CGR AL – Gravel, SRAM Apex 1x price is 35.05% smaller.
Overview of components
Fork material
CGR AL – Gravel, SRAM Apex 1x has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The CGR AL – Gravel, SRAM Apex 1x 2023 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 152 cm – 194 cm (4.99 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
