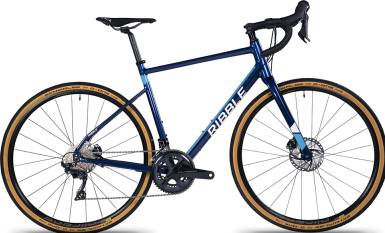

Ribble CGR AL – Pro, Shimano Ultegra 2020
2020 Road
Estimate price |
2,621$
Weight | 9.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
152cm - 163cm
XS
161cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 Alloy, Heat-Treated, Seamless Weld.
Suspension Fork
CGR Carbon Disc, Tapered Steerer.
Drivetrain
Rear Derailleur
Shimano Ultegra R8000 GS.
Front Derailleur
Shimano Ultegra R8000 Braze-On.
Shift Levers
Shimano Ultegra R8020 Hydraulic.
Cassette
Shimano Ultegra R8000 11-32T.
Crank
Shimano Ultegra R8000 34-50T.
Bottom Bracket
Shimano SM-BBR60 Threaded BSA.
Chain
Shimano HG701 11 Speed.
Wheels
Rims
Mavic Allroad Disc,12mm Bolt Thru-Axle.
Tires
Schwalbe G-One AllRound RaceGuard, 700x40c,Tan Wall.
Brakes
Brakes
Shimano BR-R8070 Hydraulic Flat Mount.
Disk Rotors
Shimano RT800 160mm Centrelock.
Cockpit
Stem
Level 2 6061 Alloy, Black.
Handlebar
Level 2 6061 Alloy, Black.
Headset
Level 52, 42-52mm Tapered.
Seat
Saddle
Fizik Antares R5, Black.
Seatpost
Level 2 Carbon 27.2mm, 350mm, Black.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.52 mm | 1.51 mm | 1.55 mm | 1.59 mm | 1.57 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 580 mm | 595 mm | 605 mm | 611 mm | 616 mm | 630 mm |
| Rake | 46 mm | 51 mm | 42 mm | 51 mm | 51 mm | 49 mm |
| Trail | 78 mm | 69 mm | 76 mm | 63 mm | 60 mm | 62 mm |
| Stack | 537 mm | 555 mm | 567 mm | 588 mm | 609 mm | 619 mm |
| Reach | 355 mm | 364 mm | 376 mm | 379 mm | 382 mm | 394 mm |
| Top Tube Length | 499 mm | 519 mm | 539 mm | 554 mm | 569 mm | 589 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm | 200 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1004 mm | 1020 mm | 1022 mm | 1035 mm | 1040 mm | 1054 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 161 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 163 cm | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
About this model
CGR AL – Pro, Shimano Ultegra is a Ribble Cgr model. 130 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Ribble CGR AL – Sport, Shimano Tiagra 2020 has a starting price of 1211$. Ribble CGR Ti, Shimano Ultegra Di2 2020 on the other hand is the most expensive at 5520$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2426$. If we compare this with the average Gravel bike cost we notice that the price is 1.48% lower.
Gravel bikes average weight
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much heavier than average, CGR AL – Pro, Shimano Ultegra has a weight of 9.8 kg (21.61 lbs). In short, the average Gravel bike weight is 20.54% lower than this one.
Overview of components
Fork material
CGR AL – Pro, Shimano Ultegra has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the CGR AL – Pro, Shimano Ultegra model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
CGR AL – Pro, Shimano Ultegra comes in 6 sizes, that range from 152 cm – 194 cm (4.99 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
