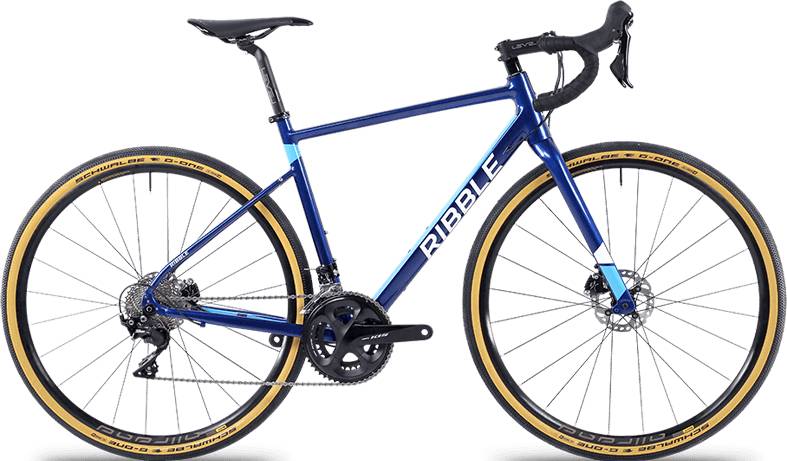

Ribble CGR AL , Shimano 105 2020
2020 Road
Estimate price |
1,902$
Weight | 9.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
XS
162cm - 171cm
SM
169cm - 176cm
SM
169cm - 176cm
MD
174cm - 181cm
MD
174cm - 181cm
LG
179cm - 186cm
LG
179cm - 186cm
XL
184cm - 194cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 Heat Treated, Seamless Weld, Aluminium.
Suspension Fork
CGR Carbon Disc, Full Carbon Fibre Monocoque.
Drivetrain
Rear Derailleur
Shimano 105 R7000 Med Cage.
Front Derailleur
Shimano 105 R7000 Braze On.
Shift Levers
Shimano 105 R7020 Hydraulic 11 Speed.
Cassette
105 R7000 11-32T.
Crank
Shimano 105 R7000 34-50T.
Bottom Bracket
Shimano BB-R60 BSA 68mm.
Chain
Shimano HG601 11 Speed.
Wheels
Rims
Mavic Aksium Disc Clincher,12x100mm Front, 12x142mm Rear.
Tires
Continental Ultra Sport 2 700x28c, Black.
Brakes
Brakes
Shimano 105 BR-R7070 Flat Mount Hydraulic.
Disk Rotors
Centrelock 160mm.
Cockpit
Stem
Level 1 6061 Alloy, Black.
Handlebar
Level 1 6061 Alloy, Black.
Seat
Saddle
Prologo Kappa RS, Black.
Seatpost
Level 1 6061 Alloy 27.2mm, 350mm, Black.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | XS | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.52 mm | 1.5 mm | 1.5 mm | 1.55 mm | 1.55 mm | 1.59 mm | 1.59 mm | 1.57 mm | 1.57 mm |
| Front Center | 595 mm | 595 mm | 605 mm | 605 mm | 611 mm | 611 mm | 616 mm | 616 mm | 630 mm | 630 mm |
| Rake | 51 mm | 51 mm | 50 mm | 50 mm | 51 mm | 51 mm | 51 mm | 51 mm | 49 mm | 49 mm |
| Trail | 63 mm | 69 mm | 61 mm | 67 mm | 57 mm | 63 mm | 54 mm | 60 mm | 56 mm | 62 mm |
| Stack | 558 mm | 558 mm | 570 mm | 570 mm | 591 mm | 591 mm | 612 mm | 612 mm | 622 mm | 622 mm |
| Reach | 367 mm | 367 mm | 379 mm | 379 mm | 382 mm | 382 mm | 385 mm | 385 mm | 397 mm | 397 mm |
| Top Tube Length | 532 mm | 532 mm | 547 mm | 547 mm | 557 mm | 557 mm | 572 mm | 572 mm | 592 mm | 592 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 470 mm | 510 mm | 510 mm | 530 mm | 530 mm | 555 mm | 555 mm | 580 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 140 mm | 150 mm | 150 mm | 170 mm | 170 mm | 190 mm | 190 mm | 200 mm | 200 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1023 mm | 1023 mm | 1033 mm | 1033 mm | 1038 mm | 1038 mm | 1043 mm | 1043 mm | 1057 mm | 1057 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 |
| Rider Min Height | 162 cm | 162 cm | 169 cm | 169 cm | 174 cm | 174 cm | 179 cm | 179 cm | 184 cm | 184 cm |
| Rider Max Height | 171 cm | 171 cm | 176 cm | 176 cm | 181 cm | 181 cm | 186 cm | 186 cm | 194 cm | 194 cm |
Model Overview
CGR AL , Shimano 105 is part of the Ribble Cgr model. There are 130 bikes that carry this model name. Take a sneak peek at all Ribble Cgr bikes models from 2020, by clicking here.
Model range prices
Ribble CGR AL – Sport, Shimano Tiagra 2020 is the cheapest bike model and costs 1211$. Ribble CGR Ti, Shimano Ultegra Di2 2020 is the most expensive one and costs 5520$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Ribble CGR AL , Shimano 105 price was 1760$. Comparing the average cost of a Gravel bike to this one, you will see that CGR AL , Shimano 105 price is 39.89% lower.
Average weight for Gravel bikes
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 9.8 kg (21.61 lbs), the CGR AL , Shimano 105 model is much heavier than average. In other words, this model is 20.54% heavier than the average Gravel bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The CGR AL , Shimano 105 2020 bike is equipped with aluminum wheels when leaving the factory. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
When you want to stop the bike in time, the brakes are vital. The CGR AL , Shimano 105 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
CGR AL , Shimano 105 comes in 10 sizes, that range from 162 cm – 194 cm (5.31 ft – 6.36 ft). In short, you can easily find one that suits you.
