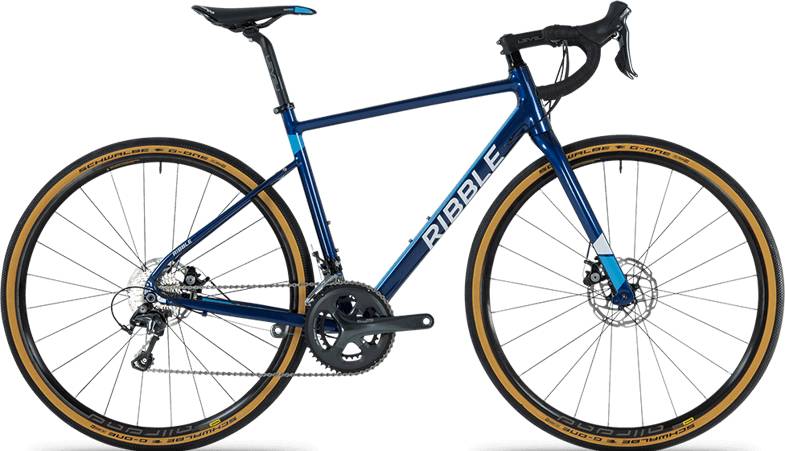

Ribble CGR AL , Shimano Tiagra 2020
2020 Road
Estimate price |
1,358$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
XS
162cm - 171cm
SM
169cm - 176cm
SM
169cm - 176cm
MD
174cm - 181cm
MD
174cm - 181cm
LG
179cm - 186cm
LG
179cm - 186cm
XL
184cm - 194cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 Heat Treated, Seamless Weld, Aluminium.
Suspension Fork
CGR Carbon Disc, Full Carbon Fibre Monocoque.
Drivetrain
Rear Derailleur
Shimano Tiagra 4700 Med Cage.
Front Derailleur
Shimano Tiagra 4700 Braze On.
Shift Levers
Shimano Tiagra 4700 STI's 10 Speed.
Cassette
Shimano HG500 11-32T.
Crank
Shimano Tiagra 4700 34-50T.
Bottom Bracket
Shimano BB-RS500 BSA 68mm.
Chain
Shimano HG54 10 Speed.
Wheels
Rims
Mavic Aksium Disc Clincher,12x100mm Front, 12x142mm Rear.
Tires
Continental Ultra Sport 2 700x28c, Black.
Brakes
Brakes
Tektro MD510 Mechanical Disc.
Disk Rotors
Centrelock 160mm.
Cockpit
Stem
Level 1 6061 Alloy, Black.
Handlebar
Level 1 6061 Alloy, Black.
Seat
Saddle
Prologo Kappa RS, Black.
Seatpost
Level 1 6061 Alloy 27.2mm, 350mm, Black.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | XS | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.52 mm | 1.5 mm | 1.5 mm | 1.55 mm | 1.55 mm | 1.59 mm | 1.59 mm | 1.57 mm | 1.57 mm |
| Front Center | 595 mm | 595 mm | 605 mm | 605 mm | 611 mm | 611 mm | 616 mm | 616 mm | 630 mm | 630 mm |
| Rake | 51 mm | 51 mm | 50 mm | 50 mm | 51 mm | 51 mm | 51 mm | 51 mm | 49 mm | 49 mm |
| Trail | 63 mm | 69 mm | 61 mm | 67 mm | 57 mm | 63 mm | 54 mm | 60 mm | 56 mm | 62 mm |
| Stack | 558 mm | 558 mm | 570 mm | 570 mm | 591 mm | 591 mm | 612 mm | 612 mm | 622 mm | 622 mm |
| Reach | 367 mm | 367 mm | 379 mm | 379 mm | 382 mm | 382 mm | 385 mm | 385 mm | 397 mm | 397 mm |
| Top Tube Length | 532 mm | 532 mm | 547 mm | 547 mm | 557 mm | 557 mm | 572 mm | 572 mm | 592 mm | 592 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 470 mm | 510 mm | 510 mm | 530 mm | 530 mm | 555 mm | 555 mm | 580 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 140 mm | 150 mm | 150 mm | 170 mm | 170 mm | 190 mm | 190 mm | 200 mm | 200 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1023 mm | 1023 mm | 1033 mm | 1033 mm | 1038 mm | 1038 mm | 1043 mm | 1043 mm | 1057 mm | 1057 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 |
| Rider Min Height | 162 cm | 162 cm | 169 cm | 169 cm | 174 cm | 174 cm | 179 cm | 179 cm | 184 cm | 184 cm |
| Rider Max Height | 171 cm | 171 cm | 176 cm | 176 cm | 181 cm | 181 cm | 186 cm | 186 cm | 194 cm | 194 cm |
Model Overview
CGR AL , Shimano Tiagra is a Ribble Cgr model. Ribble launched 130 bikes of this model so far. Take a sneak peek at all Ribble Cgr bikes models from 2020, by clicking here.
Model range prices
The most economical model, the Ribble CGR AL – Sport, Shimano Tiagra 2020 has a starting price of 1211$. Ribble CGR Ti, Shimano Ultegra Di2 2020 on the other hand is the most expensive at 5520$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2020 for 1257$. In conclusion, this bike price is 95.86% smaller than the price of the average Gravel bike.
Overview of components
Fork material
CGR AL , Shimano Tiagra has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Ribble CGR AL , Shimano Tiagra 2020, has a aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
When you want to stop the bike in time, the brakes are vital. The CGR AL , Shimano Tiagra has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
There are 10 sizes available for this model. Rider height can be anywhere between 162 cm – 194 cm (5.31 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
