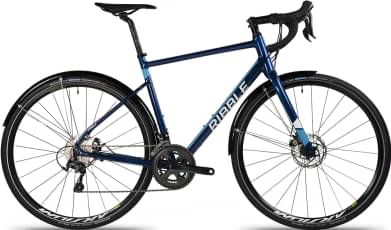

Ribble CGR AL – Sport, Shimano Tiagra 2021
2021 Road
Estimate price |
1,334$
Weight | 10.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XXS
152cm - 163cm
XS
161cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Alloy, Heat-Treated, Seamless Welds.
Suspension Fork
CGR AL Carbon Disc,Tapered Steerer.
Drivetrain
Rear Derailleur
Shimano Tiagra 4700 Medium Cage.
Front Derailleur
Shimano Tiagra 4700 Braze-On.
Shift Levers
Shimano Tiagra 4700 10-Speed.
Cassette
Shimano HG500 10-Speed 11-32T.
Crank
Shimano Tiagra 4700 50-34T.
Bottom Bracket
Shimano BB-RS500 Threaded BSA .
Chain
Shimano CN-HG54 10-Speed
Wheels
Rims
Mavic Aksium Disc,12x100mm/12x142mm Thru-Axles.
Tires
Schwalbe Marathon, 700x35c, BK/Reflex.
Brakes
Brakes
Tektro MD510 Mechanical Disc.
Disk Rotors
Tektro Lyra Centrelock 160mm.
Cockpit
Stem
LEVEL 1 6061 Alloy, Black.
Handlebar
LEVEL 1 6061 Alloy, Black
Headset
LEVEL 52, 42-52mm Tapered, Black.
Seat
Saddle
Prologo Kappa RS, Black.
Seatpost
LEVEL 1 6061 Alloy 27.2mm,
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.52 mm | 1.51 mm | 1.55 mm | 1.59 mm | 1.57 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 580 mm | 595 mm | 605 mm | 611 mm | 616 mm | 630 mm |
| Rake | 46 mm | 51 mm | 42 mm | 51 mm | 51 mm | 49 mm |
| Trail | 78 mm | 69 mm | 76 mm | 63 mm | 60 mm | 62 mm |
| Stack | 537 mm | 555 mm | 567 mm | 588 mm | 609 mm | 619 mm |
| Reach | 355 mm | 364 mm | 376 mm | 379 mm | 382 mm | 394 mm |
| Top Tube Length | 499 mm | 519 mm | 539 mm | 554 mm | 569 mm | 589 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm | 200 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1004 mm | 1020 mm | 1022 mm | 1035 mm | 1040 mm | 1054 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 161 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 163 cm | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
Model Overview
CGR AL – Sport, Shimano Tiagra completes the Ribble Cgr model. Ribble released 130 bikes variations of this model so far. Take a sneak peek at all Ribble Cgr bikes models from 2021, by clicking here.
Model range prices
Ribble CGR AL – Sport, Shimano Tiagra 2021 is the most affordable bike of this model and has a price of 1235$. On the other hand, Ribble CGR Ti – Hero, SRAM AXS 2021, is the most expensive and costs 9894$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2021 for 1235$. Comparing the average cost of a Gravel bike to this one, you will see that CGR AL – Sport, Shimano Tiagra price is 99.35% lower.
Average weight for Gravel bikes
If we make a quick analysis of the average weight of a Gravel bike, we get 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 10.5 kg (23.15 lbs), the CGR AL – Sport, Shimano Tiagra model is much heavier than average. In short, the average Gravel bike weight is 29.15% lower than this one.
CGR AL – Sport, Shimano Tiagra components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on CGR AL – Sport, Shimano Tiagra are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ribble CGR AL – Sport, Shimano Tiagra is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
CGR AL – Sport, Shimano Tiagra comes in 6 sizes, that range from 152 cm – 194 cm (4.99 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
