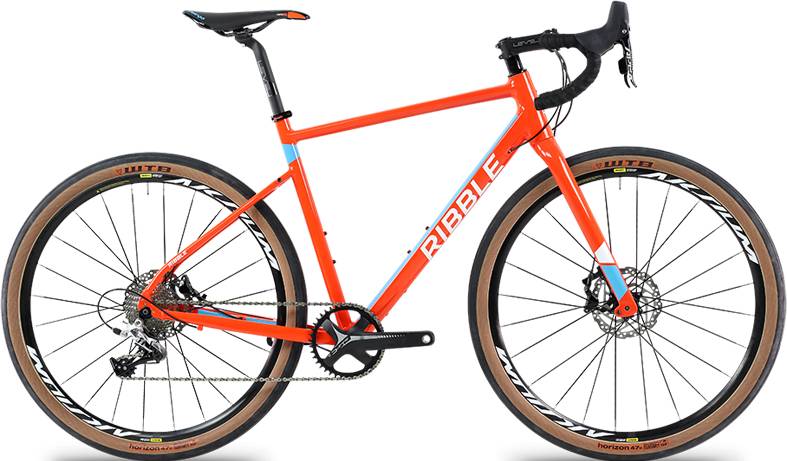

Ribble CGR AL , Sram Rival 1x 650B 2020
2020 Road
Estimate price |
2,309$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 700c -
Groupset Rival 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
XS
162cm - 171cm
SM
169cm - 176cm
SM
169cm - 176cm
MD
174cm - 181cm
MD
174cm - 181cm
LG
179cm - 186cm
LG
179cm - 186cm
XL
184cm - 194cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 Heat Treated, Seamless Weld, Aluminium.
Suspension Fork
CGR Carbon Disc, Full Carbon Fibre Monocoque.
Drivetrain
Rear Derailleur
SRAM Rival 1 Long Cage.
Shift Levers
SRAM Rival 1 HRD 1800mm LH, SRAM 22 HRD 950mm RH.
Cassette
SRAM PG-1130 11-42T.
Crank
SRAM Rival 1 GXP 42T X-Sync.
Bottom Bracket
SRAM GXP Team BSA 68mm.
Chain
SRAM PC-1130 with Powerlock.
Wheels
Rims
Mavic Aksium Elite Disc 650b,12x100mm, Rear 12x142mm.
Tires
WTB Horizon Road Plus TCS 650b x 47, Tan Wall.
Brakes
Brakes
SRAM Rival HRD Hydraulic Disc.
Disk Rotors
SRAM Centreline CL 160mm.
Cockpit
Stem
Level 1 6061 Alloy, Black.
Handlebar
Level 1 6061 Alloy, Black.
Seat
Saddle
WTB Koda Race 142mm, Black.
Seatpost
Level 1 6061 Alloy 27.2mm, 350mm, Black.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | XS | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.52 mm | 1.5 mm | 1.5 mm | 1.55 mm | 1.55 mm | 1.59 mm | 1.59 mm | 1.57 mm | 1.57 mm |
| Front Center | 595 mm | 595 mm | 605 mm | 605 mm | 611 mm | 611 mm | 616 mm | 616 mm | 630 mm | 630 mm |
| Rake | 51 mm | 51 mm | 50 mm | 50 mm | 51 mm | 51 mm | 51 mm | 51 mm | 49 mm | 49 mm |
| Trail | 63 mm | 69 mm | 61 mm | 67 mm | 57 mm | 63 mm | 54 mm | 60 mm | 56 mm | 62 mm |
| Stack | 558 mm | 558 mm | 570 mm | 570 mm | 591 mm | 591 mm | 612 mm | 612 mm | 622 mm | 622 mm |
| Reach | 367 mm | 367 mm | 379 mm | 379 mm | 382 mm | 382 mm | 385 mm | 385 mm | 397 mm | 397 mm |
| Top Tube Length | 532 mm | 532 mm | 547 mm | 547 mm | 557 mm | 557 mm | 572 mm | 572 mm | 592 mm | 592 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 470 mm | 510 mm | 510 mm | 530 mm | 530 mm | 555 mm | 555 mm | 580 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 140 mm | 150 mm | 150 mm | 170 mm | 170 mm | 190 mm | 190 mm | 200 mm | 200 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1023 mm | 1023 mm | 1033 mm | 1033 mm | 1038 mm | 1038 mm | 1043 mm | 1043 mm | 1057 mm | 1057 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 |
| Rider Min Height | 162 cm | 162 cm | 169 cm | 169 cm | 174 cm | 174 cm | 179 cm | 179 cm | 184 cm | 184 cm |
| Rider Max Height | 171 cm | 171 cm | 176 cm | 176 cm | 181 cm | 181 cm | 186 cm | 186 cm | 194 cm | 194 cm |
Model Overview
CGR AL , Sram Rival 1x 650B is a Ribble Cgr model. Ribble launched 130 bikes of this model so far. Take a sneak peek at all Ribble Cgr bikes models from 2020, by clicking here.
Model range prices
Ribble CGR AL – Sport, Shimano Tiagra 2020 is the most economical model, with a starting price of 1211$. Ribble CGR Ti, Shimano Ultegra Di2 2020 on the other hand costs 5520$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2137$. In conclusion, this bike price is 15.21% lower than the price of the average Gravel bike.
CGR AL , Sram Rival 1x 650B components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the CGR AL , Sram Rival 1x 650B model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
When you want to stop the bike in time, the brakes are vital. The CGR AL , Sram Rival 1x 650B has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Ribble CGR AL , Sram Rival 1x 650B bike has 10 sizes, in the range of 162 cm – 194 cm (5.31 ft – 6.36 ft). In conclusion, finding one for you shouldn’t be a problem.
