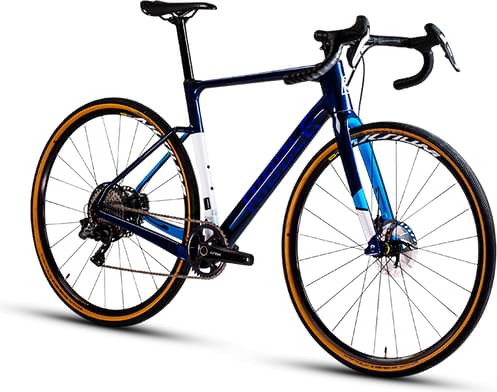

Ribble CGR SL – Gravel, Shimano GRX Di2 2023
2023 Road
Estimate price |
4,549$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GRX Di2, GRX 800 -
Suspension Rigid -
Drivetrain 1 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
XS
162cm - 171cm
SM
169cm - 176cm
SM
169cm - 176cm
MD
174cm - 181cm
MD
174cm - 181cm
LG
179cm - 186cm
LG
179cm - 186cm
XL
184cm - 194cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Toray T1000 Carbon Fibre Monocoque
Suspension Fork
CGR SL, Full Carbon Fibre, Tapered
Drivetrain
Rear Derailleur
Shimano GRX Di2 RX817 Shadow RD+
Shift Levers
Shimano GRX Di2 RX815 11-Speed Hydraulic
Cassette
Shimano XT M8000 11-Speed 11-42T
Crank
Shimano GRX RX810, 1x11, 40T
Bottom Bracket
Shimano BB-R60 Threaded BSA
Chain
KMC X11 11-Speed with MissingLink
Wheels
Rims
Mavic Allroad DCL 700c, 12x100F/12x142R
Tires
Schwalbe G-One Allround TR, 700x40c, Tan Wall
Brakes
Brakes
Shimano GRX RX810 Hydraulic Disc
Cockpit
Stem
LEVEL 2 6061 Alloy, Black.
Handlebar
LEVEL 2 6061 Alloy, Black.
Headset
Ribble SL/SLR, 1.5”x1.5”, Tapered
Seat
Saddle
Prologo Kappa RS, Black
Seatpost
Ribble SL Carbon, 5mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | XS | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.46 mm | 1.47 mm | 1.47 mm | 1.49 mm | 1.49 mm | 1.53 mm | 1.53 mm | 1.55 mm | 1.55 mm |
| Front Center | 593 mm | 593 mm | 599 mm | 599 mm | 600.7 mm | 600.7 mm | 615.5 mm | 615.5 mm | 616 mm | 616 mm |
| Rake | 50 mm | 50 mm | 52 mm | 52 mm | 49 mm | 49 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 71 mm | 59 mm | 65 mm | 59 mm | 65 mm | 55 mm | 61 mm | 55 mm | 61 mm |
| Stack | 529 mm | 529 mm | 540.5 mm | 540.5 mm | 553 mm | 553 mm | 584 mm | 584 mm | 602.7 mm | 602.7 mm |
| Reach | 363 mm | 363 mm | 367 mm | 367 mm | 371 mm | 371 mm | 381 mm | 381 mm | 388 mm | 388 mm |
| Top Tube Length | 512 mm | 512 mm | 532 mm | 532 mm | 542 mm | 542 mm | 562 mm | 562 mm | 582 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 460 mm | 480 mm | 480 mm | 500 mm | 500 mm | 520 mm | 520 mm | 540 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 130 mm | 130 mm | 140 mm | 140 mm | 155 mm | 155 mm | 180 mm | 180 mm | 200 mm | 200 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1011 mm | 1011 mm | 1017 mm | 1017 mm | 1017 mm | 1017 mm | 1033 mm | 1033 mm | 1046 mm | 1046 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 |
| Rider Min Height | 162 cm | 162 cm | 169 cm | 169 cm | 174 cm | 174 cm | 179 cm | 179 cm | 184 cm | 184 cm |
| Rider Max Height | 171 cm | 171 cm | 176 cm | 176 cm | 181 cm | 181 cm | 186 cm | 186 cm | 194 cm | 194 cm |
Model Overview
CGR SL – Gravel, Shimano GRX Di2 is part of the Ribble Cgr model. Ribble released 130 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Ribble CGR AL – Sport, Shimano Tiagra 2023 is the cheapest bike model and costs 1458$. Ribble CGR Ti – Pro, Shimano Ultegra Di2 2023 is the most expensive one and costs 6081$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2023 and its price was 4135$. Comparing the average cost of a Gravel bike to this one, you will see that CGR SL – Gravel, Shimano GRX Di2 price is 67.95% more expensive.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The CGR SL – Gravel, Shimano GRX Di2 2023 bike is equipped with aluminum wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Ribble CGR SL – Gravel, Shimano GRX Di2 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 10 sizes available for this model. Rider height can be anywhere between 162 cm – 194 cm (5.31 ft – 6.36 ft). In conclusion, finding one for you shouldn’t be a problem.
