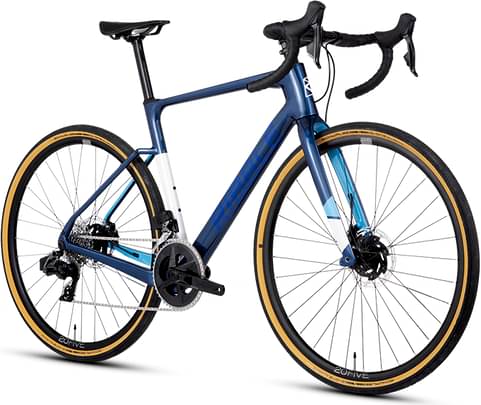

Ribble CGR SL – Pro, SRAM Rival AXS 2023
2023 Road
Estimate price |
4,013$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
XS
162cm - 171cm
SM
169cm - 176cm
SM
169cm - 176cm
MD
174cm - 181cm
MD
174cm - 181cm
LG
179cm - 186cm
LG
179cm - 186cm
XL
184cm - 194cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Toray T1000 Carbon Fibre Monocoque.
Suspension Fork
CGR SL, Full Carbon, Tapered Steerer.
Drivetrain
Rear Derailleur
SRAM Rival eTap AXS D1 Max 36T.
Front Derailleur
SRAM Rival eTap AXS D1 Braze-On.
Shift Levers
SRAM Rival eTap AXS 12-Speed HRD.
Cassette
SRAM XG-1250 D1 12-Speed 11-36T.
Crank
SRAM Rival D1 DUB, 2x12, 48-35T.
Bottom Bracket
SRAM DUB Road Threaded BSA.
Chain
SRAM Rival D1 12-Speed with Powerlock.
Wheels
Rims
Mavic Allroad DCL 700c, 12x100F/12x142R.
Tires
Schwalbe G-One Allround TR, 700x40c, Tan Wall.
Brakes
Brakes
SRAM Rival HRD Hydraulic Disc.
Cockpit
Stem
LEVEL 6061 Alloy, Black.
Handlebar
LEVEL 6061 Alloy, Black.
Headset
Ribble SL/SLR, 1.5”x1.5”, Tapered.
Seat
Saddle
Prologo Kappa RS, Unisex, Black.
Seatpost
Ribble SL Carbon, 5mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | XS | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.46 mm | 1.47 mm | 1.47 mm | 1.49 mm | 1.49 mm | 1.53 mm | 1.53 mm | 1.55 mm | 1.55 mm |
| Front Center | 593 mm | 593 mm | 599 mm | 599 mm | 600.7 mm | 600.7 mm | 615.5 mm | 615.5 mm | 616 mm | 616 mm |
| Rake | 50 mm | 50 mm | 52 mm | 52 mm | 49 mm | 49 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 71 mm | 59 mm | 65 mm | 59 mm | 65 mm | 55 mm | 61 mm | 55 mm | 61 mm |
| Stack | 529 mm | 529 mm | 540.5 mm | 540.5 mm | 553 mm | 553 mm | 584 mm | 584 mm | 602.7 mm | 602.7 mm |
| Reach | 363 mm | 363 mm | 367 mm | 367 mm | 371 mm | 371 mm | 381 mm | 381 mm | 388 mm | 388 mm |
| Top Tube Length | 512 mm | 512 mm | 527 mm | 527 mm | 537 mm | 537 mm | 562 mm | 562 mm | 582 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 460 mm | 480 mm | 480 mm | 500 mm | 500 mm | 520 mm | 520 mm | 540 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 130 mm | 130 mm | 140 mm | 140 mm | 150 mm | 150 mm | 180 mm | 180 mm | 200 mm | 200 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1011 mm | 1011 mm | 1017 mm | 1017 mm | 1017 mm | 1017 mm | 1033 mm | 1033 mm | 1046 mm | 1046 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 |
| Rider Min Height | 162 cm | 162 cm | 169 cm | 169 cm | 174 cm | 174 cm | 179 cm | 179 cm | 184 cm | 184 cm |
| Rider Max Height | 171 cm | 171 cm | 176 cm | 176 cm | 181 cm | 181 cm | 186 cm | 186 cm | 194 cm | 194 cm |
About this model
CGR SL – Pro, SRAM Rival AXS is a Ribble Cgr model. There are 130 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Ribble CGR AL – Sport, Shimano Tiagra 2023 is the cheapest bike model and costs 1458$. Ribble CGR Ti – Pro, Shimano Ultegra Di2 2023 is the most expensive one and costs 6081$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Ribble released this model in 2023, its price was 3648$. Doing a quick comparison, we notice that CGR SL – Pro, SRAM Rival AXS price is 48.17% higher than the average cost of a Gravel bike.
CGR SL – Pro, SRAM Rival AXS components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Ribble CGR SL – Pro, SRAM Rival AXS 2023, has a aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Ribble CGR SL – Pro, SRAM Rival AXS has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 10 sizes available for this model. Rider height can be anywhere between 162 cm – 194 cm (5.31 ft – 6.36 ft). In conclusion, finding one for you shouldn’t be a problem.
