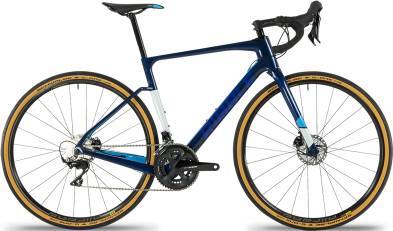

Ribble CGR SL, Shimano Tiagra 2020
2020 Road
Estimate price |
1,965$
Weight | 9.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650b / 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
XS
162cm - 171cm
SM
169cm - 176cm
SM
169cm - 176cm
MD
174cm - 181cm
MD
174cm - 181cm
LG
179cm - 186cm
LG
179cm - 186cm
XL
184cm - 194cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Toray T800 / T1000 Full Carbon Fibre Monocoque.
Suspension Fork
Full Carbon Fibre Monocoque, Tapered.
Drivetrain
Rear Derailleur
Tiagra 4700 Med Cage.
Front Derailleur
Tiagra 4700 Braze On.
Shift Levers
Tiagra 4700 STI's 10 Speed.
Cassette
Shimano HG500 11-32T.
Crank
Tiagra 4700 34-50T.
Bottom Bracket
Shimano BB-RS500 BSA.
Chain
Shimano HG54 10 Speed.
Wheels
Rims
Mavic Aksium Disc Clincher, 12mm Bolt Thru-Axle.
Tires
Schwalbe G-One Allround 700 x 40c, Tan Wall.
Brakes
Brakes
Tektro MD510 Mechanical Disc.
Disk Rotors
Centrelock 160mm.
Cockpit
Stem
Level 1 6061 Alloy, Black.
Handlebar
Level 1 6061 Alloy, Black.
Seat
Saddle
Prologo Kappa RS, Black.
Seatpost
SL Carbon, Black.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | XS | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.46 mm | 1.47 mm | 1.47 mm | 1.49 mm | 1.49 mm | 1.53 mm | 1.53 mm | 1.55 mm | 1.55 mm |
| Front Center | 593 mm | 593 mm | 599 mm | 599 mm | 600.7 mm | 600.7 mm | 615.5 mm | 615.5 mm | 616 mm | 616 mm |
| Rake | 50 mm | 50 mm | 52 mm | 52 mm | 49 mm | 49 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 71 mm | 59 mm | 65 mm | 59 mm | 65 mm | 55 mm | 61 mm | 55 mm | 61 mm |
| Stack | 529 mm | 529 mm | 540.5 mm | 540.5 mm | 553 mm | 553 mm | 584 mm | 584 mm | 602.7 mm | 602.7 mm |
| Reach | 363 mm | 363 mm | 367 mm | 367 mm | 371 mm | 371 mm | 381 mm | 381 mm | 388 mm | 388 mm |
| Top Tube Length | 522 mm | 522 mm | 537 mm | 537 mm | 547 mm | 547 mm | 562 mm | 562 mm | 582 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 460 mm | 480 mm | 480 mm | 500 mm | 500 mm | 520 mm | 520 mm | 540 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 130 mm | 130 mm | 140 mm | 140 mm | 155 mm | 155 mm | 180 mm | 180 mm | 200 mm | 200 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1011 mm | 1011 mm | 1017 mm | 1017 mm | 1017 mm | 1017 mm | 1033 mm | 1033 mm | 1046 mm | 1046 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 |
| Rider Min Height | 162 cm | 162 cm | 169 cm | 169 cm | 174 cm | 174 cm | 179 cm | 179 cm | 184 cm | 184 cm |
| Rider Max Height | 171 cm | 171 cm | 176 cm | 176 cm | 181 cm | 181 cm | 186 cm | 186 cm | 194 cm | 194 cm |
Model Overview
CGR SL, Shimano Tiagra belongs to the Ribble Cgr model. Ribble released 130 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Ribble CGR AL – Sport, Shimano Tiagra 2020 has a starting price of 1211$. Ribble CGR Ti, Shimano Ultegra Di2 2020 on the other hand is the most expensive at 5520$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2020 and its price was 1819$. Comparing the average cost of a Gravel bike to this one, you will see that CGR SL, Shimano Tiagra price is 35.35% smaller.
Average weight for Gravel bikes
On a deeper look, we notice that the average weight of a Gravel bike is 8.13 kg (17.92 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, CGR SL, Shimano Tiagra has a weight of 9.6 kg (21.16 lbs). To sum up, it’s 18.08% heavier than the average weight of Gravel bikes.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The CGR SL, Shimano Tiagra 2020 bike is equipped with aluminum wheels when leaving the factory. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. Ribble CGR SL, Shimano Tiagra has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
This bike is available in 10 sizes. They vary from 162 cm – 194 cm (5.31 ft – 6.36 ft). In conclusion, you won’t have a problem finding one that suits you.
