Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTAP -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Drivetrain
Rear Derailleur
SRAM Red eTap Short cage
Front Derailleur
SRAM Red eTap Braze On
Shift Levers
SRAM Red eTap 11spd Hydraulic
Cassette
SRAM XG1190 11/28T
Crank
SRAM Red GXP 34/50T
Bottom Bracket
SRAM GXP Team BSA 68mm
Chain
SRAM Red 22 Hollowpin with Powerlock
Wheels
Rims

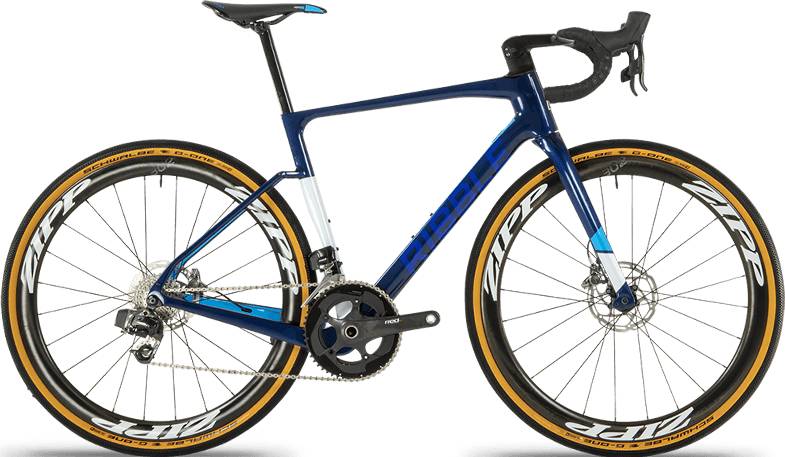

Mavic Ksyrium Elite Disc UST (pictured with Zipp 302's +£800)
Tires
Continental Ultra Sport 2 Rigid 28mm, Black (pictured with Schwalbe G-One 700x40c at same price)
Brakes
Brakes
SRAM Red Flat Mount Hydraulic
Disk Rotors
Centreline Centre Lock 160mm
Cockpit
Stem
Level 5 Carbon Integrated
Handlebar
Level 5 Carbon integrated
Seat
Saddle
Prologo Kappa RS
Seatpost
SL Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.47 mm | 1.49 mm | 1.53 mm | 1.55 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 593 mm | 599 mm | 600.7 mm | 615.5 mm | 616 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 65 mm | 65 mm | 61 mm | 61 mm |
| Stack | 529 mm | 540.5 mm | 553 mm | 584 mm | 602.7 mm |
| Reach | 363 mm | 367 mm | 371 mm | 381 mm | 388 mm |
| Top Tube Length | 512 mm | 532 mm | 542 mm | 562 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm | 180 mm | 200 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1011 mm | 1017 mm | 1017 mm | 1033 mm | 1046 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
About this model
CGR SL SRAM eTap belongs to the Ribble Cgr model. Ribble released 130 bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Ribble CGR AL TIAGRA 2019 is the most economical model, with a starting price of 980$. Ribble CGR TI – ULTEGRA DI2 2019 on the other hand costs 4466$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2019 for 3926$. Comparing this to the average Gravel bike price, we see that the price is 59.46% more expensive.
Overview of components
Fork material
CGR SL SRAM eTap has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When it comes to wheels, the CGR SL SRAM eTap bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
CGR SL SRAM eTap comes in 5 sizes, that range from 162 cm – 194 cm (5.31 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
