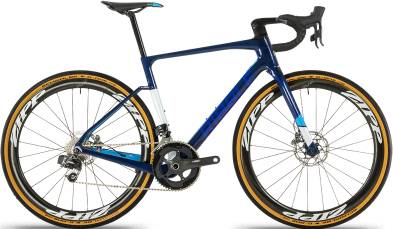

Ribble CGR SL, Sram eTap HRD 2020
2020 Road
Estimate price |
5,243$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 650b / 700c -
Groupset RED eTAP -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
XS
162cm - 171cm
SM
169cm - 176cm
SM
169cm - 176cm
MD
174cm - 181cm
MD
174cm - 181cm
LG
179cm - 186cm
LG
179cm - 186cm
XL
184cm - 194cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Toray T800 / T1000 Full Carbon Fibre Monocoque.
Suspension Fork
Full Carbon Fibre Monocoque, Tapered.
Drivetrain
Rear Derailleur
Red eTap Short Cage.
Front Derailleur
Red eTap Braze On.
Shift Levers
SRAM Red eTap HRD.
Cassette
SRAM XG-1190 11-28T.
Crank
Red eTap GXP 34-50T.
Bottom Bracket
SRAM GXP Team BSA.
Chain
SRAM Red 22 Hollowpin with Powerlock.
Wheels
Rims
Mavic Ksyrium Elite Disc UST, 12mm Bolt Thru-Axle.
Tires
Schwalbe G-One Allround 700 x 40c, Tan Wall.
Brakes
Brakes
SRAM Red Flat Mount Hydraulic Disc.
Disk Rotors
SRAM Centreline CL 160mm.
Cockpit
Stem
Level 5 Carbon Integrated, Black.
Handlebar
Level 5 Carbon Integrated, Black.
Seat
Saddle
Prologo Kappa RS, Black.
Seatpost
SL Carbon, Black.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | XS | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.46 mm | 1.47 mm | 1.47 mm | 1.49 mm | 1.49 mm | 1.53 mm | 1.53 mm | 1.55 mm | 1.55 mm |
| Front Center | 593 mm | 593 mm | 599 mm | 599 mm | 600.7 mm | 600.7 mm | 615.5 mm | 615.5 mm | 616 mm | 616 mm |
| Rake | 50 mm | 50 mm | 52 mm | 52 mm | 49 mm | 49 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 64 mm | 71 mm | 59 mm | 65 mm | 59 mm | 65 mm | 55 mm | 61 mm | 55 mm | 61 mm |
| Stack | 529 mm | 529 mm | 540.5 mm | 540.5 mm | 553 mm | 553 mm | 584 mm | 584 mm | 602.7 mm | 602.7 mm |
| Reach | 363 mm | 363 mm | 367 mm | 367 mm | 371 mm | 371 mm | 381 mm | 381 mm | 388 mm | 388 mm |
| Top Tube Length | 522 mm | 522 mm | 537 mm | 537 mm | 547 mm | 547 mm | 562 mm | 562 mm | 582 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 460 mm | 480 mm | 480 mm | 500 mm | 500 mm | 520 mm | 520 mm | 540 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 130 mm | 130 mm | 140 mm | 140 mm | 155 mm | 155 mm | 180 mm | 180 mm | 200 mm | 200 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1011 mm | 1011 mm | 1017 mm | 1017 mm | 1017 mm | 1017 mm | 1033 mm | 1033 mm | 1046 mm | 1046 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 |
| Rider Min Height | 162 cm | 162 cm | 169 cm | 169 cm | 174 cm | 174 cm | 179 cm | 179 cm | 184 cm | 184 cm |
| Rider Max Height | 171 cm | 171 cm | 176 cm | 176 cm | 181 cm | 181 cm | 186 cm | 186 cm | 194 cm | 194 cm |
About this model
CGR SL, Sram eTap HRD is a Ribble Cgr model. Ribble launched 130 bikes of this model so far. You can easily view all of the Ribble Cgr bikes models from 2020, here.
Model range prices
The most economical model, the Ribble CGR AL – Sport, Shimano Tiagra 2020 has a starting price of 1211$. Ribble CGR Ti, Shimano Ultegra Di2 2020 on the other hand is the most expensive at 5520$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2020 for 4853$. Doing a quick comparison, we notice that CGR SL, Sram eTap HRD price is 97.12% higher than the average cost of a Gravel bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on CGR SL, Sram eTap HRD are the aluminum type. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The CGR SL, Sram eTap HRD has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 10 sizes. They vary from 162 cm – 194 cm (5.31 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
