Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Drivetrain
Rear Derailleur
Ultegra R8000 Short Cage
Front Derailleur
Ultegra R8000 Braze On
Shift Levers
Ultegra R8020 11spd Hydraulic
Cassette
Ultegra R8000 11/28T
Crank
Ultegra R8000 34/50T
Bottom Bracket
Shimano BB-R60 BSA 68mm
Chain
Shimano HG701 114 Links
Wheels
Rims
Mavic Aksium Disc Clincher (pictured with Mavic Allroads +£300)
Tires
Schwalbe G-One Allround 700x40c, Tan Wall
Brakes
Brakes
Ultegra BR-R8070 Flat Mount Hydraulic
Disk Rotors
Shimano RT800 140mm Centrelock
Cockpit
Stem
Level 1 Alloy, Black
Handlebar
Level 1 Alloy (pictured with Level 5 Carbon Integrated +£300)
Seat
Saddle
Prologo Kappa RS
Seatpost
SL Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.47 mm | 1.49 mm | 1.53 mm | 1.55 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 593 mm | 599 mm | 600.7 mm | 615.5 mm | 616 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 65 mm | 65 mm | 61 mm | 61 mm |
| Stack | 529 mm | 540.5 mm | 553 mm | 584 mm | 602.7 mm |
| Reach | 363 mm | 367 mm | 371 mm | 381 mm | 388 mm |
| Top Tube Length | 512 mm | 532 mm | 542 mm | 562 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm | 180 mm | 200 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1011 mm | 1017 mm | 1017 mm | 1033 mm | 1046 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
About this model

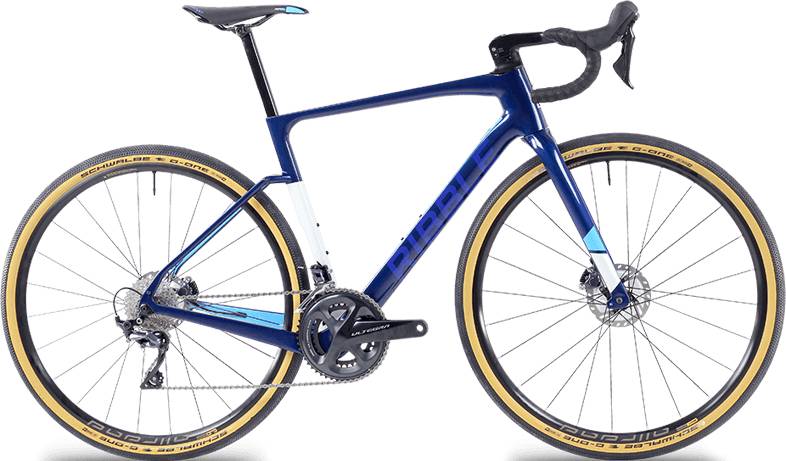

CGR SL ULTEGRA completes the Ribble Cgr model. Ribble released 130 bikes variations of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Ribble CGR AL TIAGRA 2019 is the most economical model, with a starting price of 980$. Ribble CGR TI – ULTEGRA DI2 2019 on the other hand costs 4466$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Ribble released this model in 2019, its price was 2159$. If we compare this with the average Gravel bike cost we notice that the price is 14.03% smaller.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the CGR SL ULTEGRA model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 162 cm – 194 cm (5.31 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
