Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon
Drivetrain
Rear Derailleur
Ultegra R8050 Short Cage
Front Derailleur
Ultegra R8050 Di2 Braze On
Shift Levers
Ultegra R8070 Di2 Hydraulic
Cassette
Ultegra R8000 11/28T
Crank
Ultegra R8000 34/50T
Bottom Bracket
Shimano BB-R60 BSA 68mm
Chain
Shimano HG701 114 Links
Wheels
Rims
Mavic Aksium Disc (pictured with Mavic Allroads +£50)
Tires
Continental Ultra Sport 2 Rigid 28mm, Black (pictured with Schwalbe G-One 700x40c at same price)
Brakes
Brakes
Ultegra BR-R8070 Flat Mount Hydraulic
Disk Rotors
Shimano RT800 Centrelock 140mm
Cockpit
Stem
Level 1 Alloy, Black
Handlebar
Level 1 Alloy, Black
Seat
Saddle
Prologo Kappa RS
Seatpost
SL Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.47 mm | 1.49 mm | 1.53 mm | 1.55 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 593 mm | 599 mm | 600.7 mm | 615.5 mm | 616 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 65 mm | 65 mm | 61 mm | 61 mm |
| Stack | 529 mm | 540.5 mm | 553 mm | 584 mm | 602.7 mm |
| Reach | 363 mm | 367 mm | 371 mm | 381 mm | 388 mm |
| Top Tube Length | 512 mm | 532 mm | 542 mm | 562 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm | 180 mm | 200 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1011 mm | 1017 mm | 1017 mm | 1033 mm | 1046 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |

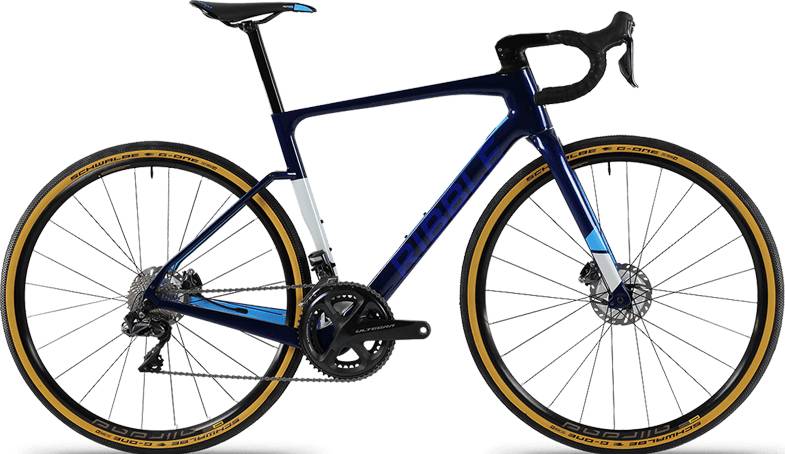

About this model
CGR SL ULTEGRA Di2 completes the Ribble Cgr model. Ribble launched 130 bikes of this model so far. Take a sneak peek at all Ribble Cgr bikes models from 2019, by clicking here.
Model range prices
The most economical model, the Ribble CGR AL TIAGRA 2019 has a starting price of 980$. Ribble CGR TI – ULTEGRA DI2 2019 on the other hand is the most expensive at 4466$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2748$. Comparing this to the average Gravel bike price, we see that the price is 11.62% higher.
CGR SL ULTEGRA Di2 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on CGR SL ULTEGRA Di2 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CGR SL ULTEGRA Di2 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Ribble CGR SL ULTEGRA Di2 bike has 5 sizes, in the range of 162 cm – 194 cm (5.31 ft – 6.36 ft). In short, you can easily find one that suits you.
