Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 172cm
SM
169cm - 177cm
MD
174cm - 182cm
LG
179cm - 187cm
XL
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
titanium
Drivetrain
Rear Derailleur
105 R7000 Med Cage
Front Derailleur
105 R7000 Braze On
Shift Levers
105 R7020 11spd Hydraulic
Cassette
105 R7000 11/32T
Crank
105 R7000 34/50T
Bottom Bracket
Shimano BB-R60, BSA
Chain
Shimano HG601 114 Links
Wheels
Rims
Mavic Aksium Disc 12mm Bolt Thru
Tires
Schwalbe G-One Allround Raceguard 700x40c, Tan Wall
Brakes
Brakes
105 BR-7070 Flat Mount Hydraulic
Disk Rotors
Centrelock 160mm
Cockpit
Stem
Level 1 Alloy, Black
Handlebar
Level 1 Alloy
Seat
Saddle
Prologo Kappa RS
Seatpost
Level 1 Alloy 27.2mm, 350mm, Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.52 mm | 1.56 mm | 1.59 mm | 1.6 mm |
| Stack | 547 mm | 559 mm | 580 mm | 597 mm | 616 mm |
| Reach | 366 mm | 368 mm | 371 mm | 375 mm | 386 mm |
| Top Tube Length | 521 mm | 536 mm | 546 mm | 561 mm | 581 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 510 mm | 530 mm | 555 mm | 580 mm | 600 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1017 mm | 1017 mm | 1022 mm | 1033 mm | 1044 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 172 cm | 177 cm | 182 cm | 187 cm | 193 cm |
About this model

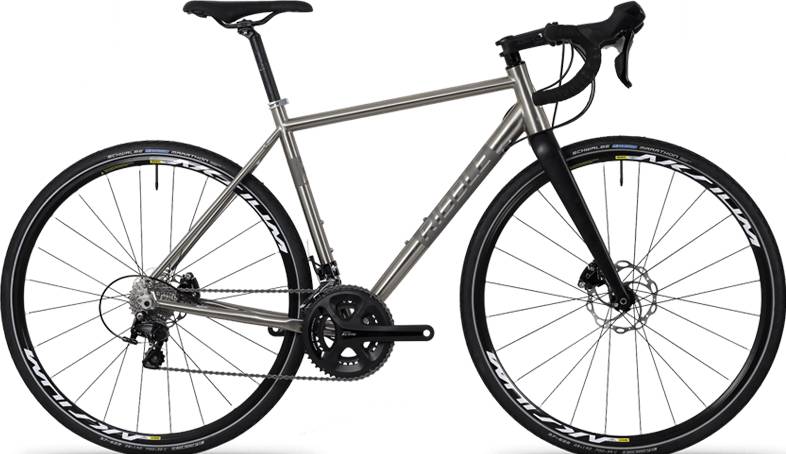

CGR TI – SHIMANO 105 belongs to the Ribble Cgr model. Ribble released 130 bikes variations of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Ribble CGR AL TIAGRA 2019 is the most economical model, with a starting price of 980$. Ribble CGR TI – ULTEGRA DI2 2019 on the other hand costs 4466$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Ribble CGR TI – SHIMANO 105 price was 2257$. Comparing this to the average Gravel bike price, we see that the price is 9.08% smaller.
Overview of components
Wheels size
The wheels on CGR TI – SHIMANO 105 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Ribble CGR TI – SHIMANO 105 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 162 cm – 193 cm (5.31 ft – 6.33 ft). In conclusion, finding one for you shouldn’t be a problem.
