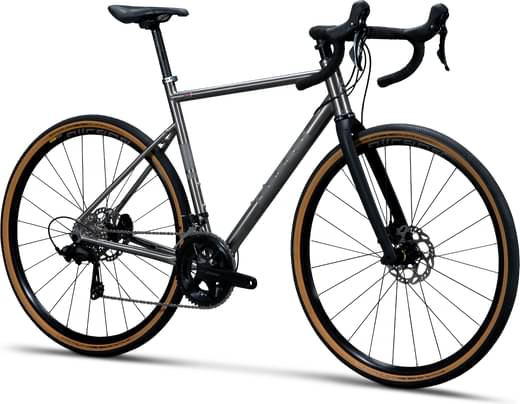

Ribble CGR Ti – Sport, Shimano 105 12-Speed 2023
2023 Road
Estimate price |
4,013$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
XS
162cm - 171cm
SM
169cm - 176cm
SM
169cm - 176cm
MD
174cm - 181cm
MD
174cm - 181cm
LG
179cm - 186cm
LG
179cm - 186cm
XL
184cm - 194cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3AL/2.5V Titanium, Triple-Butted, Seamless Welda.
Suspension Fork
CGR Ti Disc, Full Carbon, Tapered Steerer.
Drivetrain
Rear Derailleur
Shimano 105 R7100 Shadow RD.
Front Derailleur
Shimano 105 R7100 Braze-On.
Shift Levers
Shimano 105 R7120 12-Speed Hydraulic.
Cassette
Shimano 105 R7100 12-Speed Hyperglide+.
Crank
Shimano 105 R7100, 2x12-Speed.
Bottom Bracket
Shimano BBR60 Threaded BSA.
Chain
Shimano Deore M6100 12-Speed with Quicklink.
Wheels
Rims
Mavic Aksium 19 DCL,12x100F/12x142R.
Tires
Schwalbe G-One Allround, 700x40c, Tan Wall.
Brakes
Brakes
Shimano 105 R7170 Flat Mount Hydraulic Disc.
Cockpit
Stem
LEVEL 6061 Alloy, Black.
Handlebar
LEVEL 6061 Alloy, Black.
Headset
LEVEL 44 (also available in a choice of anodised colours in BikeBuilder).
Seat
Saddle
Prologo Kappa RS, Black.
Seatpost
LEVEL 2 UD Carbon, 27.2mm, 350mm.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | XS | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.49 mm | 1.52 mm | 1.52 mm | 1.56 mm | 1.56 mm | 1.59 mm | 1.59 mm | 1.6 mm | 1.6 mm |
| Front Center | 599.4 mm | 599.4 mm | mm | mm | mm | mm | mm | mm | mm | mm |
| Stack | 547 mm | 547 mm | 559 mm | 559 mm | 580 mm | 580 mm | 597 mm | 597 mm | 616 mm | 616 mm |
| Reach | 366 mm | 366 mm | 368 mm | 368 mm | 371 mm | 371 mm | 375 mm | 375 mm | 386 mm | 386 mm |
| Top Tube Length | 521 mm | 521 mm | 536 mm | 536 mm | 546 mm | 546 mm | 561 mm | 561 mm | 581 mm | 581 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 510 mm | 510 mm | 530 mm | 530 mm | 555 mm | 555 mm | 580 mm | 580 mm | 600 mm | 600 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 140 mm | 150 mm | 150 mm | 170 mm | 170 mm | 190 mm | 190 mm | 210 mm | 210 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1017 mm | 1017 mm | 1017 mm | 1017 mm | 1022 mm | 1022 mm | 1033 mm | 1033 mm | 1044 mm | 1044 mm |
| Wheels | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 |
| Rider Min Height | 162 cm | 162 cm | 169 cm | 169 cm | 174 cm | 174 cm | 179 cm | 179 cm | 184 cm | 184 cm |
| Rider Max Height | 171 cm | 171 cm | 176 cm | 176 cm | 181 cm | 181 cm | 186 cm | 186 cm | 194 cm | 194 cm |
About this model
CGR Ti – Sport, Shimano 105 12-Speed completes the Ribble Cgr model. There are 130 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Ribble CGR AL – Sport, Shimano Tiagra 2023 is the most affordable bike of this model and has a price of 1458$. On the other hand, Ribble CGR Ti – Pro, Shimano Ultegra Di2 2023, is the most expensive and costs 6081$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Ribble released this model in 2023, its price was 3648$. Doing a quick comparison, we notice that CGR Ti – Sport, Shimano 105 12-Speed price is 48.17% more expensive than the average cost of a Gravel bike.
Overview of components
Fork material
CGR Ti – Sport, Shimano 105 12-Speed has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the CGR Ti – Sport, Shimano 105 12-Speed bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Ribble CGR Ti – Sport, Shimano 105 12-Speed has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
CGR Ti – Sport, Shimano 105 12-Speed comes in 10 sizes, that range from 162 cm – 194 cm (5.31 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
