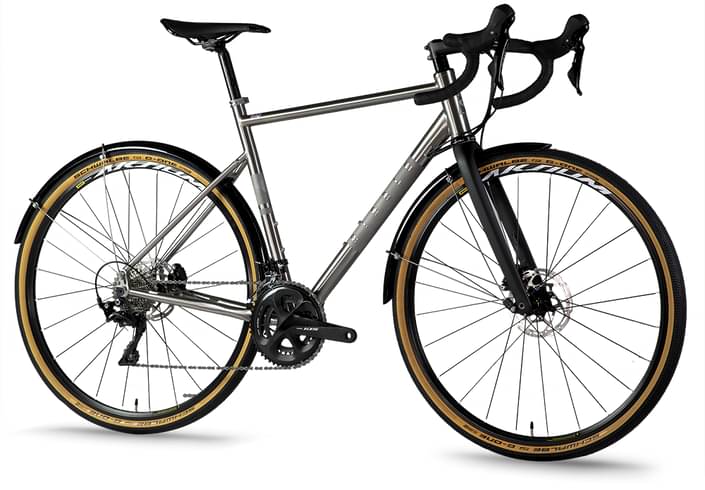

Ribble CGR Ti – Sport, Shimano 105 2023
2023 Road
Estimate price |
3,612$
Weight | 10.65 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
XS
162cm - 171cm
SM
169cm - 176cm
SM
169cm - 176cm
MD
174cm - 181cm
MD
174cm - 181cm
LG
179cm - 186cm
LG
179cm - 186cm
XL
184cm - 194cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3AL/2.5V Titanium, Triple-Butted, Seamless Welda.
Suspension Fork
CGR Ti Disc, Full Carbon, Tapered Steerer.
Drivetrain
Rear Derailleur
Shimano 105 R7000 Medium Cage.
Front Derailleur
Shimano 105 R7000 Braze-On.
Shift Levers
Shimano 105 R7020 11-Speed Hydraulic.
Cassette
Shimano 105 R7000 11-Speed Hyperglide.
Crank
Shimano 105 R7000, 2x11, 50-34T.
Bottom Bracket
Shimano BB-R60 Threaded BSA.
Chain
Shimano 105 HG601 11-Speed Super Narrow.
Wheels
Rims
Mavic Aksium 19 DCL,12x100F/12x142R.
Tires
Schwalbe G-One Allround, 700x40c, Tan Wall.
Brakes
Brakes
Shimano 105 R7070 Flat Mount Hydraulic Disc.
Cockpit
Stem
LEVEL 6061 Alloy, Black.
Handlebar
LEVEL 6061 Alloy, Black.
Headset
LEVEL 44 (also available in a choice of anodised colours in BikeBuilder).
Seat
Saddle
Prologo Kappa RS, Black.
Seatpost
LEVEL 2 UD Carbon, 27.2mm, 350mm.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | XS | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.49 mm | 1.52 mm | 1.52 mm | 1.56 mm | 1.56 mm | 1.59 mm | 1.59 mm | 1.6 mm | 1.6 mm |
| Front Center | 599.4 mm | 599.4 mm | mm | mm | mm | mm | mm | mm | mm | mm |
| Stack | 547 mm | 547 mm | 559 mm | 559 mm | 580 mm | 580 mm | 597 mm | 597 mm | 616 mm | 616 mm |
| Reach | 366 mm | 366 mm | 368 mm | 368 mm | 371 mm | 371 mm | 375 mm | 375 mm | 386 mm | 386 mm |
| Top Tube Length | 521 mm | 521 mm | 536 mm | 536 mm | 546 mm | 546 mm | 561 mm | 561 mm | 581 mm | 581 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 510 mm | 510 mm | 530 mm | 530 mm | 555 mm | 555 mm | 580 mm | 580 mm | 600 mm | 600 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 140 mm | 150 mm | 150 mm | 170 mm | 170 mm | 190 mm | 190 mm | 210 mm | 210 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1017 mm | 1017 mm | 1017 mm | 1017 mm | 1022 mm | 1022 mm | 1033 mm | 1033 mm | 1044 mm | 1044 mm |
| Wheels | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 |
| Rider Min Height | 162 cm | 162 cm | 169 cm | 169 cm | 174 cm | 174 cm | 179 cm | 179 cm | 184 cm | 184 cm |
| Rider Max Height | 171 cm | 171 cm | 176 cm | 176 cm | 181 cm | 181 cm | 186 cm | 186 cm | 194 cm | 194 cm |
About this model
CGR Ti – Sport, Shimano 105 belongs to the Ribble Cgr model. Ribble released 130 bikes variations of this model so far. You can easily view all of the Ribble Cgr bikes models from 2023, here.
Model range prices
The most economical model, the Ribble CGR AL – Sport, Shimano Tiagra 2023 has a starting price of 1458$. Ribble CGR Ti – Pro, Shimano Ultegra Di2 2023 on the other hand is the most expensive at 6081$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3283$. If we compare this with the average Gravel bike cost we notice that the price is 33.35% more expensive.
Average weight for Gravel bikes
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Ribble CGR Ti – Sport, Shimano 105 it’s weighing 10.65 kg (23.48 lbs). At this weight, is much heavier than average. In short, the average Gravel bike weight is 31% lower than this one.
CGR Ti – Sport, Shimano 105 components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The CGR Ti – Sport, Shimano 105 2023 bike is equipped with aluminum wheels when leaving the factory. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 10 sizes available for this model. Rider height can be anywhere between 162 cm – 194 cm (5.31 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
