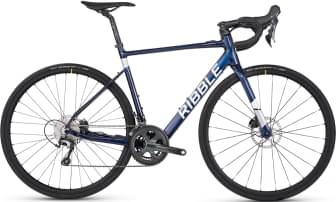

Ribble Endurance AL e – Sport, Shimano Tiagra Hydraulic 2022
2022 E-bike
Estimate price |
2,469$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Panasonic 36V/250Wh 18650GA-10S/2P. -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 166cm
SM
164cm - 171cm
MD
169cm - 179cm
LG
177cm - 186cm
XL
184cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminium, Heat-Treated, Seamless Welds.
Suspension Fork
Endurance AL e, Full Carbon, Tapered Steerer.
Drivetrain
Rear Derailleur
Shimano Tiagra 4700 Medium Cage .
Front Derailleur
Shimano Tiagra 4700 Braze-On.
Shift Levers
Shimano Tiagra 4720 10-Speed Hydraulic.
Cassette
Shimano HG500 10-Speed 11-32T.
Crank
FSA Omega MegaExo 19mm, 50-34T.
Bottom Bracket
FSA MegaExo Press Fit BB86.
Chain
Shimano Deore HG54 10-Speed Super Narrow.
Wheels
Rims
Mavic Ksyrium S Disc Alloy, 12x100F/12x142.
Tires
Continental Ultra Sport, 700x28mm, Black.
Brakes
Brakes
Shimano Tiagra 4770 Flat Mount Hydraulic.
Disk Rotors
Shimano RT66 6-Bolt 160mm.
Cockpit
Stem
LEVEL 1 6061 Alloy, Black, 31.8mm.
Handlebar
LEVEL 1 6061 Alloy, Black, 31.8mm.
Headset
LEVEL 56 Semi-Integrated, Black.
Seat
Saddle
Prologo Kappa RS, Black.
Seatpost
LEVEL 1 6061 Alloy, 27.2mm.
Motor & Battery
Motor
MAHLE SmartBike Systems X35+ 250W.
Battery
Panasonic 36V/250Wh 18650GA-10S/2P.
Charger
Supplied with UK or US Power Cable.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.37 mm | 1.41 mm | 1.44 mm | 1.47 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 591 mm | 585 mm | 591 mm | 598 mm | 607 mm |
| Rake | 59 mm | 49 mm | 45 mm | 45 mm | 44 mm |
| Trail | 54 mm | 59 mm | 60 mm | 57 mm | 56 mm |
| Stack | 507 mm | 529 mm | 550 mm | 570 mm | 591 mm |
| Reach | 381 mm | 387 mm | 390 mm | 396 mm | 402 mm |
| Top Tube Length | 522 mm | 537 mm | 552 mm | 572 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.6 ° | 73.3 ° | 73 ° |
| Seat Tube Length | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 73 ° | 73.3 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 998 mm | 992 mm | 993 mm | 1000 mm | 1009 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 164 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 166 cm | 171 cm | 179 cm | 186 cm | 191 cm |
About this model
Endurance AL e – Sport, Shimano Tiagra Hydraulic completes the Ribble E Endurance model. There are 39 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Ribble Endurance AL e – Sport, Shimano Tiagra Hydraulic 2022 is the most economical model, with a starting price of 2286$. Ribble Endurance SL e – Hero, Shimano Dura Ace Di2 2022 on the other hand costs 9000$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Endurance e-bikes average price
According to our calculations, the average cost of an Endurance e-bike that is reliable is 3800$. However, even though the average price of an Endurance e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Ribble Endurance AL e – Sport, Shimano Tiagra Hydraulic price was 2286$. If we compare this with the average Endurance e-bike cost we notice that the price is 66.23% smaller.
Endurance AL e – Sport, Shimano Tiagra Hydraulic components
Fork material
Endurance AL e – Sport, Shimano Tiagra Hydraulic has a carbon fork, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the Endurance AL e – Sport, Shimano Tiagra Hydraulic e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Endurance AL e – Sport, Shimano Tiagra Hydraulic has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Endurance AL e – Sport, Shimano Tiagra Hydraulic comes in 5 sizes, that range from 158 cm – 191 cm (5.18 ft – 6.27 ft). In short, you can easily find one that suits you.
