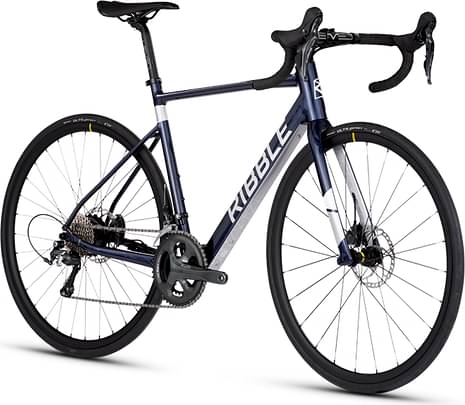

Ribble Endurance AL e – Sport, Shimano Tiagra Hydraulic 2023
2023 E-bike
Estimate price |
2,943$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Panasonic I250 36V/250Wh 18650GA-10S/2P. -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
160cm - 166cm
SM
164cm - 171cm
MD
169cm - 179cm
LG
177cm - 186cm
XL
184cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminium, Heat-Treated, Seamless Welds.
Suspension Fork
Endurance AL e, Full Carbon, Tapered Steerer.
Drivetrain
Rear Derailleur
Shimano Tiagra 4700 Medium Cage .
Front Derailleur
Shimano Tiagra 4700 Braze-On.
Shift Levers
Shimano Tiagra 4720 10-Speed Hydraulic.
Cassette
Shimano HG500 10-Speed 11-32T.
Crank
FSA Omega MegaExo 19mm, 50-34T.
Bottom Bracket
FSA MegaExo Press Fit BB86.
Chain
Shimano Deore HG54 10-Speed Super Narrow.
Wheels
Rims
Mavic Ksyrium S Disc Alloy, 12x100F/12x142.
Tires
Continental Ultra Sport, Wire Bead, Black.
Brakes
Brakes
Shimano Tiagra 4770 Flat Mount Hydraulic Disc.
Cockpit
Stem
LEVEL 6061 Alloy, Black, 31.8mm.
Handlebar
LEVEL 6061 Alloy, Black, 31.8mm.
Headset
LEVEL 56 Semi-Integrated, Black.
Seat
Saddle
Prologo Kappa RS, Black.
Seatpost
LEVEL 1 6061 Alloy, 27.2mm.
Motor & Battery
Motor
MAHLE SmartBike Systems X35+ 250W.
Battery
Panasonic I250 36V/250Wh 18650GA-10S/2P.
Charger
Supplied with UK Power Cable.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.37 mm | 1.41 mm | 1.44 mm | 1.47 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 591 mm | 585 mm | 591 mm | 598 mm | 607 mm |
| Rake | 59 mm | 49 mm | 45 mm | 45 mm | 44 mm |
| Trail | 54 mm | 59 mm | 60 mm | 57 mm | 56 mm |
| Stack | 507 mm | 529 mm | 550 mm | 570 mm | 591 mm |
| Reach | 381 mm | 387 mm | 390 mm | 396 mm | 402 mm |
| Top Tube Length | 522 mm | 537 mm | 552 mm | 572 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.6 ° | 73.3 ° | 73 ° |
| Seat Tube Length | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 73 ° | 73.3 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 998 mm | 992 mm | 993 mm | 1000 mm | 1009 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 164 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 166 cm | 171 cm | 179 cm | 186 cm | 191 cm |
Model Overview
Endurance AL e – Sport, Shimano Tiagra Hydraulic belongs to the Ribble E Endurance model. Ribble released 39 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Ribble Endurance AL e – Sport, Shimano Tiagra 2023 is the cheapest e-bike model and costs 2432$. Ribble Endurance SL e – Hero, Shimano Dura Ace Di2 2023 is the most expensive one and costs 10338$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Endurance e-bikes average price
According to our calculations, the average cost of an Endurance e-bike that is reliable is 3800$. However, even though the average price of an Endurance e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2675$. Doing a quick comparison, we notice that Endurance AL e – Sport, Shimano Tiagra Hydraulic price is 42.06% smaller than the average cost of an Endurance e-bike.
Overview of components
Fork material
Endurance AL e – Sport, Shimano Tiagra Hydraulic has a carbon fork, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Endurance AL e – Sport, Shimano Tiagra Hydraulic model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Endurance AL e – Sport, Shimano Tiagra Hydraulic has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 160 cm – 191 cm (5.25 ft – 6.27 ft). In conclusion, it won’t take much to find one that’s right for you.
