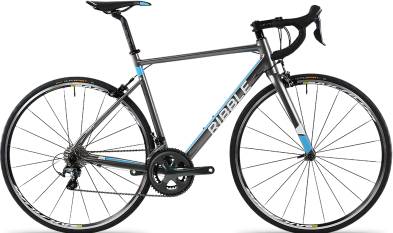

Ribble Endurance AL, Shimano Tiagra 2020
2020 Road
Estimate price |
1,062$
Weight | 9.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
XS
158cm - 166cm
SM
164cm - 171cm
MD
169cm - 179cm
LG
177cm - 186cm
XL
184cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 Heat-Treated Aluminium.
Suspension Fork
Full Carbon Fibre Monocoque.
Drivetrain
Rear Derailleur
Tiagra 4700 Med Cage.
Front Derailleur
Tiagra 4700 Braze On.
Shift Levers
Tiagra 4700 STI 10 Speed.
Cassette
Shimano HG500 11-32T.
Crank
Tiagra 4700 34-50T.
Bottom Bracket
Shimano BB-RS500 BSA.
Chain
Shimano HG54 10 Speed.
Wheels
Rims
Mavic Aksium Clincher, 9mm QR Axle.
Tires
Continental Ultra Sport 2, 700x25c, Black.
Brakes
Brakes
Tiagra 4700 Rim Caliper.
Cockpit
Stem
Level 1 6061 Alloy, Black.
Handlebar
Level 1 6061 Alloy, Black.
Seat
Saddle
Prologo Kappa RS, Black.
Seatpost
Level 1 6061 Alloy 27.2mm, 350mm, Black.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.37 mm | 1.41 mm | 1.44 mm | 1.47 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 591 mm | 585 mm | 591 mm | 598 mm | 607 mm |
| Rake | 54 mm | 44 mm | 45 mm | 45 mm | 44 mm |
| Trail | 60 mm | 64 mm | 60 mm | 57 mm | 56 mm |
| Stack | 507 mm | 529 mm | 550 mm | 570 mm | 591 mm |
| Reach | 381 mm | 387 mm | 390 mm | 396 mm | 402 mm |
| Top Tube Length | 522 mm | 537 mm | 552 mm | 572 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.6 ° | 73.3 ° | 72 ° |
| Seat Tube Length | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 73 ° | 73.3 ° |
| Head Tube Length | 110 mm | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 993 mm | 987 mm | 993 mm | 1000 mm | 1009 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 164 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 166 cm | 171 cm | 179 cm | 186 cm | 191 cm |
Model Overview
Endurance AL, Shimano Tiagra is a Ribble Endurance model. 180 bikes variations carry this model name so far. Take a sneak peek at all Ribble Endurance bikes models from 2020, by clicking here.
Model range prices
Ribble Endurance AL, Shimano Tiagra 2020 is the most economical model, with a starting price of 969$. Ribble Endurance SL R Series Disc, SRAM eTap AXS HRD 2020 on the other hand costs 7766$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Endurance bikes
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2020 and its price was 969$. Comparing this to the average Endurance bike price, we see that the price is 142.11% lower.
Endurance bikes average weight
The average weight for Endurance bikes is 8.2 kg (18.08 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Ribble Endurance AL, Shimano Tiagra it’s weighing 9.2 kg (20.28 lbs). At this weight, is considerably heavier than average. To sum up, it’s 12.2% heavier than the average weight of Endurance bikes.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Ribble Endurance AL, Shimano Tiagra 2020, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Ribble Endurance AL, Shimano Tiagra has Rim brakes installed. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Endurance AL, Shimano Tiagra comes in 5 sizes, that range from 158 cm – 191 cm (5.18 ft – 6.27 ft). In short, you can easily find one that suits you.
