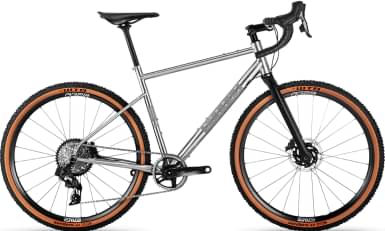

Ribble Gravel Ti – Hero, SRAM Force XPLR eTap AXS 2022
2022 Road
Estimate price |
6,400$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Groupset Force XPLR eTap, Force eTap -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XXS
152cm - 163cm
XXS
152cm - 163cm
XS
161cm - 171cm
XS
161cm - 171cm
SM
169cm - 176cm
SM
169cm - 176cm
MD
174cm - 181cm
MD
174cm - 181cm
LG
179cm - 186cm
LG
179cm - 186cm
XL
184cm - 194cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3AL/2.5V Titanium, Triple-Butted, Seamless Welds.
Suspension Fork
Gravel Ti, Full Carbon, Tapered, Carryall Mounts.
Drivetrain
Rear Derailleur
SRAM Force XPLR eTap AXS D1 Max 44T.
Shift Levers
SRAM Force eTap AXS 12 Speed.
Cassette
SRAM XG1271 D1 XPLR 12 Speed 10-44T.
Crank
SRAM Force D1 DUB 1x12 Speed, 40T.
Bottom Bracket
SRAM DUB Threaded BSA Road.
Chain
SRAM Force D1 with Powerlock 12-Speed.
Wheels
Rims
ENVE Foundation AG28 650b, 12x100F/12x142R.
Tires
Halo GXC Gravel, 650bx47mm, Tan Wall.
Brakes
Brakes
SRAM Force eTap AXS Hydraulic disc.
Disk Rotors
SRAM Centreline XR Centre Lock 160mm.
Cockpit
Stem
LEVEL 3 Carbon/Alloy, Ti Bolts, Black.
Handlebar
LEVEL Gravel Riser Flared, 420/510mm.
Headset
LEVEL 44, 44mm External (Available in a choice of colours in BikeBuilder).
Seat
Saddle
Brooks Cambium C15 All Weather.
Seatpost
LEVEL 3 Inline Carbon, 27.2mm, 350mm.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XXS | XS | XS | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.4 mm | 1.43 mm | 1.43 mm | 1.45 mm | 1.45 mm | 1.46 mm | 1.46 mm | 1.48 mm | 1.48 mm | 1.51 mm | 1.51 mm |
| Front Center | 595 mm | 595 mm | 591 mm | 591 mm | 611 mm | 611 mm | 625 mm | 625 mm | 641 mm | 641 mm | 648 mm | 648 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 74 mm | 80 mm | 86 mm | 58 mm | 64 mm | 59 mm | 65 mm | 50 mm | 57 mm | 57 mm | 63 mm |
| Stack | 531 mm | 531 mm | 552 mm | 552 mm | 571 mm | 571 mm | 590 mm | 590 mm | 609 mm | 609 mm | 631 mm | 631 mm |
| Reach | 378 mm | 378 mm | 387 mm | 387 mm | 394 mm | 394 mm | 403 mm | 403 mm | 412 mm | 412 mm | 418 mm | 418 mm |
| Top Tube Length | 514 mm | 514 mm | 528 mm | 528 mm | 556 mm | 556 mm | 576 mm | 576 mm | 591 mm | 591 mm | 608 mm | 608 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.3 ° | 73.3 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 440 mm | 460 mm | 460 mm | 480 mm | 480 mm | 500 mm | 500 mm | 520 mm | 520 mm | 540 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 90 mm | 90 mm | 110 mm | 110 mm | 130 mm | 130 mm | 150 mm | 150 mm | 170 mm | 170 mm | 190 mm | 190 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1026 mm | 1026 mm | 1022 mm | 1022 mm | 1043 mm | 1043 mm | 1058 mm | 1058 mm | 1074 mm | 1074 mm | 1081 mm | 1081 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 67 mm | 67 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 |
| Rider Min Height | 152 cm | 152 cm | 161 cm | 161 cm | 169 cm | 169 cm | 174 cm | 174 cm | 179 cm | 179 cm | 184 cm | 184 cm |
| Rider Max Height | 163 cm | 163 cm | 171 cm | 171 cm | 176 cm | 176 cm | 181 cm | 181 cm | 186 cm | 186 cm | 194 cm | 194 cm |
About this model
Gravel Ti – Hero, SRAM Force XPLR eTap AXS is part of the Ribble Gravel model. Ribble launched 22 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Ribble Gravel AL – Sport, SRAM Apex 1x 2022 is the cheapest bike model and costs 1662$. Ribble Gravel Ti – Hero, SRAM Force XPLR eTap AXS 2022 is the most expensive one and costs 5925$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2022 and its price was 5925$. Comparing the average cost of a Gravel bike to this one, you will see that Gravel Ti – Hero, SRAM Force XPLR eTap AXS price is 140.66% higher.
Gravel Ti – Hero, SRAM Force XPLR eTap AXS components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Gravel Ti – Hero, SRAM Force XPLR eTap AXS model has carbon wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ribble Gravel Ti – Hero, SRAM Force XPLR eTap AXS is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Gravel Ti – Hero, SRAM Force XPLR eTap AXS comes in 12 sizes, that range from 152 cm – 194 cm (4.99 ft – 6.36 ft). In short, you can easily find one that suits you.
