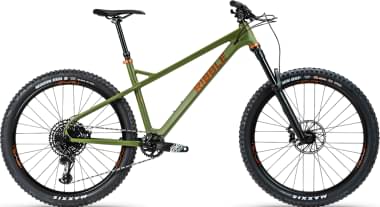

Ribble HT AL – Pro, SRAM GX Eagle 2022
2022 Mountain
Estimate price |
2,245$
Weight | 13 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 150mm -
Fork RockShox Revelation RC
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
180cm - 187cm
XL
185cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminium, Heat-Treated, Seamless Welds.
Suspension Fork
Rockshox Revelation RC, Diff Black, 150mm, 37mm Offset.
Drivetrain
Rear Derailleur
SRAM GX Eagle 12-Speed Long.
Shift Levers
SRAM GX Eagle Trigger Shifter.
Cassette
SRAM PG-1230 Eagle 11-50T.
Crank
SRAM GX Eagle DUB, 32T.
Bottom Bracket
SRAM DUB (MTB) BSA.
Chain
SRAM GX Eagle with Powerlock.
Wheels
Rims
LEVEL 35 27.5” Alloy TR, 15x110F/12x148R Thru-Axle.
Tires
Maxxis Minion DHF/DHR 3C MaxTerra EXO 27.5”x2.6”.
Brakes
Brakes
SRAM Level T Direct Mount Hydraulic.
Disk Rotors
SRAM Centreline 6-Bolt 180mm.
Cockpit
Stem
LEVEL XV 6061 Full CNC, Black 35x45mm.
Handlebar
LEVEL XV 7075DB 9° Backsweep/5° Upsweep, 35x800mm.
Headset
LEVEL 44, 44mm External Cups, Anodised Orange.
Seat
Saddle
WTB SL8 Pro, 142mm, Black.
Seatpost
LEVEL 150mm Dropper Post with Remote.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.31 mm | 1.28 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm |
| Front Center | 789 mm | 811 mm | 833 mm |
| Rake | 61 mm | 51 mm | 52 mm |
| Trail | 106 mm | 117 mm | 116 mm |
| Stack | 600 mm | 609 mm | 618 mm |
| Reach | 437 mm | 465 mm | 482 mm |
| Top Tube Length | 622 mm | 642 mm | 662 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 426 mm | 457 mm | 508 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1218 mm | 1240 mm | 1262 mm |
| Bottom Bracket Drop | 43 mm | 43 mm | 43 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 180 cm | 185 cm |
| Rider Max Height | 177 cm | 187 cm | 193 cm |
About this model
HT AL – Pro, SRAM GX Eagle belongs to the Ribble Ht model. 26 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Ribble HT Trail AL 29 – Sport, SRAM SX Eagle 2022 is the most affordable bike of this model and has a price of 1454$. On the other hand, Ribble HT Ti – Enthusiast, SRAM GX Eagle 12 Speed 2022, is the most expensive and costs 3117$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2022 and its price was 2078$. In conclusion, this bike price is 73.2% smaller than the price of the average Enduro bike.
Average weight for Enduro bikes
If we make a quick analysis of the average weight of an Enduro bike, we get 14.27 kg (31.46 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 13 kg (28.66 lbs), Ribble bike is a bit lighter than average. In short, the average Enduro bike weight is 9.77% higher than this one.
Overview of components
Fork
This bike has the RockShox Revelation RC fork installed. The fork’s travel is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Ribble HT AL – Pro, SRAM GX Eagle 2022, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The HT AL – Pro, SRAM GX Eagle comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Ribble HT AL – Pro, SRAM GX Eagle bike has 3 sizes, in the range of 165 cm – 193 cm (5.41 ft – 6.33 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Ribble model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
