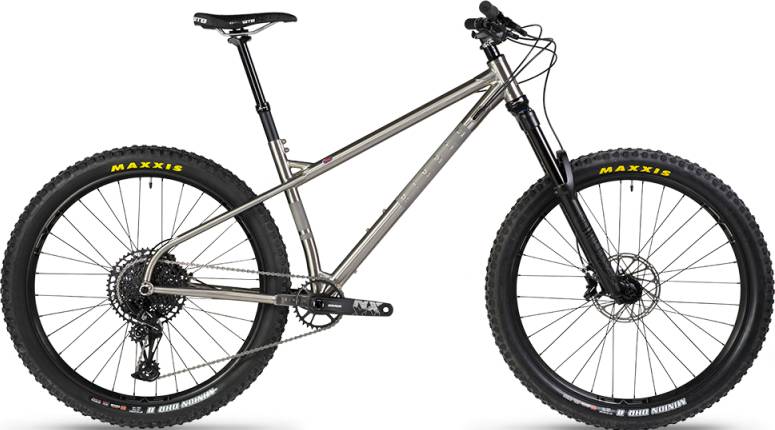

Ribble HT Ti, SRAM NX Eagle 12 Speed 2020
2020 Mountain
Estimate price |
3,397$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 27.5" -
Travel Front 150mm -
Fork RockShox Revelation RC
-
Groupset NX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3AL/2.5V Polished Titanium with brushed logos.
Suspension Fork
Rockshox Revelation RC 27.5, Diffusion Black 150mm.
Drivetrain
Rear Derailleur
SRAM NX Eagle Long Cage.
Shift Levers
SRAM NX Eagle.
Cassette
SRAM PG-1230 11-50T.
Crank
SRAM NX DUB 170 32T.
Bottom Bracket
SRAM DUB Threaded BSA 73mm.
Chain
SRAM NX Eagle.
Wheels
Rims
Level 35 27.5" Tubeless Ready, 32 Hole
Tires
Maxxis Minion 27.5 x 2.6“, Black.
Brakes
Brakes
SRAM Guide R.
Disk Rotors
SRAM Centreline 6-Bolt 180/160.
Cockpit
Stem
Level XI - 35x40mm.
Handlebar
Level XI - 35x800mm
Grips
Level Lock-On
Headset
Level 44
Seat
Saddle
WTB Koda Race.
Seatpost
Level 150mm Hydraulic Dropper 30.9mm.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.33 mm | 1.3 mm | 1.27 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 740 mm | 760 mm | 780 mm | 800 mm |
| Rake | 27 mm | 25 mm | 23 mm | 22 mm |
| Trail | 143 mm | 146 mm | 148 mm | 149 mm |
| Stack | 606.5 mm | 615.5 mm | 624.5 mm | 633.5 mm |
| Reach | 445.1 mm | 462.5 mm | 480 mm | 497.5 mm |
| Top Tube Length | 617 mm | 637 mm | 657 mm | 677 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 356 mm | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1174 mm | 1194 mm | 1214 mm | 1234 mm |
| Bottom Bracket Drop | 43 mm | 43 mm | 43 mm | 43 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
HT Ti, SRAM NX Eagle 12 Speed belongs to the Ribble Ht model. Ribble released 26 bikes variations of this model so far. You can easily view all of the Ribble Ht bikes models from 2020, here.
Model range prices
Ribble HT 725 – Sport Build, SX Eagle 2020 is the most affordable bike of this model and has a price of 1455$. On the other hand, Ribble HT Ti, SRAM XX1 Eagle 12 Speed 2020, is the most expensive and costs 6291$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, even though the average price of an Enduro bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Ribble HT Ti, SRAM NX Eagle 12 Speed price was 3145$. Comparing this to the average Enduro bike price, we see that the price is 14.44% smaller.
HT Ti, SRAM NX Eagle 12 Speed components
Fork
The HT Ti, SRAM NX Eagle 12 Speed comes factory-installed with the RockShox Revelation RC fork. This has a travel range of 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the HT Ti, SRAM NX Eagle 12 Speed model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The HT Ti, SRAM NX Eagle 12 Speed has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Ribble model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
