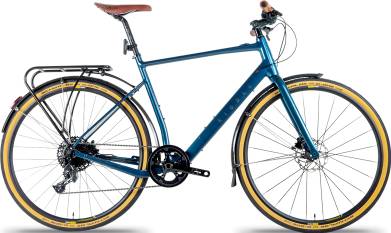

Ribble Hybrid AL e – Fully Loaded Edition 2020
2020 E-bike
Estimate price |
2,621$
Weight | 14.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset NX, SRAM -
Suspension Rigid -
Motor 250W hub-drive -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
163cm - 171cm
MD
169cm - 179cm
LG
177cm - 186cm
XL
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 Heat Treated Aluminium
Suspension Fork
Full Carbon Fibre Monocoque
Drivetrain
Rear Derailleur
SRAM NX Long Cage.
Shift Levers
SRAM NX Trigger Shifter 11 Speed
Cassette
SRAM PG-1130 11-42T.
Crank
SRAM S350 GXP 42T.
Bottom Bracket
SRAM GXP Team BB86.
Chain
SRAM PC1130 with Powerlock.
Pedals
Wellgo MTB Plastic, Black.
Wheels
Rims
Mavic Aksium Elite Evo UST EBM.
Tires
Schwalbe Marathon Rigid 700x35c, Bk/Reflex.
Brakes
Brakes
Shimano UR300 Flat Mount Hydraulic Disc
Brake Levers
Shimano BL-MT201 Hydraulic.
Disk Rotors
Tektro Lyra 6-Bolt 160mm.
Cockpit
Stem
Level Urban Alloy, Black
Handlebar
Level Urban Alloy 640mm, Black
Grips
Level Classic Grips, Brown.
Seat
Saddle
Ribble Classic, Brown.
Seatpost
Level 1 Alloy 27.2mm, 350mm, Black
Motor & Battery
Motor
Ebikemotion X35 Smart System 36V/250W.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.41 mm | 1.42 mm | 1.46 mm |
| Front Center | 608 mm | 637 mm | 654 mm | 682 mm |
| Rake | 48 mm | 48 mm | 48 mm | 47 mm |
| Trail | 69 mm | 69 mm | 69 mm | 70 mm |
| Stack | 533 mm | 574 mm | 594 mm | 633 mm |
| Reach | 393 mm | 408 mm | 418 mm | 433 mm |
| Top Tube Length | 555 mm | 588 mm | 603 mm | 637 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 420 mm | 490 mm | 540 mm | 590 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 122 mm | 165 mm | 190 mm | 230 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1042 mm | 1071 mm | 1088 mm | 1116 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 163 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 171 cm | 179 cm | 186 cm | 193 cm |
Model Overview
Hybrid AL e – Fully Loaded Edition completes the Ribble E Hybrid model. There are 14 e-bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Ribble Hybrid AL e – Standard Edition 2020 is the most economical model, with a starting price of 2304$. Ribble Hybrid AL e – Fully Loaded Edition 2020 on the other hand costs 2426$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2020 for 2426$. In conclusion, this e-bike price is 2.23% lower than the price of the average Hybrid e-bike.
Average weight for Hybrid e-bikes
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Hybrid AL e – Fully Loaded Edition weighs 14.5 kg (31.97 lbs) and is much lighter than the average. In short, the average Hybrid e-bike weight is 64.07% higher than this one.
Overview of components
Fork material
Hybrid AL e – Fully Loaded Edition has a carbon fork, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on Hybrid AL e – Fully Loaded Edition are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Ribble Hybrid AL e – Fully Loaded Edition has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 163 cm – 193 cm (5.35 ft – 6.33 ft). In short, you can easily find one that suits you.
