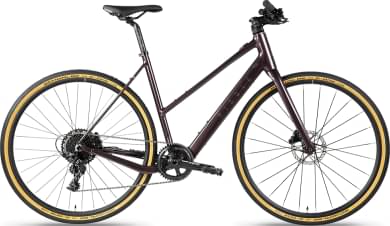

Ribble Hybrid AL e Step Through 2021
2021 E-bike
Estimate price |
3,072$
Weight | 13.75 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Apex 1 -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Panasonic 36V/250Wh, 18650GA-10S/2P. -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 169cm
MD/LG
167cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminium, Heat-Treated, Seamless Weld.
Suspension Fork
Full Carbon Monocoque, Tapered Steerer.
Drivetrain
Rear Derailleur
SRAM Apex 1 11-Speed Long Cage.
Shift Levers
SRAM Apex 11-Speed Flat Bar.
Cassette
SRAM PG-1130 11-42T.
Crank
SRAM Apex 1 GXP 42T.
Bottom Bracket
SRAM GXP Team Press Fit BB86.
Chain
SRAM PC-1110 11-Speed.
Pedals
Flat Plastic, Black.
Wheels
Front Hub
MAHLE Ebikemotion X35 M1, 36V/250W.
Rear Hub
MAHLE Ebikemotion X35 M1, 36V/250W.
Rims
Mavic Ksyrium S Disc UST, 700c, 12x100F/12x148R.
Tires
Schwalbe G-One, Tubeless-Ready, 700x40mm, Black/Tan.
Brakes
Brakes
Shimano BL-MT201/UR300 Hydraulic Disc.
Disk Rotors
SRAM Centreline 6-Bolt 160mm.
Cockpit
Stem
LEVEL 2 3D-Forged 6061 Alloy, Black.
Handlebar
LEVEL Urban 6061 Alloy, 640mm, Black.
Grips
LEVEL Urban Lock-On, Black.
Headset
LEVEL H56 Integrated, Black.
Seat
Saddle
Selle Royale Vivo Ergo, Black.
Seatpost
LEVEL 1 6061 Alloy, 27.2mm, 350mm, Black.
Motor & Battery
Motor
MAHLE Ebikemotion X35 M1, 36V/250W.
Battery
Panasonic 36V/250Wh, 18650GA-10S/2P.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | MD/LG |
|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.53 mm |
| Front Center | 596 mm | 627 mm |
| Rake | 51 mm | 50 mm |
| Trail | 69 mm | 71 mm |
| Stack | 549 mm | 578 mm |
| Reach | 357 mm | 379 mm |
| Top Tube Length | 512 mm | 542 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° |
| Seat Tube Length | 460 mm | 520 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° |
| Head Tube Length | 140 mm | 170 mm |
| Chainstay Length | 427 mm | 427 mm |
| Wheelbase | 1013 mm | 1045 mm |
| Bottom Bracket Drop | 69 mm | 69 mm |
| Wheels | 700 | 700 |
| Rider Min Height | 155 cm | 167 cm |
| Rider Max Height | 169 cm | 180 cm |
About this model
Hybrid AL e Step Through is part of the Ribble E Hybrid model. Ribble launched 14 e-bikes of this model so far. You can easily view all of the Ribble E Hybrid e-bikes models from 2021, here.
Model range prices
Ribble Hybrid AL e 2021 is the most economical model, with a starting price of 2719$. Ribble Hybrid AL e Step Through, Fully Loaded Edition 2021 on the other hand costs 2967$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2021 and its price was 2843$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Hybrid AL e Step Through price is 14.64% more expensive.
Hybrid e-bikes average weight
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 13.75 kg (30.31 lbs), the Hybrid AL e Step Through model is much lighter than average. In conclusion, the average Hybrid e-bike weighs 73.02% more than Hybrid AL e Step Through.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the Hybrid AL e Step Through e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Hybrid AL e Step Through has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 2 sizes. They vary from 155 cm – 180 cm (5.09 ft – 5.91 ft). In conclusion, you won’t have a problem finding one that suits you.
