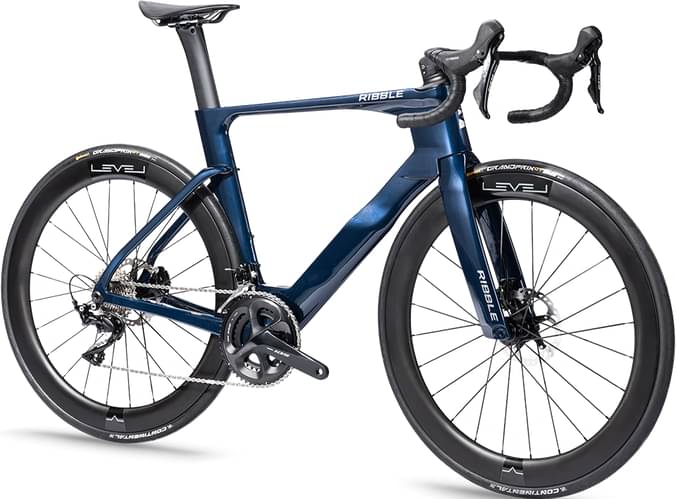

Ribble Ultra SL – Sport, Shimano 105 2022
2022 Road
Estimate price |
4,683$
Weight | 8.65 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
160cm - 166cm
SM
164cm - 171cm
MD
169cm - 179cm
LG
177cm - 186cm
XL
184cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Toray T1000/T800 Carbon Monocoque.
Suspension Fork
Ultra SL Disc, Full Carbon, Tapered Steerer.
Drivetrain
Rear Derailleur
Shimano 105 R7000 Medium Cage.
Front Derailleur
Shimano 105 R7000 Braze-On.
Shift Levers
Shimano 105 R7020 11-Speed Hydraulic.
Cassette
Shimano 105 R7000 11-Speed.
Crank
Shimano 105 R7000, 2x11 Speed.
Bottom Bracket
Shimano BB-R60 Threaded BSA.
Chain
Shimano 105 HG601 11-Speed Super Narrow.
Wheels
Rims
LEVEL DB56 Sport Carbon, 12x100F/12x142R.
Tires
Continental Grand Prix Folding, Black/Black.
Brakes
Brakes
Shimano 105 R7070 Flat Mount Hydraulic.
Disk Rotors
Shimano RT81 Centre Lock 160mm.
Cockpit
Handlebar
LEVEL 5 Carbon Integrated, Black.
Headset
Ribble SL/SLR 1.5”x1.5”, Black.
Seat
Saddle
Selle Italia Model X Superflow, Black.
Seatpost
Ribble Ultra Aero Carbon, 10mm Layback.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.36 mm | 1.39 mm | 1.4 mm | 1.42 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 518 mm | 575 mm | 585 mm | 598 mm | 613 mm |
| Rake | 53 mm | 45 mm | 41 mm | 45 mm | 46 mm |
| Trail | 53 mm | 56 mm | 60 mm | 53 mm | 52 mm |
| Stack | 508 mm | 525 mm | 547 mm | 566 mm | 585 mm |
| Reach | 381 mm | 387 mm | 394 mm | 403 mm | 412 mm |
| Top Tube Length | 517 mm | 537 mm | 557 mm | 577 mm | 592 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73.3 ° | 73.3 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 72 ° | 73 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 105 mm | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 983 mm | 977 mm | 987 mm | 1001 mm | 1016 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 164 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 166 cm | 171 cm | 179 cm | 186 cm | 191 cm |
Model Overview
Ultra SL – Sport, Shimano 105 is part of the Ribble Ultra model. There are 48 bikes that carry this model name. Take a sneak peek at all Ribble Ultra bikes models from 2022, by clicking here.
Model range prices
Ribble Ultra Tri Disc – Sport, Shimano 105 & Carbon Wheels 2022 is the cheapest bike model and costs 3638$. Ribble Ultra SL R – Hero, Shimano Dura Ace Di2 2022 is the most expensive one and costs 9730$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Aero bikes
If you want an acceptable Aero bike you should know that the average price is 4211$. However, even if your budget is less than the average, you might still be able to get a top-quality Aero bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2022 and its price was 4256$. Comparing this to the average Aero bike price, we see that the price is 1.07% more expensive.
Aero bikes average weight
If we make a quick analysis of the average weight of an Aero bike, we get 7.34 kg (16.18 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much heavier than average, Ultra SL – Sport, Shimano 105 has a weight of 8.65 kg (19.07 lbs). In short, the average Aero bike weight is 17.85% lower than this one.
Overview of components
Fork material
Ultra SL – Sport, Shimano 105 has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the Ultra SL – Sport, Shimano 105 model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ribble Ultra SL – Sport, Shimano 105 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Ultra SL – Sport, Shimano 105 comes in 5 sizes, that range from 160 cm – 191 cm (5.25 ft – 6.27 ft). In short, you can easily find one that suits you.
