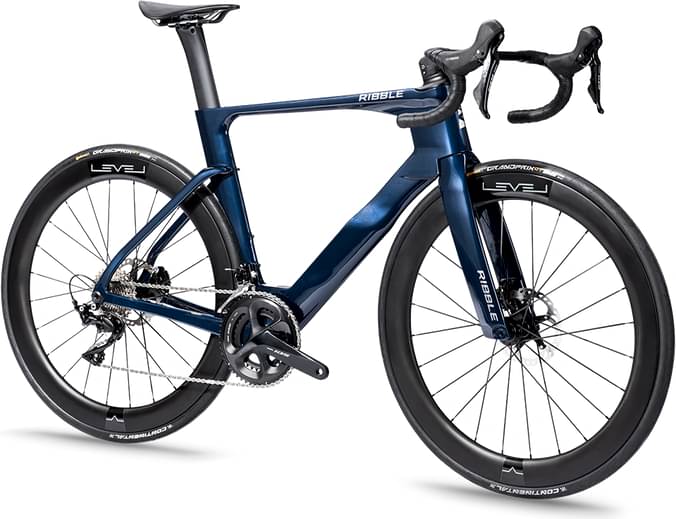

Ribble Ultra SL – Sport, Shimano 105 2023
2023 Road
Estimate price |
3,612$
Weight | 8.65 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
160cm - 166cm
SM
164cm - 171cm
MD
169cm - 179cm
LG
177cm - 186cm
XL
184cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Toray T1000/T800 Carbon Monocoque.
Suspension Fork
Ultra SL Disc, Full Carbon, Tapered Steerer.
Drivetrain
Rear Derailleur
Shimano 105 R7000 Medium Cage.
Front Derailleur
Shimano 105 R7000 Braze-On.
Shift Levers
Shimano 105 R7020 11-Speed Hydraulic.
Cassette
Shimano 105 R7000 11-Speed.
Crank
Shimano 105 R7000, 2x11 Speed.
Bottom Bracket
Shimano BB-R60 Threaded BSA.
Chain
Shimano 105 HG601 11-Speed Super Narrow.
Wheels
Rims
Mavic Ksyrium 30 Disc Alloy, 12x100F/12x142R.
Tires
Continental Ultra Sport III, Wire Bead, Black/Black.
Brakes
Brakes
Shimano 105 R7070 Flat Mount Hydraulic.
Cockpit
Handlebar
LEVEL 5 Carbon Integrated, Black.
Headset
Ribble SL/SLR 1.5”x1.5”, Black.
Seat
Saddle
Prologo Kappa RS, Unisex, Black.
Seatpost
Ribble Ultra Aero Carbon, 10mm Layback.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.36 mm | 1.39 mm | 1.4 mm | 1.42 mm |
| Bottom Bracket Height | 267 mm | 267 mm | 267 mm | 267 mm | 267 mm |
| Front Center | 518 mm | 575 mm | 585 mm | 598 mm | 613 mm |
| Rake | 53 mm | 45 mm | 41 mm | 45 mm | 46 mm |
| Trail | 53 mm | 56 mm | 60 mm | 53 mm | 52 mm |
| Stack | 508 mm | 525 mm | 547 mm | 566 mm | 585 mm |
| Reach | 381 mm | 387 mm | 394 mm | 403 mm | 412 mm |
| Top Tube Length | 517 mm | 537 mm | 557 mm | 577 mm | 592 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73.3 ° | 73.3 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 72 ° | 73 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 105 mm | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 983 mm | 977 mm | 987 mm | 1001 mm | 1016 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 164 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 166 cm | 171 cm | 179 cm | 186 cm | 191 cm |
Model Overview
Ultra SL – Sport, Shimano 105 is a Ribble Ultra model. Ribble launched 48 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Ribble Ultra SL – Sport, Shimano 105 2023 is the most economical model, with a starting price of 3283$. Ribble Ultra SL R – Hero, Shimano Dura Ace Di2 2023 on the other hand costs 12163$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Aero bikes
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 3283$. Comparing this to the average Aero bike price, we see that the price is 28.27% lower.
Aero bikes average weight
The average weight for Aero bikes is 7.34 kg (16.18 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much heavier than average, Ultra SL – Sport, Shimano 105 has a weight of 8.65 kg (19.07 lbs). In conclusion, the average Aero bike weighs 17.85% less than Ultra SL – Sport, Shimano 105.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the Ultra SL – Sport, Shimano 105 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ultra SL – Sport, Shimano 105 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Ribble Ultra SL – Sport, Shimano 105 bike has 5 sizes, in the range of 160 cm – 191 cm (5.25 ft – 6.27 ft). In short, you can easily find one that suits you.
