Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset FSA -
Suspension Rigid
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Arena Carbon
Suspension Fork
4ZA F-Splitfork track
Drivetrain
Cassette
Miche 16
Crank
FSA track carbon 52 - 170mm
Chain
Miche Primato pista
Wheels
Rims
4ZA Cirrus pro T50 track
Tires
Continental Tempo II 22mm
Cockpit
Stem
4ZA Cirrus
Handlebar
4ZA Cirrus compact
Seat
Saddle
Selle San Marco Aspide TT
Seatpost
Ridley ISP
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.24 mm | 1.21 mm | 1.23 mm | 1.17 mm | 1.16 mm |
| Bottom Bracket Height | 291 mm | 291 mm | 291 mm | 291 mm | 291 mm |
| Front Center | 553 mm | 558 mm | 574 mm | 594 mm | 619 mm |
| Rake | 30 mm | 30 mm | 29 mm | 30 mm | 30 mm |
| Trail | 68 mm | 65 mm | 66 mm | 65 mm | 65 mm |
| Stack | 476 mm | 478 mm | 497 mm | 497 mm | 516 mm |
| Reach | 384 mm | 394 mm | 405 mm | 424 mm | 444 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 74.5 ° | 74.5 ° | 75 ° |
| Seat Tube Length | 513 mm | 513 mm | 510 mm | 510 mm | 505 mm |
| Head Tube Angle | 73.5 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 120 mm | 140 mm |
| Chainstay Length | 374 mm | 374 mm | 374 mm | 374 mm | 374 mm |
| Wheelbase | 922 mm | 928 mm | 944 mm | 964 mm | 989 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 769 mm | 769 mm | 779 mm | 779 mm | 799 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

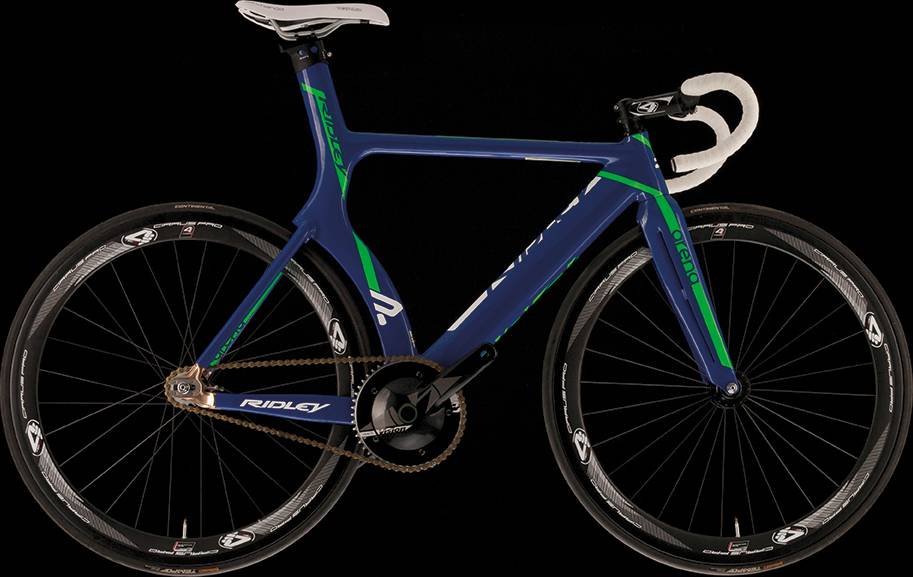

Arena Carbon belongs to the Ridley Arena model. Ridley launched 17 bikes of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Track bikes average price
If you want to purchase a solid Track bike, it is important to know that the average cost is 1503$. However, even though the average price of a Track bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The Arena Carbon 2017 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Sizes
Ridley Arena Carbon bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
