Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM HLO
-
Groupset Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TIG-welded 6061 triple-hardened and triple-butted aluminum frame. Equipped with: Integrated shifter and brake cables, Tapered head tube with semi-integrated 1 1/8” 1 1/2”
Suspension Fork
SR Suntour XCM-HLO - 100 mm travel - Coil spring sys-tem - Lock Out
Drivetrain
Rear Derailleur
Shimano Acera-Alivio
Front Derailleur
Shimano Acera-Alivio
Shift Levers
Shimano Acera-Alivio
Cassette
Shimano, 9-Speed, 11-34T
Crank
Shimano Acera 40/30/22T
Chain
KMC X9
Wheels
Rims
4ZA XCD
Tires
Kenda 29" 2,00 K1112
Brakes
Brakes
Tektro HD-M285
Cockpit
Stem
Forza Stratos
Handlebar
Forza Stratos
Seat
Saddle
Forza Stratos
Seatpost
Forza Stratos
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.51 mm | 1.46 mm | 1.44 mm |
| Bottom Bracket Height | 316 mm | 312 mm | 312 mm | 311 mm |
| Front Center | 641 mm | 650 | 664 mm | 683 mm |
| Rake | 48 mm | 27 mm | 16 mm | 21 mm |
| Trail | 78 mm | 108 mm | 119 mm | 107 mm |
| Stack | 617 mm | 622 mm | 631 mm | 650 |
| Reach | 392 mm | 411 mm | 433 mm | 452 mm |
| Top Tube Length | 577 mm | 582 mm | 602 mm | 632 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 72 ° |
| Seat Tube Length | 380 mm | 375 mm | 480 mm | 530 mm |
| Head Tube Angle | 71 ° | 70 ° | 70 ° | 71 ° |
| Head Tube Length | 95 mm | 110 mm | 115 mm | 130 mm |
| Chainstay Length | 447 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1082 mm | 1085 mm | 1099 mm | 1118 mm |
| Bottom Bracket Drop | 58 mm | 62 mm | 62 mm | 63 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

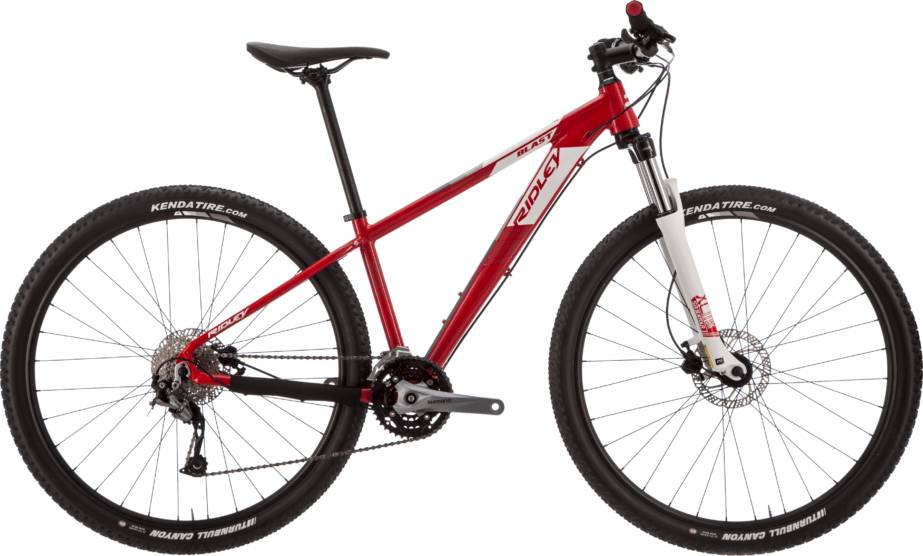

Blast Alivio is a Ridley Blast model. 17 bikes variations carry this model name so far. You can easily view all of the Ridley Blast bikes models from 2018, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Blast Alivio components
Fork
The SunTour XCM HLO is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Ridley Blast Alivio 2018, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Blast Alivio comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
