Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Dean, 24-30T UD Carbon, Fast Technology
Suspension Fork
Dean Aero 24-30T Aero Fork
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra
Cassette
Shimano
Crank
Rotor 3D30 Aero
Chain
KMC x11
Wheels
Rims
Fulcrum Racing 4
Tires
Vittoria Rubino Pro
Brakes
Brakes
Shimano Ultegra / Tektro T750R Direct Mount
Cockpit
Stem
Profile Design Zeroseven
Handlebar
Profile Design T2 Wing Econ
Seat
Saddle
Forza Tri
Seatpost
Dean Aero Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 57cm | 60cm | 63cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.26 mm | 1.28 mm | 1.28 mm | 1.27 mm | 1.27 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 579 mm | 583 mm | 594 mm | 619 mm | 639 mm |
| Rake | 45 mm | 41 mm | 43 mm | 45 mm | 45 mm |
| Trail | 68 mm | 66 mm | 58 mm | 56 mm | 56 mm |
| Stack | 486 mm | 507 mm | 523 mm | 541 mm | 561 mm |
| Reach | 386 mm | 396 mm | 409 mm | 426 mm | 440 mm |
| Top Tube Length | 498 mm | 513 mm | 528 mm | 549 mm | 569 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 76 ° |
| Seat Tube Length | 486 mm | 510 mm | 527 mm | 554 mm | 575 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 84 mm | 101 mm | 116 mm | 135 mm | 156 mm |
| Chainstay Length | 396 mm | 396 mm | 396 mm | 396 mm | 396 mm |
| Wheelbase | 963 mm | 967 mm | 978 mm | 1003 mm | 1023 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 743 mm | 764 mm | 780 mm | 798 mm | 818 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

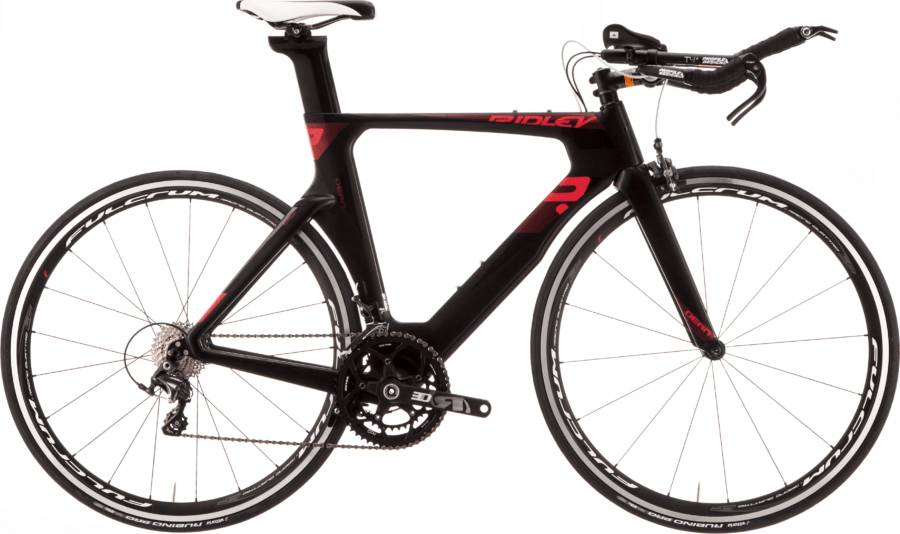

Dean Ultegra is a Ridley Dean model. 31 bikes variations carry this model name so far. You can easily view all of the Ridley Dean bikes models from 2018, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Triathlon bikes
According to our math, the average price for a trustworthy Triathlon bike is 4177$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Triathlon bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on Dean Ultegra are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Dean Ultegra comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
