Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Dean, 24-30T UD Carbon, Fast Technology
Suspension Fork
Dean Aero 24-30T Aero Fork
Drivetrain
Rear Derailleur
Shimano Ultegra Di2
Front Derailleur
Shimano Ultegra Di2
Shift Levers
Shimano Ultegra Di2
Cassette
Shimano
Crank
Rotor Flow
Chain
KMC x11
Wheels
Rims
Fulcrum Racing 4
Tires
Vittoria Rubino Pro
Brakes
Brakes
Shimano Ultegra / Tektro T750R Direct Mount
Cockpit
Stem
Forza Dean Fast Integrated
Handlebar
Forza Dean Fast Integrated
Seat
Saddle
Forza TT
Seatpost
Dean Aero Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 57cm | 60cm | 63cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.26 mm | 1.28 mm | 1.28 mm | 1.27 mm | 1.27 mm |
| Bottom Bracket Height | 261 mm | 261 mm | 261 mm | 261 mm | 261 mm |
| Front Center | 579 mm | 583 mm | 594 mm | 619 mm | 639 mm |
| Rake | 45 mm | 41 mm | 43 mm | 45 mm | 45 mm |
| Trail | 68 mm | 66 mm | 58 mm | 56 mm | 56 mm |
| Stack | 486 mm | 507 mm | 523 mm | 541 mm | 561 mm |
| Reach | 386 mm | 396 mm | 409 mm | 426 mm | 440 mm |
| Top Tube Length | 498 mm | 513 mm | 528 mm | 549 mm | 569 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 76 ° |
| Seat Tube Length | 486 mm | 510 mm | 527 mm | 554 mm | 575 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 84 mm | 101 mm | 116 mm | 135 mm | 156 mm |
| Chainstay Length | 396 mm | 396 mm | 396 mm | 396 mm | 396 mm |
| Wheelbase | 963 mm | 967 mm | 978 mm | 1003 mm | 1023 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 743 mm | 764 mm | 780 mm | 798 mm | 818 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

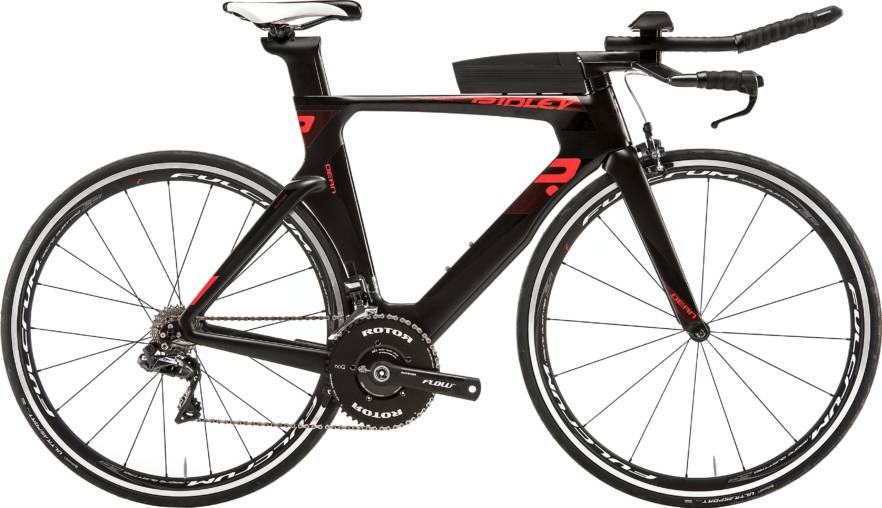

Dean Ultegra Di2 is a Ridley Dean model. 31 bikes variations carry this model name so far. Take a sneak peek at all Ridley Dean bikes models from 2018, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Triathlon bikes
If you want an acceptable Triathlon bike you should know that the average price is 4177$. However, this doesn’t mean that if you spend less money on a Triathlon bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
Dean Ultegra Di2 has a carbon fork, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When leaving the production line, the Dean Ultegra Di2 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ridley Dean Ultegra Di2 is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
