Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fenix A, Triple Butted Hydroformed 6061-T6 Aluminium
Suspension Fork
Fenix SL, 24T HM UD Carbon
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano 105
Cassette
Shimano 105 11/32
Crank
Shimano RS510 50/34
Chain
KMC x11
Wheels
Rims
Forza RC31
Tires
Vittoria Zaffiro
Brakes
Brakes
Forza Stratos
Cockpit
Stem
Forza Stratos
Handlebar
Forza Stratos
Seat
Saddle
Forza Stratos
Seatpost
Forza Stratos
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 57cm | 60cm | 63cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.4 mm | 1.4 mm | 1.46 mm | 1.5 mm | 1.6 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 270 mm | 270 mm | 273 mm | 266 mm |
| Front Center | 575 mm | 575 mm | 581 mm | 591 mm | 605 mm | 637 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 68 mm |
| Trail | 64 mm | 63 mm | 57 mm | 53 mm | 53 mm | 26 mm |
| Stack | 504 mm | 523 mm | 539 mm | 569 mm | 595 mm | 636 mm |
| Reach | 379 mm | 374 mm | 384 mm | 390 mm | 396 mm | 398 mm |
| Top Tube Length | 514 mm | 524 mm | 544 mm | 564 mm | 584 mm | 599 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm | 540 mm | 570 mm | 600 mm |
| Head Tube Angle | 71.8 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 107 mm | 127 mm | 142 mm | 172 mm | 202 mm | 220 mm |
| Chainstay Length | 409 mm | 409 mm | 409 mm | 409 mm | 412 mm | 424 mm |
| Wheelbase | 974 mm | 974 mm | 981 mm | 991 mm | 1009 mm | 1051 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 66 mm | 66 mm | 63 mm | 70 mm |
| Standover Height | 738 mm | 760 mm | 784 mm | 815 mm | 844 mm | 867 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

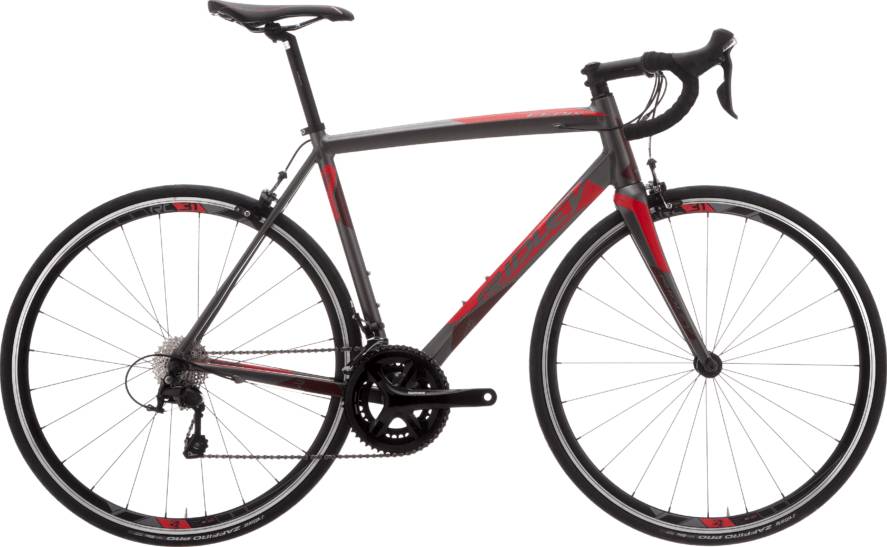

Fenix A 105 Mix is a Ridley Fenix model. There are 107 bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Endurance bikes average price
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Fenix A 105 Mix components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
As for the wheels, Ridley Fenix A 105 Mix 2018, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
