Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fenix C 24T HM Unidirectional carbon
Suspension Fork
Fenix C 24T HM Unidirectional carbon
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano ST-RS685
Cassette
Shimano 105, 11-28
Crank
Shimano Ultegra 52/36
Chain
KMC X11
Wheels
Rims
DT Swiss R24 Spline DB
Tires
Continental Ultrasport Wire 25mm
Brakes
Brakes
Shimano BR-RS785 Hydraulic
Brake Levers
Shimano ST-RS685
Cockpit
Stem
4ZA Stratos
Handlebar
4ZA Stratos
Seat
Saddle
4ZA Stratos Dynamic Comfort
Seatpost
4ZA Stratos
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.42 mm | 1.42 mm | 1.48 mm | 1.51 mm | 1.55 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 270 mm | 270 mm | 273 mm | 273 mm |
| Front Center | 569 mm | 574 mm | 576 mm | 589 mm | 598 mm | 607 mm |
| Rake | 41 mm | 42 mm | 39 mm | 43 mm | 34 mm | 36 mm |
| Trail | 67 mm | 66 mm | 63 mm | 56 mm | 65 mm | 60 mm |
| Stack | 498 mm | 523 mm | 538 mm | 568 mm | 595 mm | 618 mm |
| Reach | 373 mm | 368 mm | 378 mm | 383 mm | 393 mm | 398 mm |
| Top Tube Length | 489 mm | 498 mm | 519 mm | 542 mm | 560 mm | 576 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 175 mm | 205 mm | 230 mm |
| Chainstay Length | 403 mm | 403 mm | 403 mm | 403 mm | 406 mm | 406 mm |
| Wheelbase | 962 mm | 967 mm | 970 mm | 983 mm | 996 mm | 1005 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 66 mm | 66 mm | 63 mm | 63 mm |
| Standover Height | 683 mm | 733 mm | 743 mm | 773 mm | 803 mm | 833 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

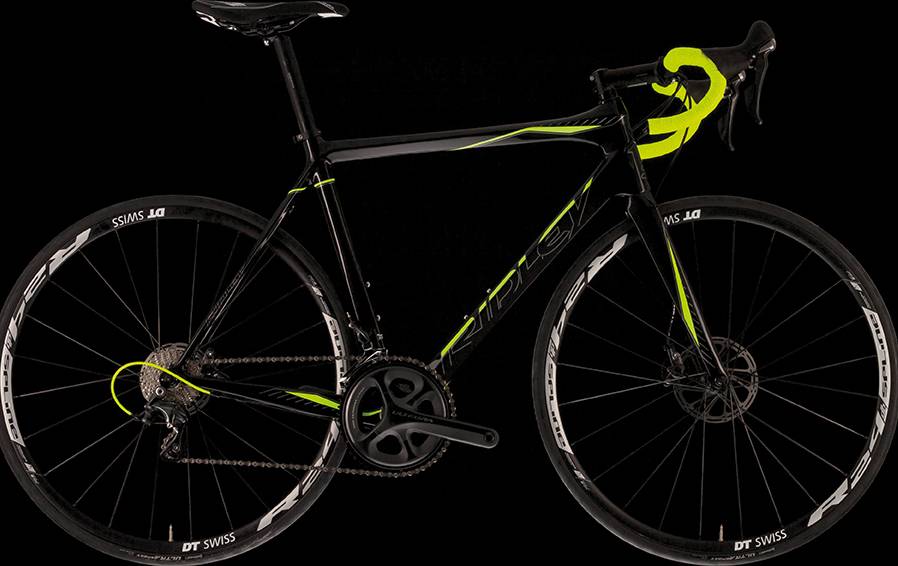

Fenix Carbon Disc ULTEGRA belongs to the Ridley Fenix model. Ridley released 107 bikes variations of this model so far. Take a sneak peek at all Ridley Fenix bikes models from 2017, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Endurance bikes average price
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Fenix Carbon Disc ULTEGRA components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the Fenix Carbon Disc ULTEGRA bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ridley Fenix Carbon Disc ULTEGRA is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
