Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fenix C 24T HM Unidirectional carbon
Suspension Fork
Fenix C 24T HM Unidirectional carbon
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra
Cassette
Shimano 105, 11-28
Crank
Shimano RS500 50/34
Chain
KMC X11
Wheels
Rims
4ZA RC31
Tires
Continental Ultrasport Wire Bead 25mm
Brakes
Brakes
4ZA Cirrus
Brake Levers
Shimano Ultegra
Cockpit
Stem
4ZA
Handlebar
4ZA
Seat
Saddle
4ZA
Seatpost
4ZA
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.42 mm | 1.42 mm | 1.48 mm | 1.51 mm | 1.55 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 270 mm | 270 mm | 273 mm | 273 mm |
| Front Center | 569 mm | 574 mm | 576 mm | 589 mm | 598 mm | 607 mm |
| Rake | 41 mm | 42 mm | 39 mm | 43 mm | 34 mm | 36 mm |
| Trail | 67 mm | 66 mm | 63 mm | 56 mm | 65 mm | 60 mm |
| Stack | 498 mm | 523 mm | 538 mm | 568 mm | 595 mm | 618 mm |
| Reach | 373 mm | 368 mm | 378 mm | 383 mm | 393 mm | 398 mm |
| Top Tube Length | 489 mm | 498 mm | 519 mm | 542 mm | 560 mm | 576 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 175 mm | 205 mm | 230 mm |
| Chainstay Length | 403 mm | 403 mm | 403 mm | 403 mm | 406 mm | 406 mm |
| Wheelbase | 962 mm | 967 mm | 970 mm | 983 mm | 996 mm | 1005 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 66 mm | 66 mm | 63 mm | 63 mm |
| Standover Height | 683 mm | 733 mm | 743 mm | 773 mm | 803 mm | 833 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

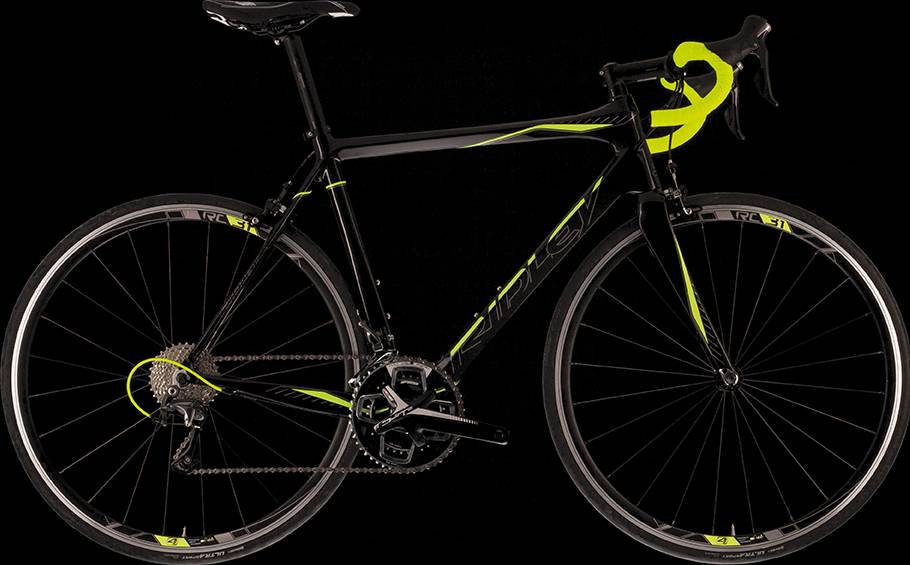

Fenix Carbon ULTEGRA MIX is a Ridley Fenix model. Ridley released 107 bikes variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Endurance bikes average price
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The Fenix Carbon ULTEGRA MIX 2017 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Fenix Carbon ULTEGRA MIX has Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
