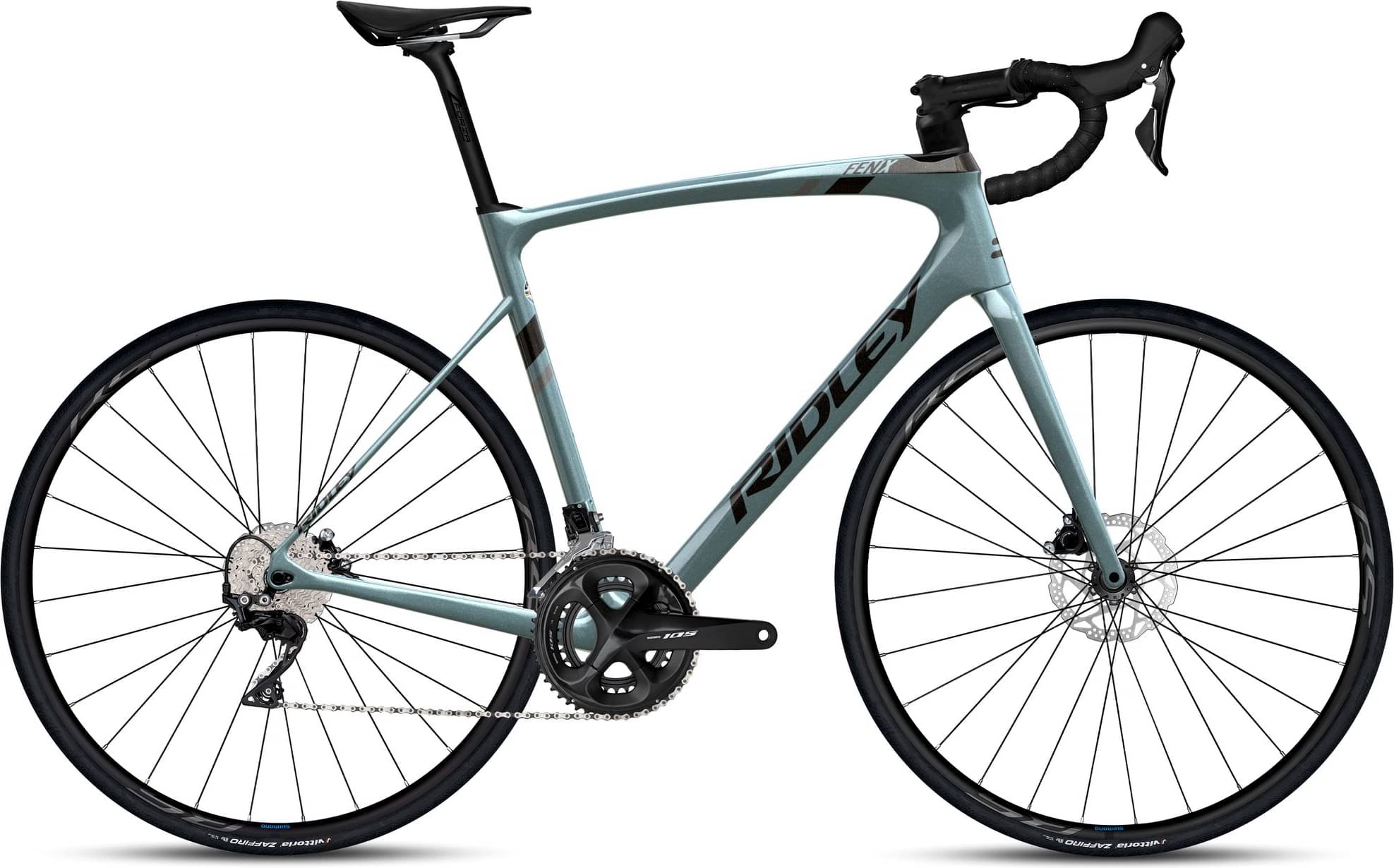

Ridley Fenix Disc – Shimano 105 – 2×12 2023
2023 Road
Estimate price |
2,981$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fenix, 24T UD Carbon, Diamond Shape tubing, TA 12x142mm
Suspension Fork
Fenix, 30T-24T HM UD Carbon, TA 12x100 mm
Drivetrain
Rear Derailleur
Shimano 105 - 2x12
Front Derailleur
Shimano 105 - 2x12
Shift Levers
Shimano 105 - 2x12
Cassette
Shimano 105// 12s // 11-34
Crank
Shimano 105 // 50/34 // 172mm
Pedals
Not included **
Wheels
Rims
Front: 4ZA Norte DB F 20TL -3BF V2- NO STI, Rear: 4ZA Norte DB R 20TL -3BF V2 SHI- NO STI
Brakes
Brakes
Flat Mount
Cockpit
Stem
Forza Stratos // 110 mm // Black Glossy
Handlebar
Forza Stratos, Compact // 420mm (cc) // Black Glossy
Seat
Saddle
Selle Italia Model X // Black
Seatpost
Forza Stratos // 15mm Offset // 350mm // 27,2mm // Black Glossy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.41 mm | 1.45 mm | 1.48 mm | 1.51 mm |
| Bottom Bracket Height | 268 mm | 270 mm | 270 mm | 273 mm | 273 mm |
| Front Center | 575 mm | 581 mm | 591 mm | 607 mm | 617 mm |
| Rake | 45 mm | 45 mm | 46 mm | 45 mm | 45 mm |
| Trail | 63 mm | 57 mm | 52 mm | 53 mm | 50 mm |
| Stack | 513 mm | 537 mm | 561 mm | 587 mm | 611 mm |
| Reach | 373 mm | 381 mm | 388 mm | 397 mm | 405 mm |
| Top Tube Length | 521 mm | 541 mm | 561 mm | 583 mm | 599 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 464 mm | 492 mm | 522 mm | 549 mm | 579 mm |
| Head Tube Angle | 72 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 117 mm | 140 mm | 164 mm | 194 mm | 218 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 409 mm | 409 mm |
| Wheelbase | 971 mm | 978 mm | 988 mm | 1008 mm | 1018 mm |
| Bottom Bracket Drop | 68 mm | 66 mm | 66 mm | 63 mm | 63 mm |
| Standover Height | 764 mm | 791 mm | 819 mm | 849 mm | 876 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Fenix Disc – Shimano 105 – 2×12 is a Ridley Fenix model. Ridley released 114 bikes variations of this model so far. You can easily view all of the Ridley Fenix bikes models from 2023, here.
Model range prices
Ridley Fenix SLA Disc – Shimano Tiagra 2x10sp 2023 is the most affordable bike of this model and has a price of 2011$. On the other hand, Ridley Fenix SLiC – Shimano Ultegra DI2 2x12sp 2023, is the most expensive and costs 7087$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Endurance bikes
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Ridley released this model in 2023, its price was 2752$. Comparing the average cost of an Endurance bike to this one, you will see that Fenix Disc – Shimano 105 – 2×12 price is 17.31% more expensive.
Fenix Disc – Shimano 105 – 2×12 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on Fenix Disc – Shimano 105 – 2×12 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Fenix Disc – Shimano 105 – 2×12 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Fenix Disc – Shimano 105 – 2×12 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
