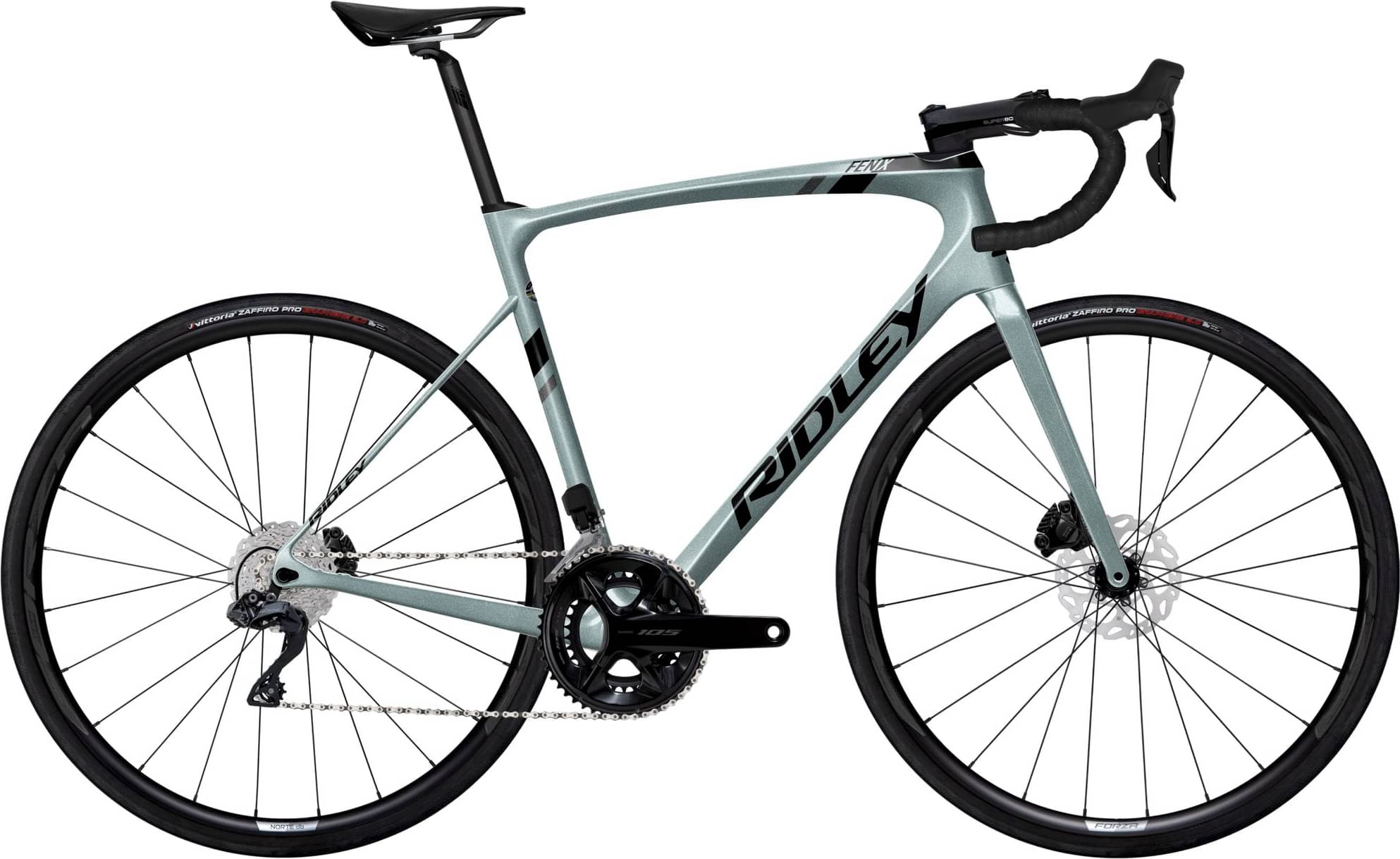

Ridley Fenix Disc – Shimano 105 DI2 // 2x12s 2024
2024 Road
Estimate price |
4,013$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fenix, 24T UD Carbon, Diamond Shape tubing, TA 12x142mm
Suspension Fork
Fenix, 30T-24T HM UD Carbon, TA 12x100 mm
Drivetrain
Rear Derailleur
Shimano 105 DI2 // 2x12s
Front Derailleur
Shimano 105 DI2 // 2x12s
Shift Levers
Shimano 105 DI2 // 2x12s
Cassette
Shimano 105// 12s // 11-34
Crank
Shimano 105 // 50/34 // 172mm
Pedals
Not included **
Wheels
Rims
Front: 4ZA Norte DB F 20TL -3BF V2- NO STI, Rear: 4ZA Norte DB R 20TL -3BF V2 SHI- NO STI
Brakes
Brakes
Flat Mount
Cockpit
Stem
Forza Stratos // 110 mm // Black Glossy
Handlebar
Forza Stratos, Compact // 420mm (cc) // Black Glossy
Seat
Saddle
Selle Italia Model X // Black
Seatpost
Forza Stratos // 15mm Offset // 350mm // 27,2mm // Black Glossy
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.371 mm | 1.405 mm | 1.441 mm | 1.474 mm | 1.504 mm |
| Bottom Bracket Height | 268 mm | 270 mm | 270 mm | 273 mm | 273 mm |
| Front Center | 575 mm | 581 mm | 591 mm | 607 mm | 617 mm |
| Rake | 45 mm | 45 mm | 46 mm | 45 mm | 45 mm |
| Trail | 63 mm | 57 mm | 52 mm | 53 mm | 50 mm |
| Stack | 517 mm | 541 mm | 565 mm | 591 mm | 615 mm |
| Reach | 377 mm | 385 mm | 392 mm | 401 mm | 409 mm |
| Top Tube Length | 525 mm | 545 mm | 565 mm | 587 mm | 603 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 464 mm | 492 mm | 522 mm | 549 mm | 579 mm |
| Head Tube Angle | 72 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 117 mm | 140 mm | 164 mm | 194 mm | 218 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 413 mm | 413 mm |
| Wheelbase | 975 mm | 982 mm | 992 mm | 1012 mm | 1022 mm |
| Bottom Bracket Drop | 68 mm | 66 mm | 66 mm | 63 mm | 63 mm |
| Standover Height | 768 mm | 795 mm | 823 mm | 853 mm | 880 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
Fenix Disc – Shimano 105 DI2 // 2x12s is a Ridley Fenix model. 114 bikes variations carry this model name so far. Take a sneak peek at all Ridley Fenix bikes models from 2024, by clicking here.
Model range prices
Ridley Fenix SLA Disc – FFS 2024 is the most affordable bike of this model and has a price of 2011$. On the other hand, Ridley Fenix SLiC – Shimano Ultegra DI2 2x12sp 2024, is the most expensive and costs 6352$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Endurance bikes average price
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Ridley released this model in 2024, its price was 3705$. If we compare this with the average Endurance bike cost we notice that the price is 57.93% more expensive.
Fenix Disc – Shimano 105 DI2 // 2x12s components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the Fenix Disc – Shimano 105 DI2 // 2x12s bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ridley Fenix Disc – Shimano 105 DI2 // 2x12s is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
