Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105, FSA -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fenix SL, 30T-24T HM Unidirectional carbon
Suspension Fork
Fenix SL, 30T-24T HM Unidirectional carbon
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano 105
Cassette
Shimano 105, 11-28
Crank
FSA Gossamer Pro 50/34
Chain
KMC X11
Wheels
Rims
4ZA RC31
Tires
Continental Ultrasport Folding 25mm
Brakes
Brakes
4ZA Cirrus
Brake Levers
Shimano 105
Cockpit
Stem
4ZA Stratos
Handlebar
4ZA Stratos E2
Seat
Saddle
4ZA Stratos Dynamic Comfort
Seatpost
4ZA Stratos, 27,2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.42 mm | 1.42 mm | 1.47 mm | 1.52 mm | 1.56 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 270 mm | 270 mm | 273 mm | 273 mm |
| Front Center | 575 mm | 575 mm | 581 mm | 591 mm | 605 mm | 614 mm |
| Rake | 45 mm | 45 mm | 46 mm | 43 mm | 45 mm | 45 mm |
| Trail | 64 mm | 63 mm | 56 mm | 56 mm | 53 mm | 50 mm |
| Stack | 500 mm | 520 mm | 535 mm | 566 mm | 592 mm | 617 mm |
| Reach | 372 mm | 367 mm | 377 mm | 385 mm | 389 mm | 396 mm |
| Top Tube Length | 508 mm | 518 mm | 538 mm | 558 mm | 578 mm | 593 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71.8 ° | 72 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 107 mm | 127 mm | 142 mm | 172 mm | 202 mm | 227 mm |
| Chainstay Length | 403 mm | 403 mm | 403 mm | 403 mm | 406 mm | 406 mm |
| Wheelbase | 968 mm | 968 mm | 975 mm | 985 mm | 1003 mm | 1012 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 66 mm | 66 mm | 63 mm | 63 mm |
| Standover Height | 733 mm | 758 mm | 782 mm | 813 mm | 843 mm | 871 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

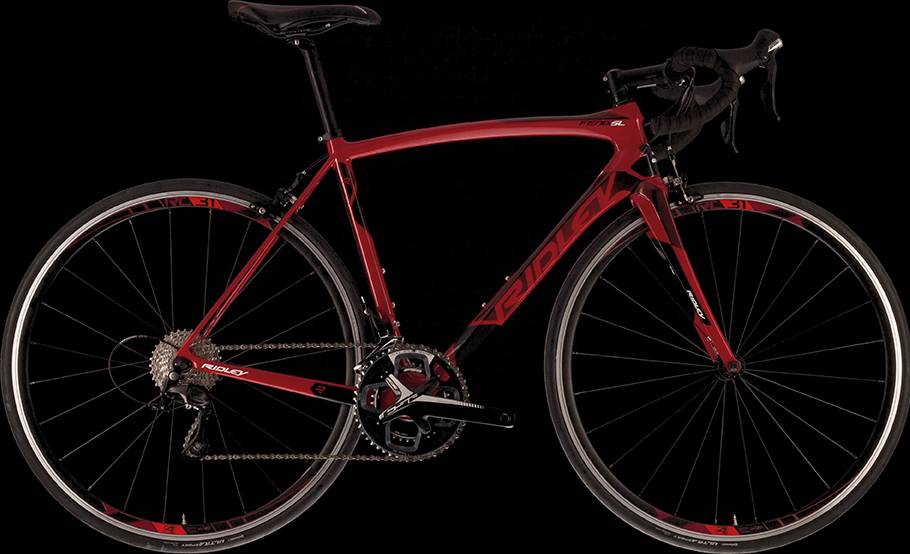

Fenix SL 105 MIX is part of the Ridley Fenix model. 107 bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Endurance bikes
According to our math, the average price for a trustworthy Endurance bike is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Fenix SL 105 MIX components
Fork material
Fenix SL 105 MIX has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Fenix SL 105 MIX model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Fenix SL 105 MIX comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
